2007 Kawasaki Mule 610 4x4 Chassis Electrical Equipment Diagram

← All diagrams

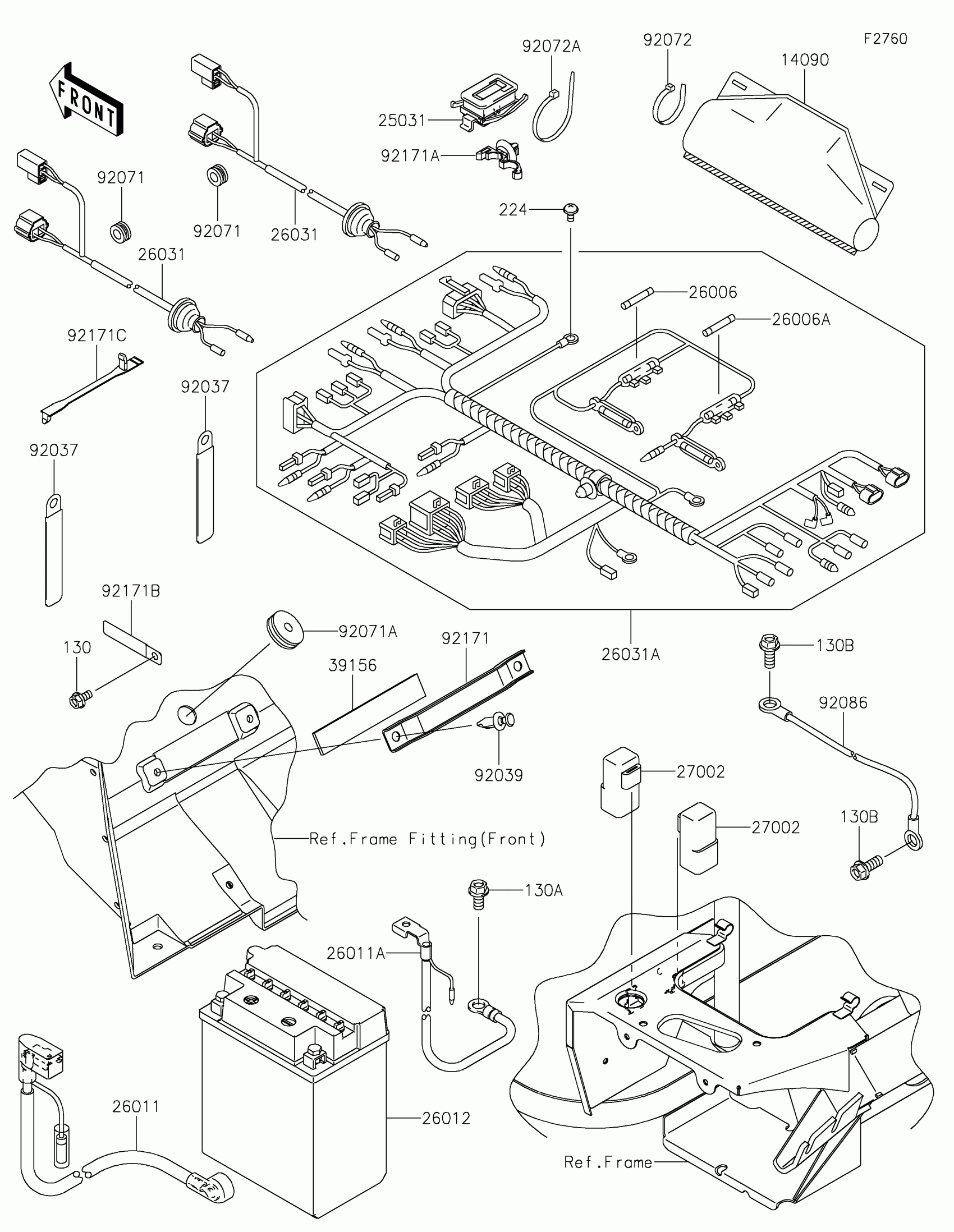

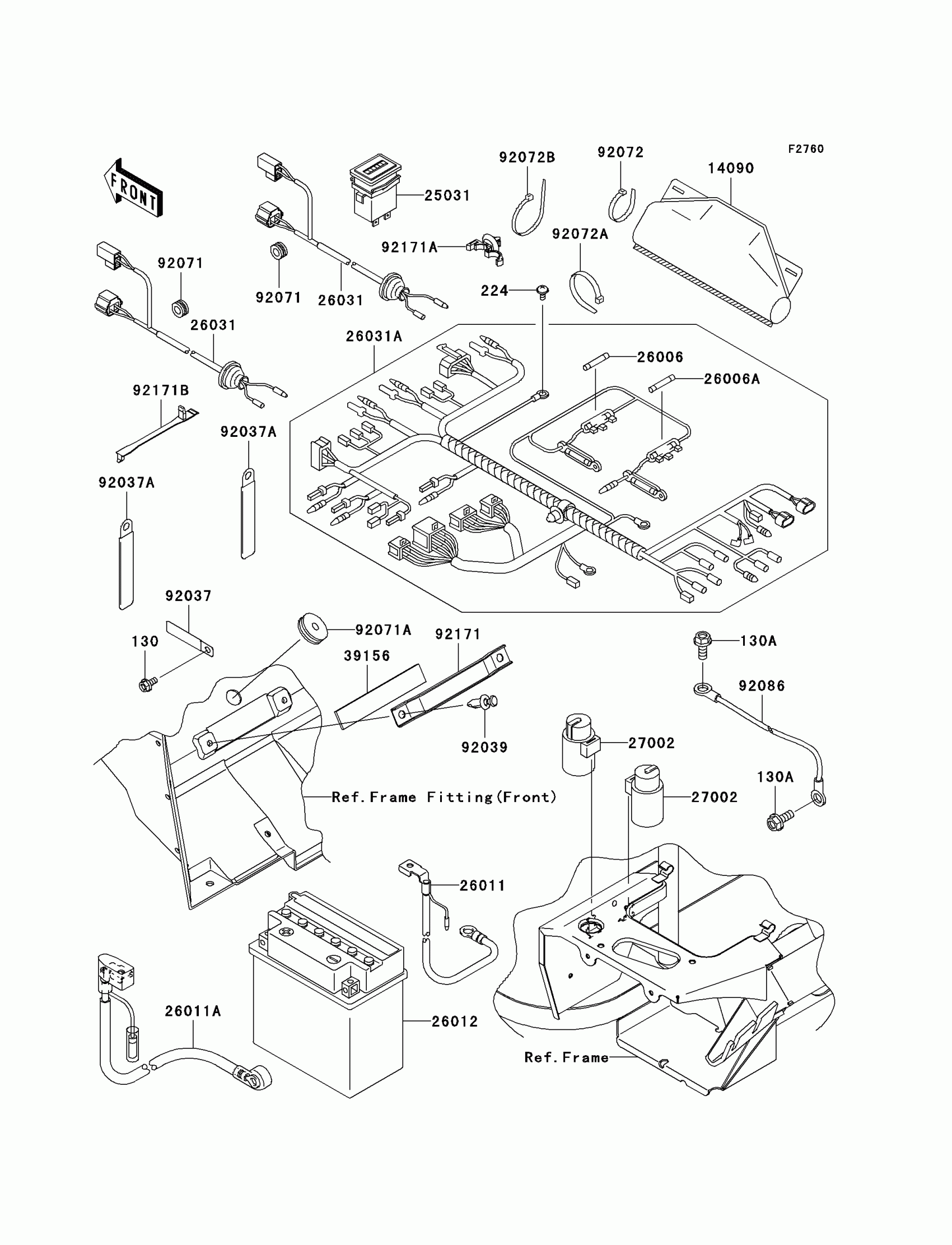

Find the part on the Chassis Electrical Equipment diagram for your 2007 Kawasaki Mule 610 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 610 4x4 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130D0612

1
Out of stock

130A

BOLT-FLANGED,8X20

130J0820

1
Out of stock

224

SCREW-PAN-WP-CROS

224B0508

1
Out of stock

14090

COVER,COUPLER

14090-1331

1

$8.31

In stock

25031

METER-ASSY,HOUR

25031-7505

1

$113.59

In stock

26006

1

$4.05

In stock

26006A

FUSE,30A,L=32

26006-1065

1

$3.94

In stock

26011

1

$47.95

In stock

26011A

1

$77.32

In stock

26012

1

$102.11

In stock

26031

HARNESS,HEAD LAMP

26031-0155

1

$48.13

In stock

26031A

HARNESS,MAIN

26031-0304

1

$249.34

In stock

27002

RELAY-ASSY

27002-1051

1

$49.55

In stock

39156

PAD

39156-0063

1

$3.92

In stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,HARNESS,L=100

92037-1636

1

$7.56

In stock

92039

RIVET

92039-1229

1

$0.80

In stock

92071

GROMMET

92071-1128

1

$4.78

In stock

92071A

GROMMET

92071-1136

1

$7.29

In stock

92072

BAND,L=123

92072-030

1

$3.97

In stock

92072A

BAND,L=149

92072-031

1

$3.97

In stock

92072B

BAND,L=188

92072-1239

1

$1.51

In stock

92086

WIRE

92086-1054

1

$24.59

In stock

92171

CLAMP

92171-0301

1

$4.20

In stock

92171A

CLAMP

92171-0453

1

$3.12

In stock

92171B

CLAMP

92171-1365

1

$3.76

In stock
