2020 Kawasaki Mule 4000 Trans™ Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

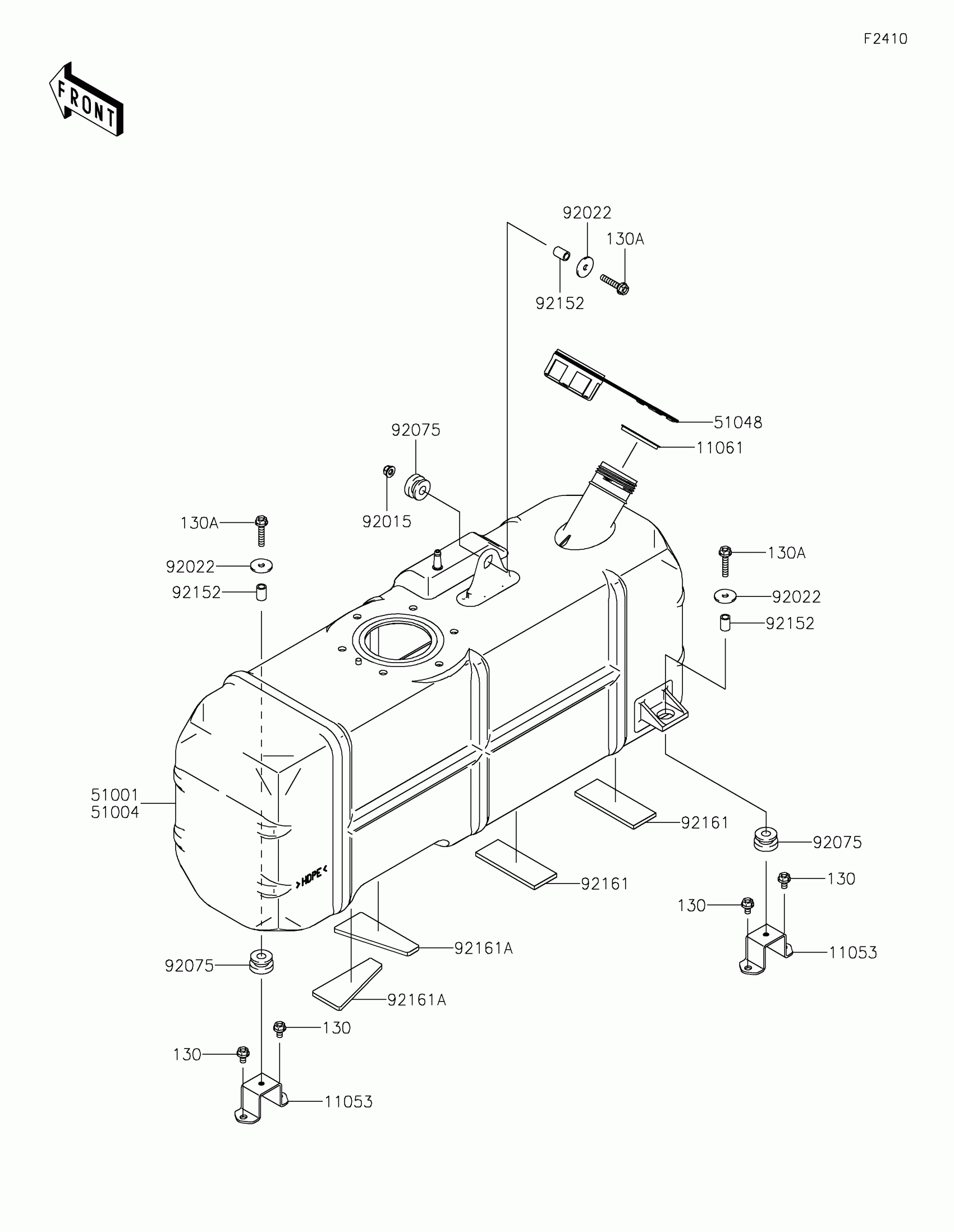

2020 Kawasaki Mule 4000 Trans™ Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET

11053-7512

1

$7.27

In stock

11061

1

$4.63

In stock

51001

TANK-COMP-FUEL

51001-0763

1

$424.96

In stock

51004

TANK-FUEL

51004-0029

1

$424.96

In stock

51048

CAP-ASSY-TANK,FUEL

51048-0026

1

$10.07

In stock

92015

1

$3.43

In stock

92022

WASHER,6.5X24X2

92022-1690

1

$3.12

In stock

92075

DAMPER

92075-1787

1

$5.21

In stock

92152

COLLAR,7.02X10.32X15.3

92152-7511

1
Out of stock

92161

DAMPER,92X35X4.76

92161-0813

1

$3.88

In stock

92161A

DAMPER,92X19X4.76

92161-0814

1

$3.32

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X30

130BA0630

1

$1.31

In stock
