2020 Kawasaki Mule 4000 Trans™ Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

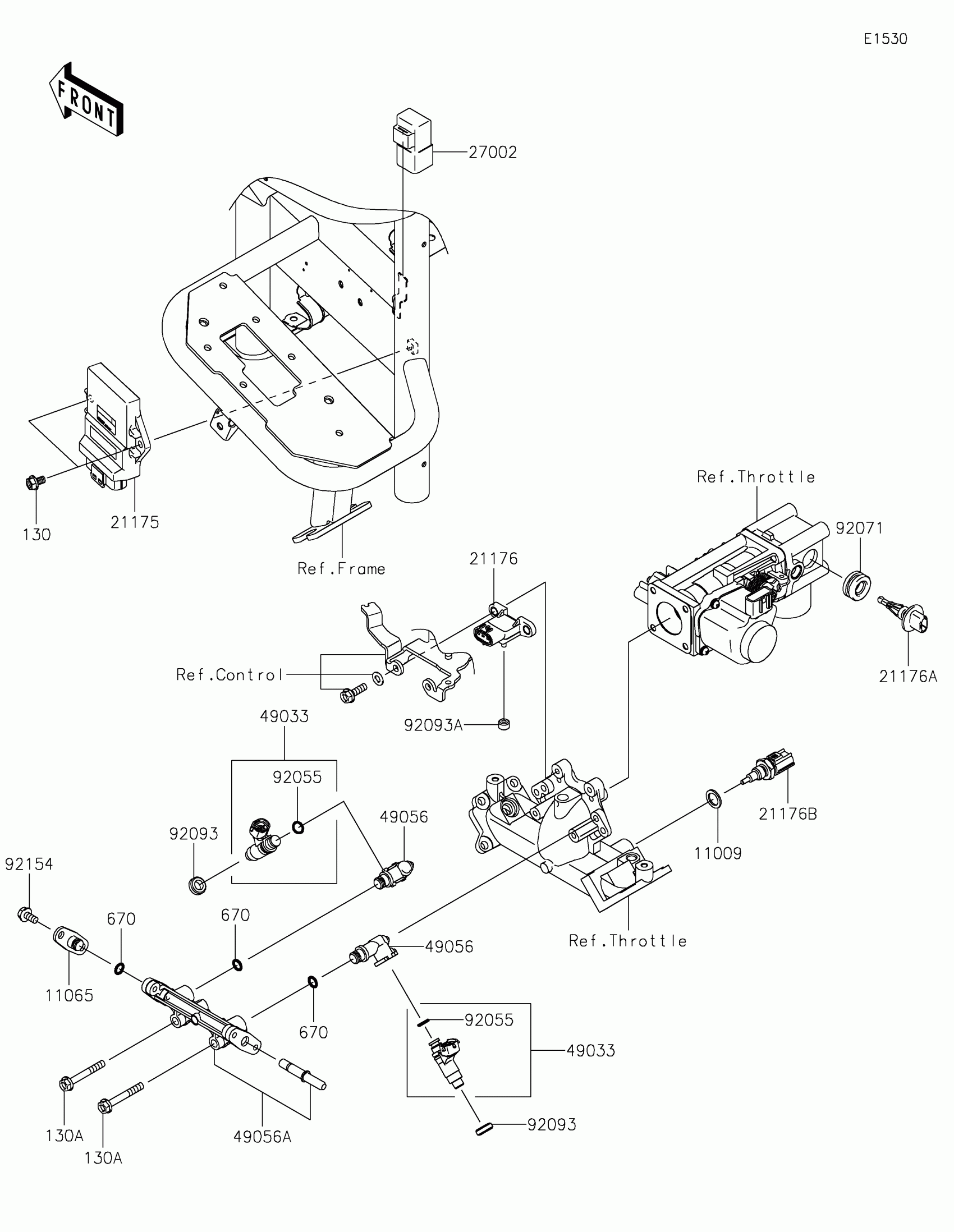

2020 Kawasaki Mule 4000 Trans™ Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,12.5X18X1.5

11009-1376

1

$1.56

In stock

11065

CAP

11065-2129

1

$15.63

In stock

21175

1

$821.86

In stock

21176

SENSOR,PRESSURE

21176-1095

1

$142.06

In stock

21176A

SENSOR,AIR TEMP

21176-2106

1

$22.55

In stock

21176B

SENSOR

21176-2111

1

$36.16

In stock

27002

RELAY-ASSY

27002-1088

1

$38.14

In stock

49033

NOZZLE-INJECTION

49033-2060

1

$141.07

In stock

49056

PIPE-INJECTION

49056-2062

1

$22.64

In stock

49056A

PIPE-INJECTION

49056-6003

1

$113.74

In stock

92055

1

$1.64

In stock

92071

GROMMET

92071-2140

1

$3.51

In stock

92093

SEAL

92093-2119

1

$2.02

In stock

92093A

SEAL

92093-2127

1

$1.39

In stock

92154

BOLT,6X12

92154-2938

1

$0.63

In stock

130

BOLT-FLANGED,6X16

130BB0616

1

$1.73

In stock

130A

BOLT-FLANGED,6X45

130CA0645

1

$1.29

In stock

670

O RING,8MM

670E1508

1

$1.53

In stock
