2020 Kawasaki Mule 4000 Trans™ Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

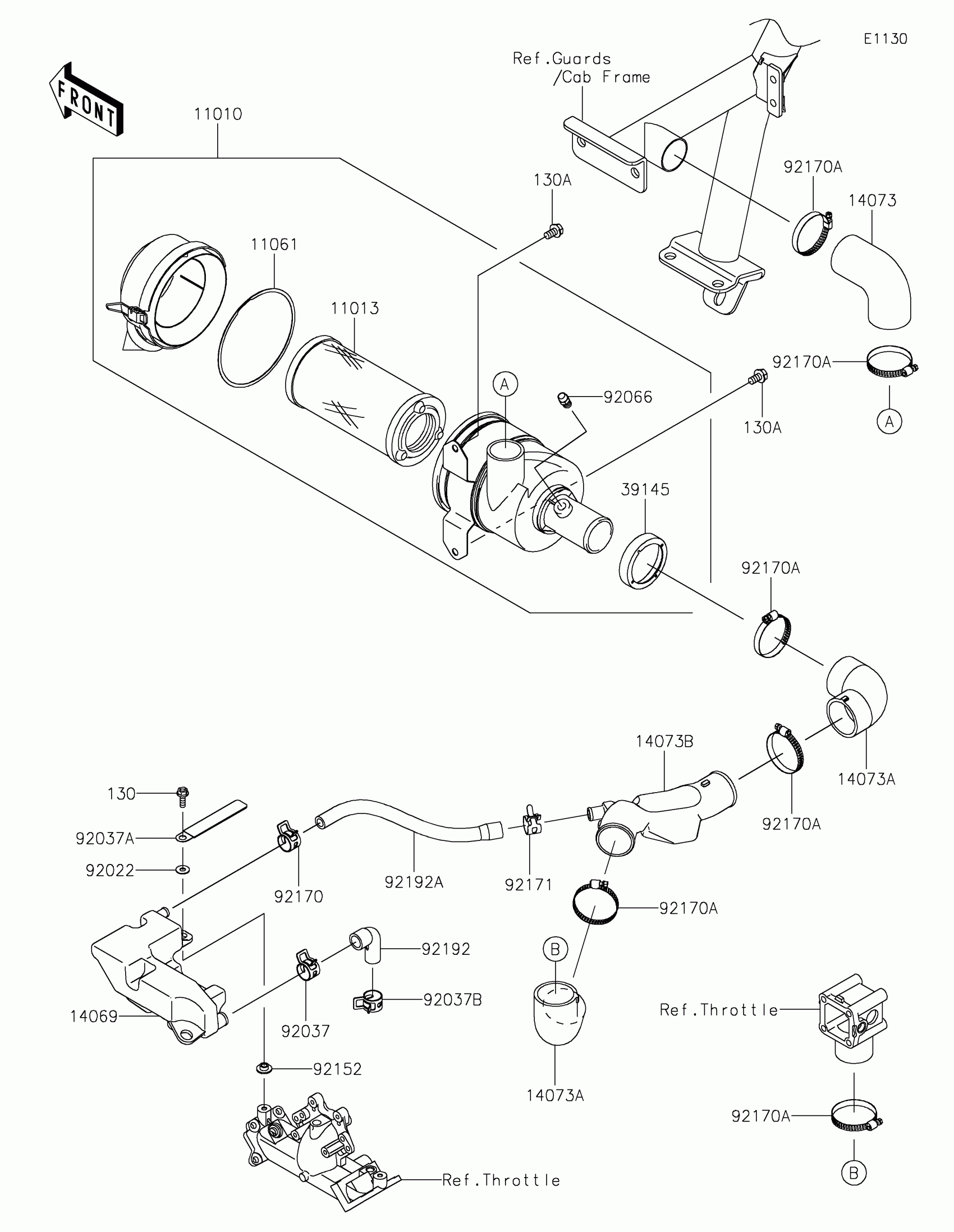

2020 Kawasaki Mule 4000 Trans™ Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-0885

1

$95.47

In stock

11013

ELEMENT-AIR FILTER

11013-1290

1

$26.36

In stock

11061

GASKET,AIR FILTER

11061-1078

1

$13.61

In stock

14069

BREATHER

14069-0018

1

$21.73

In stock

14073

DUCT,RR BAR-A/C

14073-0235

1

$8.37

In stock

14073A

DUCT

14073-0773

1

$10.73

In stock

14073B

DUCT

14073-0784

1

$18.47

In stock

39145

TRIM-SEAL

39145-1133

1

$6.11

In stock

92022

WASHER,6.5X16X1.0

92022-1093

1

$1.73

In stock

92037

CLAMP,HOSE CLIP

92037-1460

1

$8.57

In stock

92037A

CLAMP,HARNESS,L=100

92037-1636

1

$7.56

In stock

92037B

CLAMP

92037-1678

1

$9.80

In stock

92066

PLUG

92066-0914

1

$4.03

In stock

92152

COLLAR

92152-2069

1
Out of stock

92170

CLAMP

92170-1491

1

$5.93

In stock

92170A

CLAMP

92170-1674

1

$9.32

In stock

92171

CLAMP,18.8MM

92171-2056

1

$1.27

In stock

92192

TUBE,CRANKCASE-BREATHER

92192-1285

1
Out of stock

92192A

TUBE,BREATHER-INTAKE DUCT

92192-1855

1
Out of stock

130

BOLT-FLANGED,6X18

130BA0618

1

$1.36

In stock

130A

BOLT-FLANGED,8X14

130BB0814

1

$3.69

In stock
