2020 Kawasaki Mule 4000 Trans™ Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

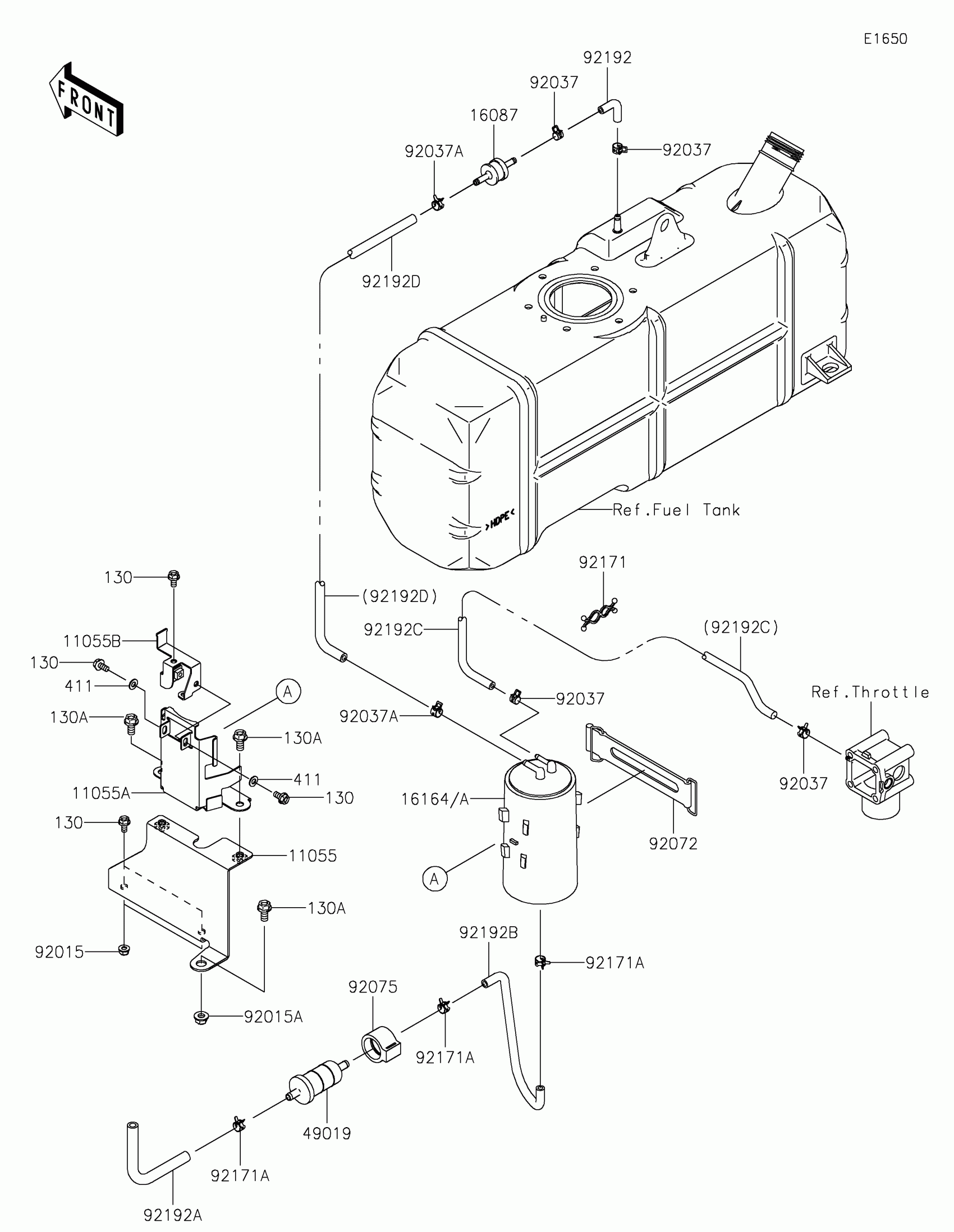

2020 Kawasaki Mule 4000 Trans™ Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,LWR

11055-0262

1
Out of stock

11055A

BRACKET,UPP

11055-0263

1
Out of stock

11055B

BRACKET,UPP

11055-1126

1
Out of stock

16087

VALVE-CHECK

16087-0008

1
Out of stock

16164

CANISTER

16164-0013

1
Out of stock

16164A

CANISTER

16164-0018

1
Out of stock

49019

FILTER-FUEL

49019-0032

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1339

1
Out of stock

92015A

NUT,8MM

92015-1432

1
Out of stock

92037

CLAMP,TUBE

92037-1461

1
Out of stock

92037A

CLAMP,TUBE

92037-1505

1
Out of stock

92072

BAND,L=168

92072-1306

1
Out of stock

92075

DAMPER,FUEL FILTER

92075-1853

1
Out of stock

92171

CLAMP

92171-0476

1
Out of stock

92171A

CLAMP

92171-0515

1
Out of stock

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

1
Out of stock

92192A

TUBE,FILTER-AIR

92192-0609

1
Out of stock

92192B

TUBE,CANISTER-FUEL FILTER

92192-0620

1
Out of stock

92192C

TUBE,4.5X9.5X2000

92192-0908

1
Out of stock

92192D

TUBE

92192-1160

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1
Out of stock

130A

BOLT-FLANGED,8X16

130BA0816

1
Out of stock

411

WASHER-PLAIN,6MM

411AA0600

1
Out of stock
