2020 Kawasaki Mule 4000 Trans™ Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

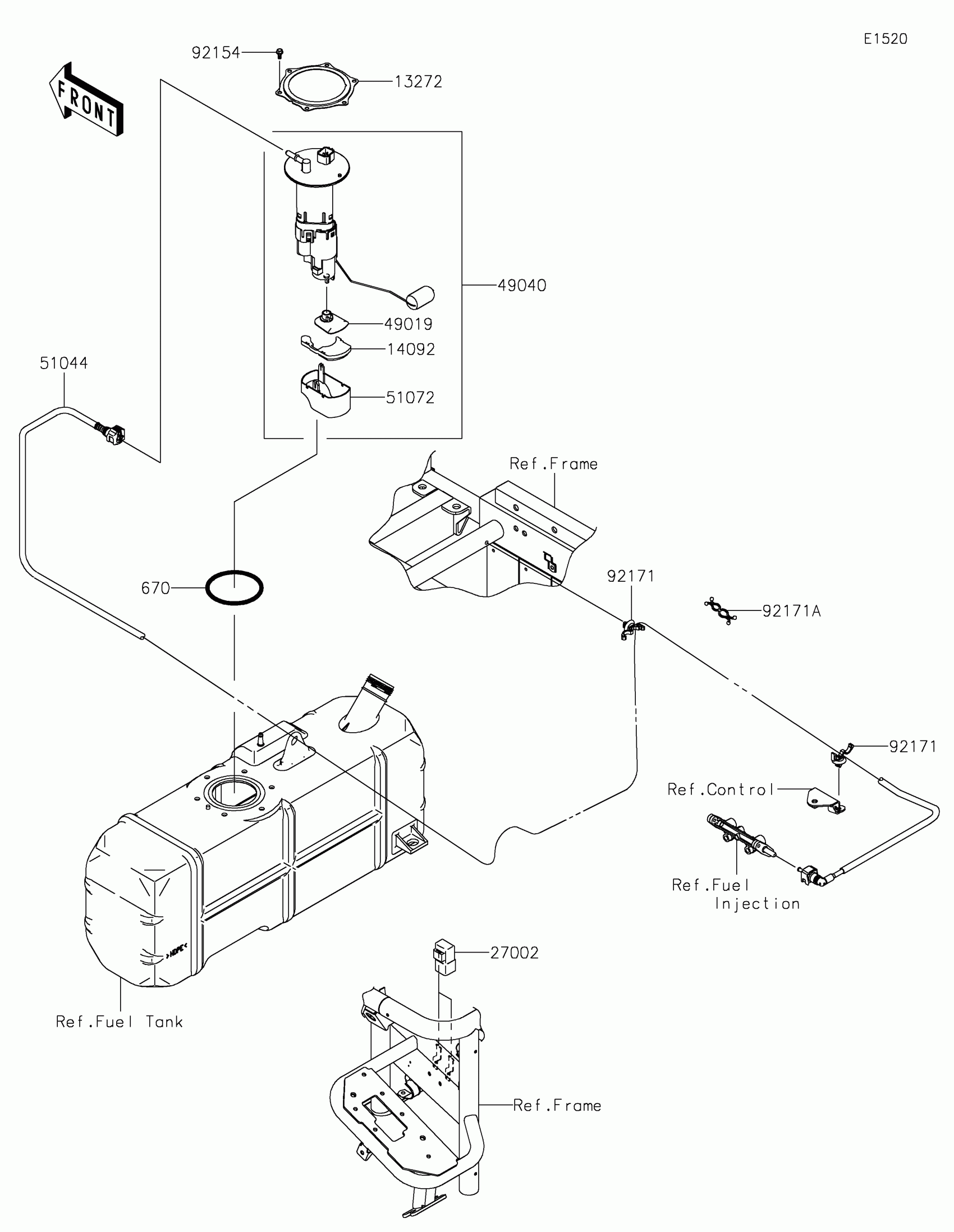

2020 Kawasaki Mule 4000 Trans™ Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-1398

1

$5.93

In stock

14092

COVER

14092-1044

1

$31.19

In stock

27002

RELAY-ASSY

27002-1088

1

$38.14

In stock

49019

FILTER-FUEL

49019-0013

1

$17.10

In stock

49040

PUMP-FUEL

49040-0718

1

$807.43

In stock

51044

TUBE-ASSY,FUEL

51044-0897

1

$275.34

In stock

51072

CHAMBER-FUEL

51072-0003

1

$46.89

In stock

92154

BOLT,FUEL PUMP

92154-1326

1

$0.93

In stock

92171

CLAMP

92171-0453

1

$3.12

In stock

92171A

CLAMP

92171-0476

1

$3.51

In stock

670

O RING

670E5090

1

$27.83

In stock
