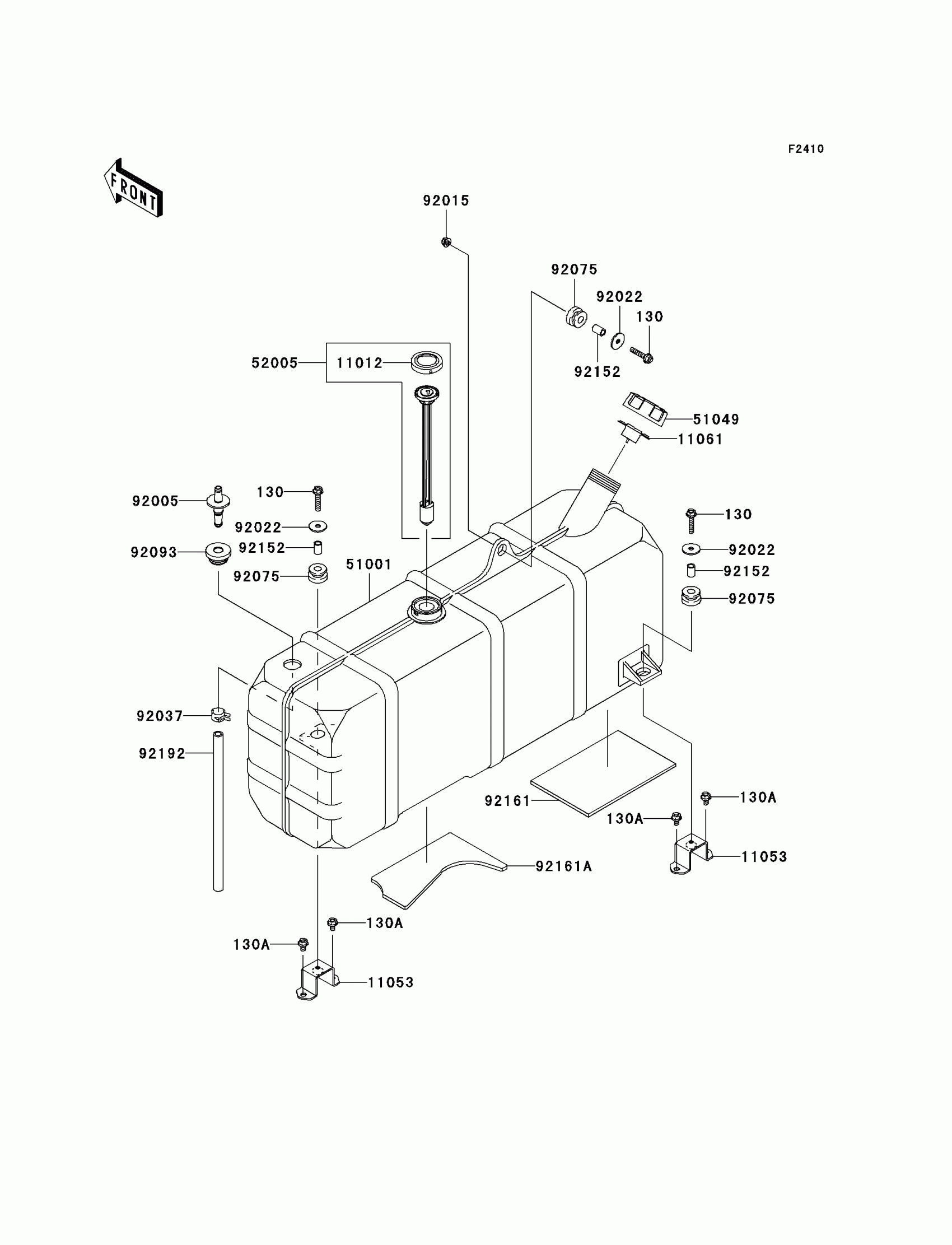

Kawasaki Mule 3010 Trans4x4 Fuel Tank Diagram

Description

Price

130

BOLT-FLANGED,6X30

130G0630

Unavailable

130A

BOLT-FLANGED

130J0610

Unavailable

11012

CAP,FUEL GAUGE

11012-1627

$17.07

11053

BRACKET

11053-7512

$9.16

11061

GASKET,FUEL TANK CAP

11061-7503

Unavailable

51001

TANK-COMP-FUEL

51001-7503

$466.22

51049

CAP-TANK,FUEL

51049-7002

Unavailable

52005

GAUGE,FUEL

52005-7501

Unavailable

92005

FITTING

92005-7501

$9.76

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,6.5X24X2

92022-1690

$3.92

92037

CLAMP,HOSE CLIP

92037-1181

$3.36

92075

DAMPER

92075-1787

$6.57

92093

SEAL

92093-7502

$8.12

92152

COLLAR,7.02X10.32X15.3

92152-7511

$1.70

92161

DAMPER,92X35X4.76

92161-7508

$8.78

92161A

DAMPER,92X19X4.76

92161-7513

$8.38

92192

TUBE,8X13X260

92192-7503

$5.86
