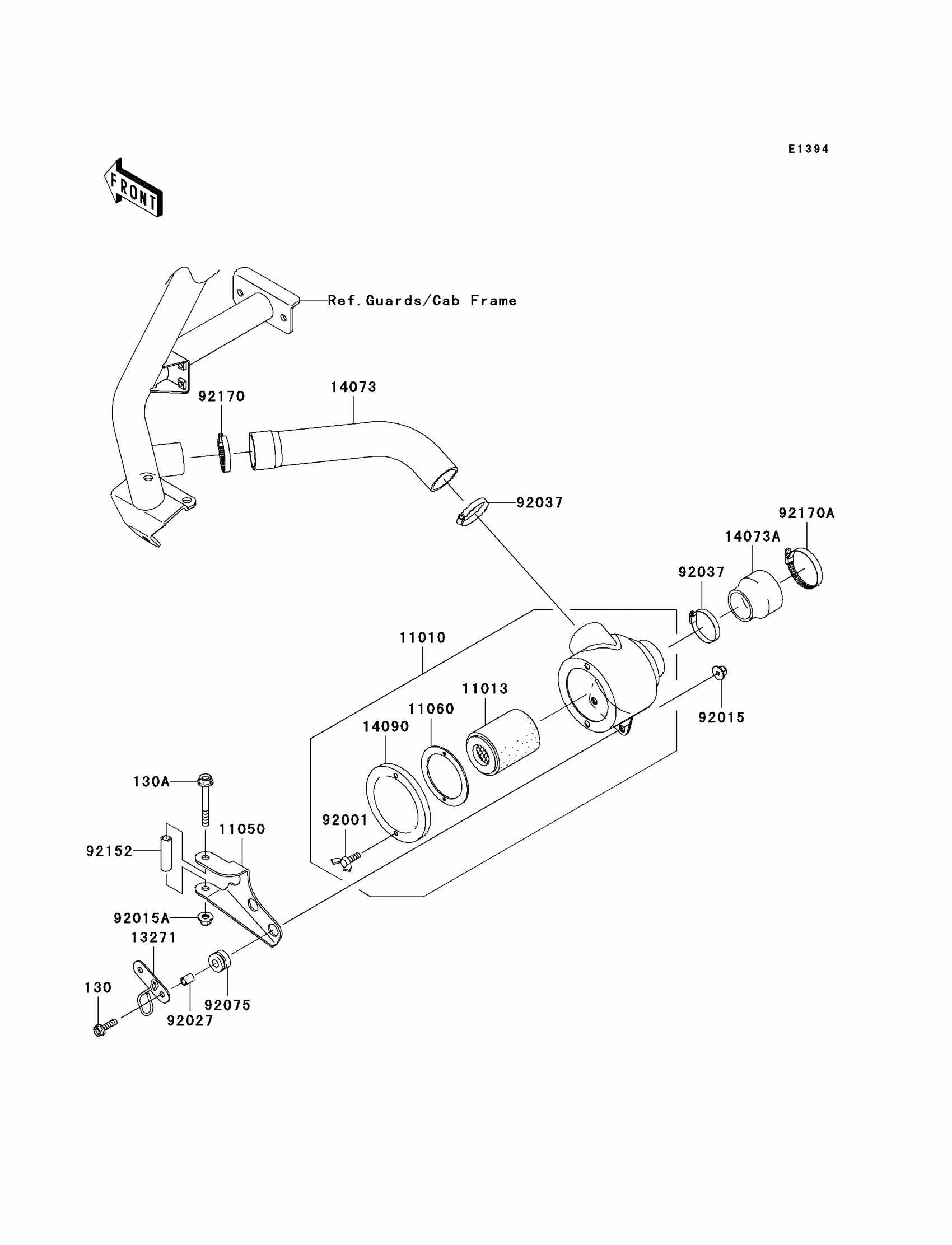

Kawasaki Mule 3010 Trans4x4 Air Cleaner-Belt Converter Diagram

Description

Price

130

BOLT-FLANGED,8X30,BLA

130C0830

Unavailable

130A

BOLT-FLANGED,10X75

130J1075

Unavailable

11010

FILTER-ASSY-AIR

11010-0062

$201.72

11013

ELEMENT-AIR FILTER

11013-1263

$19.08

11050

BRACKET

11050-1404

$25.02

11060

GASKET,AIR FILTER CASE

11060-1975

$8.38

13271

PLATE

13271-7587

$5.00

14073

DUCT

14073-1699

$53.33

14073A

DUCT

14073-1700

$20.04

14090

COVER,AIR FILTER

14090-1766

$12.03

92001

BOLT,WING,6X15

92001-1703

$2.75

92015

NUT,8MM

92015-1432

$5.21

92015A

NUT,LOCK,10MM

92015-1597

$4.37

92027

COLLAR

92027-1081

$9.29

92037

CLAMP

92037-3009

$3.25

92075

DAMPER

92075-1736

$5.21

92152

COLLAR,10.5X16X50

92152-0083

$7.56

92170

CLAMP

92170-1674

$9.32

92170A

CLAMP

92170-1764

$9.09
