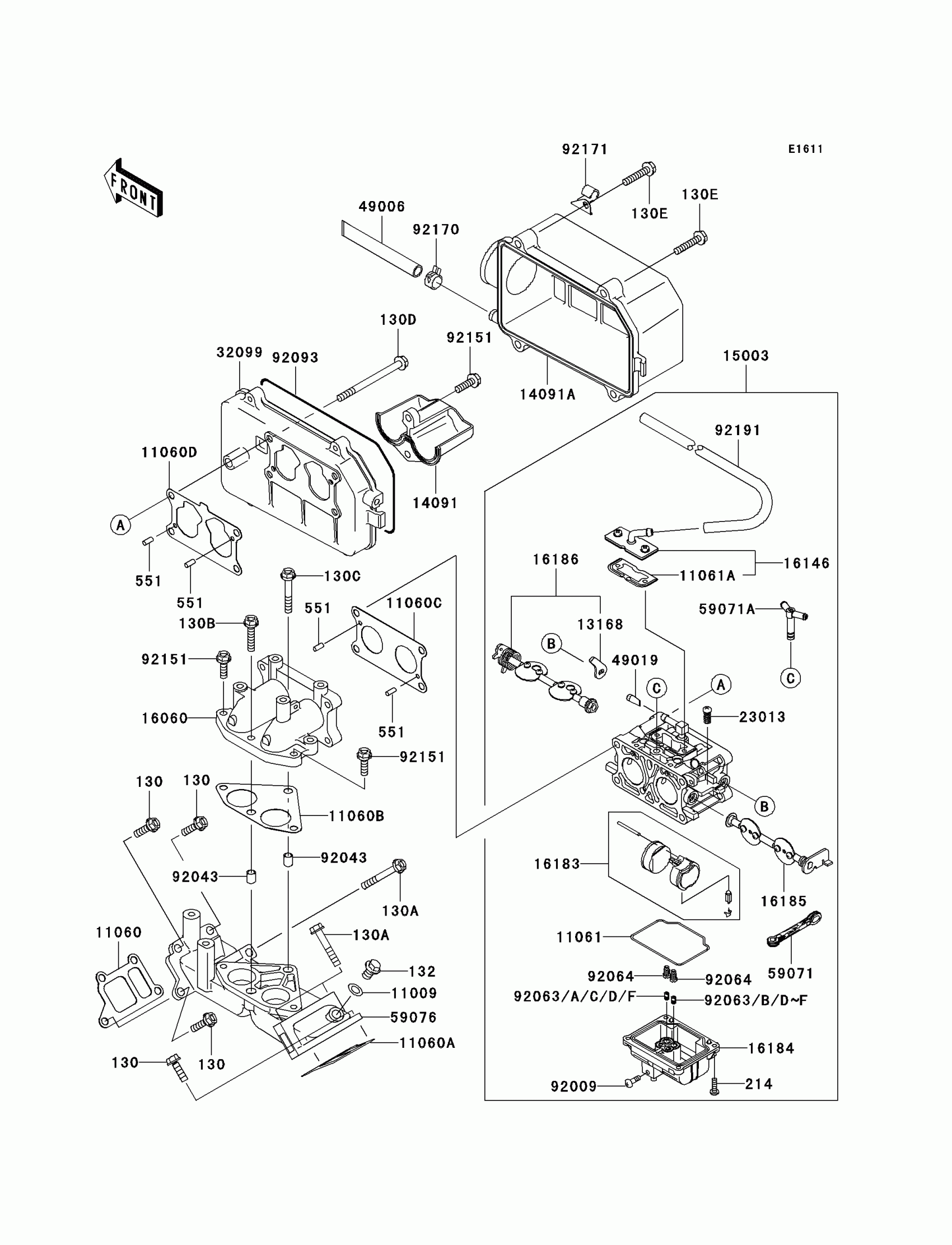

Find the part on the Carburetor diagram for your 2007 Kawasaki Mule 3010 Trans4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 3010 Trans4x4 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET

11009-3028

1
Out of stock

11060

GASKET,INTAKE MANIFOLD

11060-2087

1
Out of stock

11060A

GASKET,INTAKE MANIFOLD

11060-2088

1
Out of stock

11060B

GASKET

11060-2477

1
Out of stock

11060C

GASKET

11060-2478

1
Out of stock

11060D

GASKET

11060-2479

1
Out of stock

11061

GASKET,CHAMBER

11061-2090

1
Out of stock

11061A

GASKET,COVER

11061-2091

1
Out of stock

13168

LEVER

13168-2473

1
Out of stock

14091

COVER

14091-2067

1
Out of stock

14091A

COVER

14091-2068

1
Out of stock

15003

CARBURETOR-ASSY

15003-2766

1
Out of stock

16060

PIPE-INTAKE

16060-2195

1
Out of stock

16146

COVER-ASSY

16146-2229

1
Out of stock

16183

FLOAT-ASSY

16183-2006

1
Out of stock

16184

CHAMBER-ASSY-FLOAT

16184-2006

1
Out of stock

16185

VALVE-ASSY-THROTTLE

16185-2038

1
Out of stock

16186

VALVE-ASSY-CHOKE

16186-2037

1
Out of stock

23013

SCREW-ASSY

23013-2061

1
Out of stock

32099

CASE

32099-2374

1
Out of stock

49006

BOOT

49006-2053

1
Out of stock

49019

FILTER-FUEL

49019-1093

1
Out of stock

59071

JOINT

59071-2138

1
Out of stock

59071A

JOINT

59071-2139

1
Out of stock

59076

MANIFOLD-INTAKE

59076-2069

1
Out of stock

92009

SCREW,DRAIN

92009-2015

1
Out of stock

92043

PIN,DOWEL,8X10

92043-1302

1
Out of stock

92063

JET-MAIN,#86.3

92063-2363

—
Out of stock

92063A

JET-MAIN,#85

92063-2376

—
Out of stock

92063B

JET-MAIN,#92.5

92063-2402

1
Out of stock

92063C

JET-MAIN,#90

92063-2403

1
Out of stock

92063D

JET-MAIN,#87.5

92063-2405

—
Out of stock

92063E

JET-MAIN,#91.3

92063-2407

—
Out of stock

92063F

JET-MAIN,#88.8

92063-2413

—
Out of stock

92064

JET-PILOT

92064-2132

1
Out of stock

130

BOLT,FLANGED,6X20

130B0620

1
Out of stock

130A

BOLT-FLANGED,6X45

130B0645

1
Out of stock

130B

BOLT-FLANGED,6X30

130G0630

1
Out of stock

130C

BOLT-FLANGED,6X40

130G0640

1
Out of stock

130D

BOLT-FLANGED

130G0680

1
Out of stock

130E

BOLT-FLANGED,6X30,BLACK

130J0630

1
Out of stock

132

BOLT-FLANGED-SMALL

132L0812

1
Out of stock

214

SCREW-PAN+-

214B0414

1
Out of stock

551

PIN-DOWEL,4X10

551A0410

1
Out of stock

92093

SEAL

92093-2115

1
Out of stock

92151

BOLT,6X20

92151-2138

1
Out of stock

92170

CLAMP

92170-2082

1

$0.83

In stock

92171

CLAMP

92171-2066

1
Out of stock

92191

TUBE

92191-2140

1
Out of stock
