2007 Kawasaki Mule 3010 Trans4x4 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2007 Kawasaki Mule 3010 Trans4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

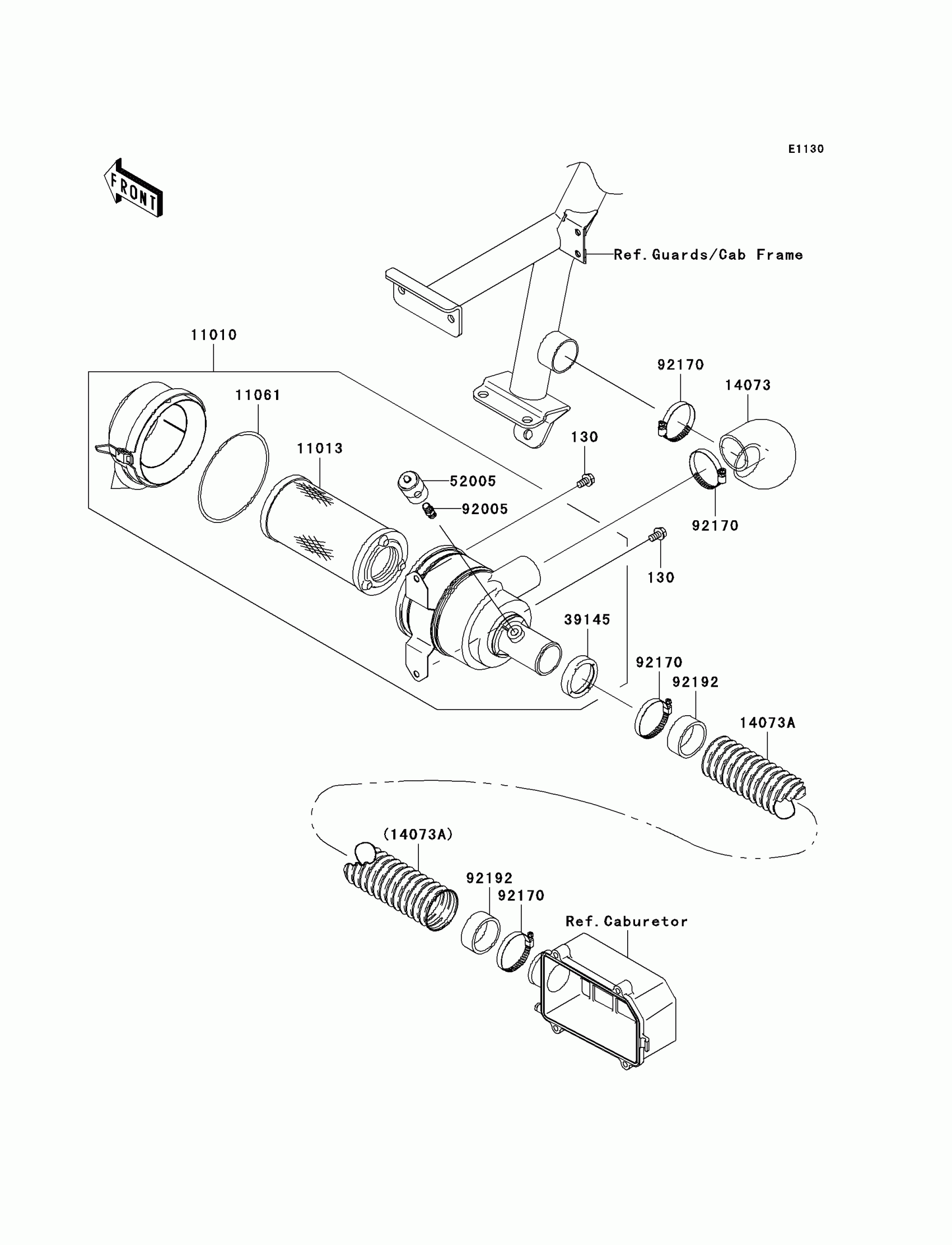

2007 Kawasaki Mule 3010 Trans4x4 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X14

130J0814

1
Out of stock

11010

FILTER-ASSY-AIR

11010-7501

1

$152.06

In stock

11013

ELEMENT-AIR FILTER

11013-1290

1

$26.36

In stock

11061

GASKET,AIR FILTER

11061-1078

1

$13.61

In stock

14073

DUCT,BAR-AIR FILTER

14073-7501

1

$12.42

In stock

14073A

DUCT

14073-7504

1
Out of stock

39145

TRIM-SEAL

39145-1133

1

$6.11

In stock

52005

GAUGE,AIR

52005-7502

1

$45.70

In stock

92005

FITTING,AIR FILTER

92005-1386

1
Out of stock

92170

CLAMP

92170-1674

1

$9.32

In stock

92192

TUBE

92192-7506

1
Out of stock
