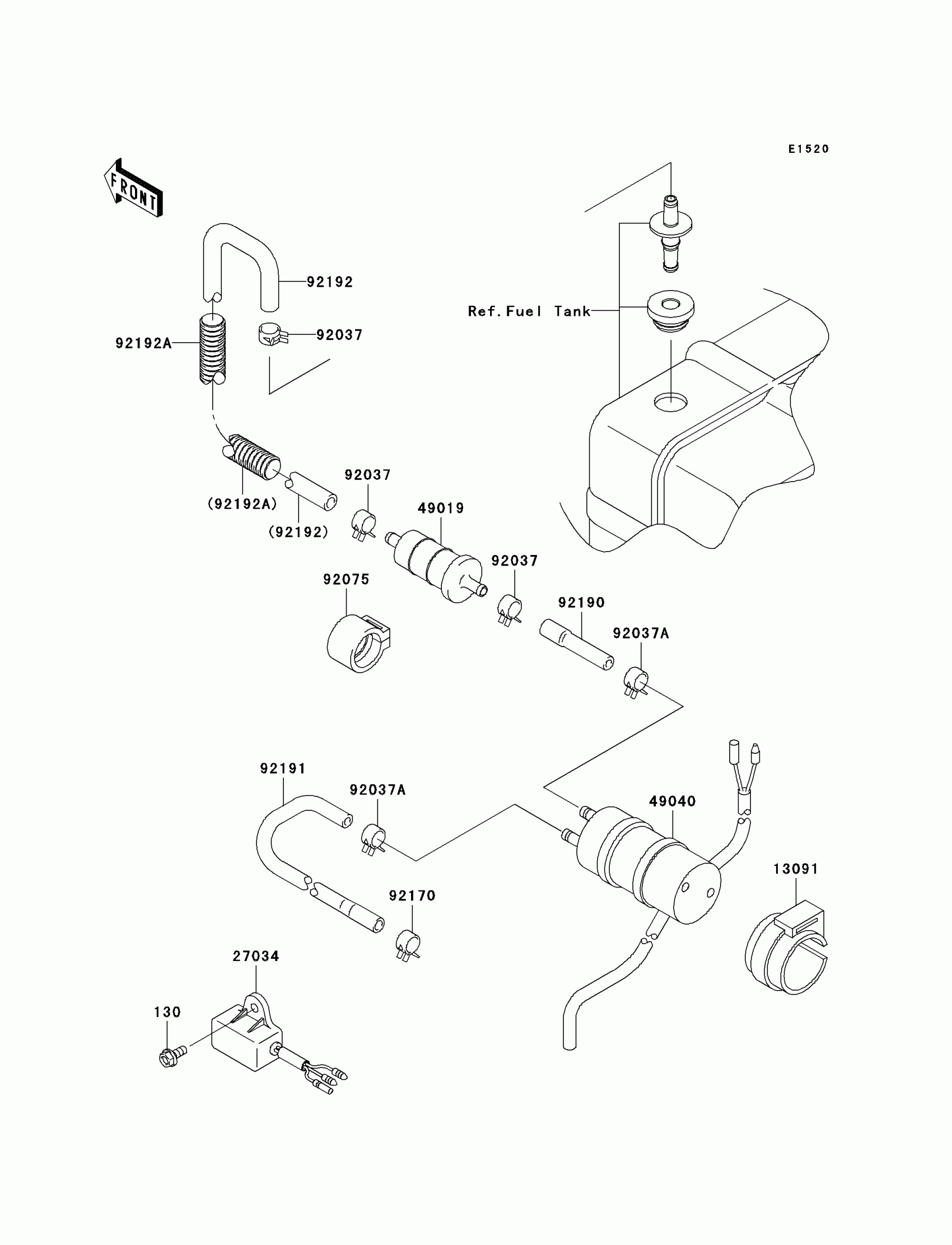

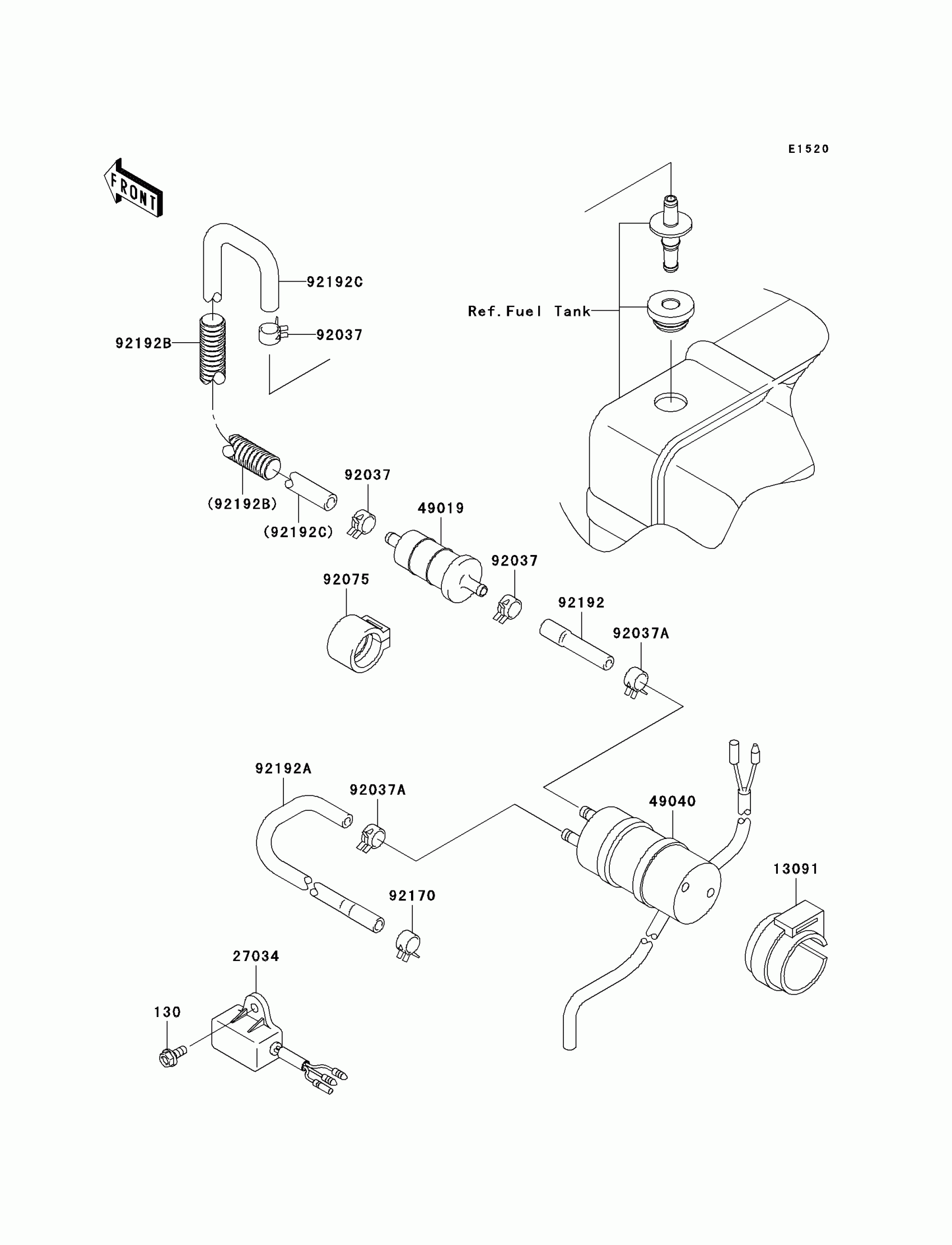

Kawasaki Mule 3010 Trans4x4 Fuel Pump Diagram

Description

Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

13091

HOLDER

13091-1512

$15.74

27034

RELAY,FUEL CUT

27034-1053

$134.22

49019

FILTER-FUEL

49019-1055

$18.30

49040

PUMP-FUEL

49040-1055

$289.95

92037

CLAMP,HOSE CLIP

92037-1181

$3.36

92037A

CLAMP,TUBE

92037-1505

$4.76

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92170

CLAMP

92170-2082

$1.49

92190

TUBE,FILTER-PUMP

92190-1437

$7.49

92191

TUBE

92191-1479

$9.57

92192

TUBE

92192-7504

$42.97

92192A

TUBE

92192-7505

$30.08
