2021 Yamaha MT10 (MT10ML) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 2021 Yamaha MT10 (MT10ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

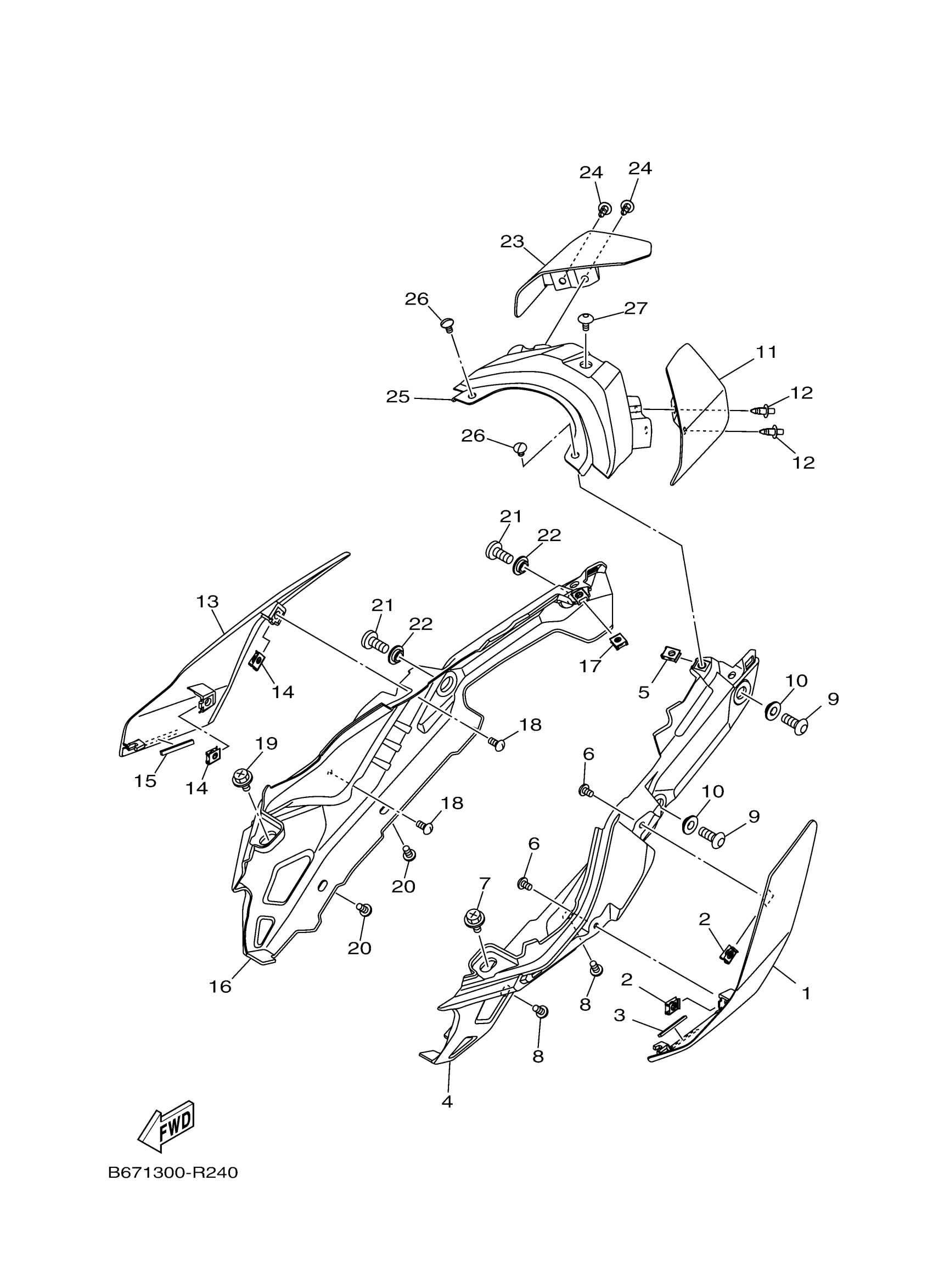

2021 Yamaha MT10 (MT10ML) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

B67-21711-00-P0

—

$64.54

In stock

2

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

3

DAMPER 4

2C0-28247-00-00

1

$2.55

In stock

4

COVER, SIDE 3

B67-21731-01-00

1
Out of stock

5

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

6

SCREW, TRUSS TAP.

97707-50012-00

1

$3.15

In stock

7

BOLT

90109-06202-00

1

$2.46

In stock

8

RIVET

90269-07007-00

1

$3.37

In stock

9

BOLT

90111-08010-00

1

$5.14

In stock

10

COLLAR

90387-08079-00

1
Out of stock

11

COVER, TAIL 1

B67-2471K-00-00

1

$12.40

In stock

12

RIVET

90269-06008-00

1

$7.40

In stock

13

COVER, SIDE 2

B67-21721-00-P0

—

$64.54

In stock

14

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

15

DAMPER 4

2C0-28247-00-00

1

$2.55

In stock

16

COVER, SIDE 4

B67-21741-01-00

—
Out of stock

17

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

18

SCREW, TRUSS TAP.

97707-50012-00

1

$3.15

In stock

19

BOLT

90109-06202-00

1

$2.46

In stock

20

RIVET

90269-07007-00

1

$3.37

In stock

21

BOLT

90111-08010-00

1

$5.14

In stock

22

COLLAR

90387-08079-00

1
Out of stock

23

COVER, TAIL 2

B67-2472K-00-00

—

$11.37

In stock

24

RIVET

90269-06008-00

1

$7.40

In stock

25

COVER, SIDE 5

B67-2171E-01-00

—
Out of stock

26

SCREW, TRUSS TAP.

97707-50012-00

1

$3.15

In stock

27

BOLT,HEX. SOCKET BUTTON

90111-05045-00

—

$6.29

In stock
