2021 Yamaha MT10 (MT10ML) Cowling 2 Diagram

← All diagrams

Find the part on the Cowling 2 diagram for your 2021 Yamaha MT10 (MT10ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

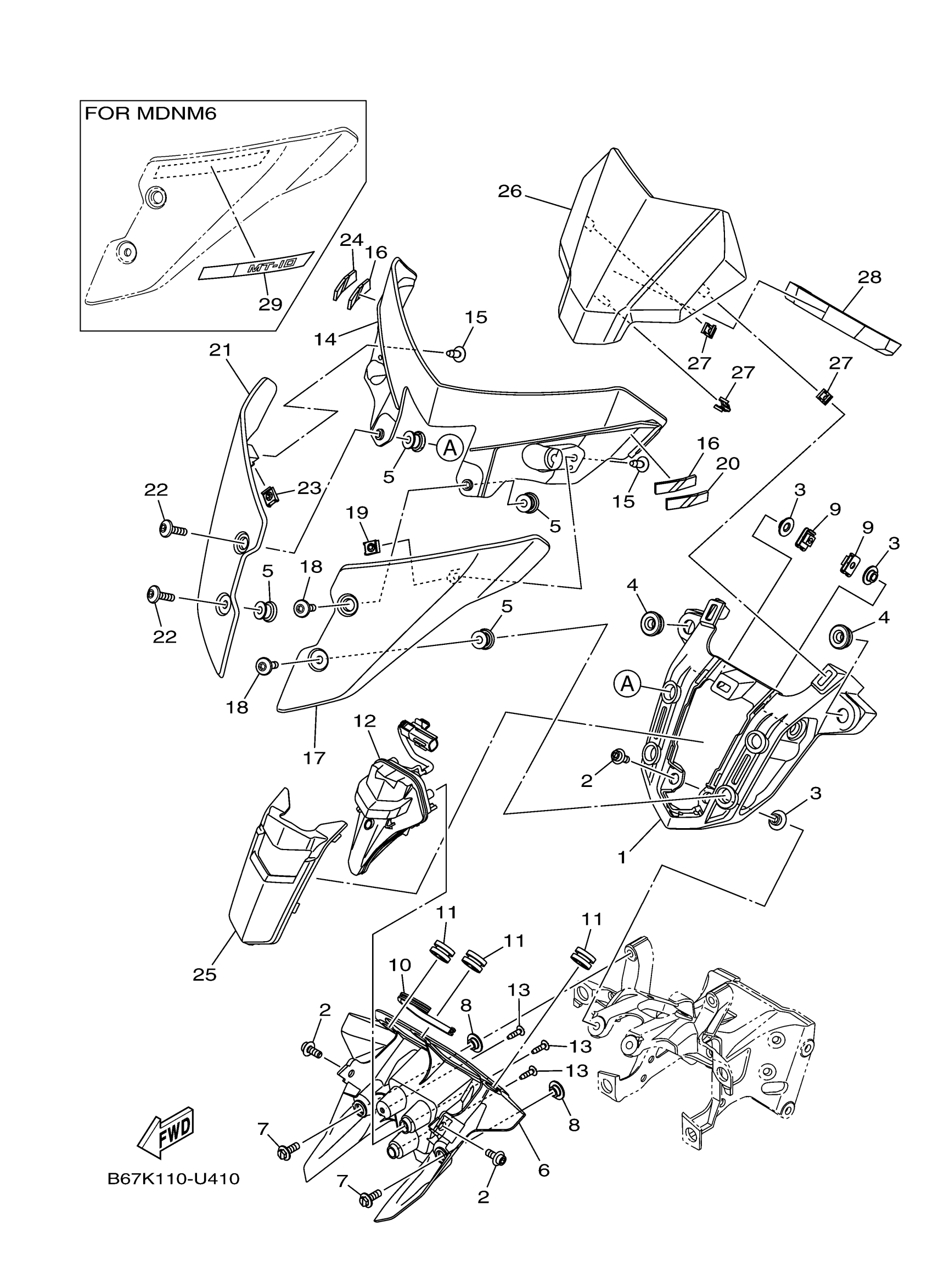

2021 Yamaha MT10 (MT10ML) Cowling 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAY 2

B67-28357-00-00

1

$41.80

In stock

2

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

1

$6.26

In stock

3

COLLAR

90387-06170-00

1

$6.25

In stock

4

GROMMET

90480-13014-00

1

$6.85

In stock

5

NUT

90179-06072-00

1

$5.14

In stock

6

PANEL, INNER 5

B67-2836R-00-00

1

$39.29

In stock

7

BOLT, FLANGE

90105-06170-00

1

$4.23

In stock

8

COLLAR

90387-06170-00

1

$6.25

In stock

9

NUT, SPRING

90183-060A6-00

1

$4.17

In stock

10

MOLD, SEAT

2D1-24785-00-00

1
Out of stock

11

DAMPER

4XV-83513-00-00

1

$6.42

In stock

12

PILOT LIGHT ASSY 1

B67-84301-00-00

1

$239.23

In stock

13

SCREW, TRUSS TAP.

97707-40016-00

1

$6.18

In stock

14

COVER, UPPER 1

B67-23121-00-00

1

$63.55

In stock

15

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

16

HOOK, SIDE COVER

4XV-2411G-00-00

—

$7.25

In stock

17

COVER, OUTER 1

B67-23122-00-P0

—

$86.80

In stock

18

BOLT,HEX. SOCKET BUTTON

90111-06123-00

—

$3.13

In stock

19

NUT, SPRING(1YT)

90183-05042-00

—
Out of stock

20

HOOK, SIDE COVER

4XV-2411G-00-00

—

$7.25

In stock

21

COVER, OUTER 2

B67-23132-00-P0

—

$94.03

In stock

22

BOLT,HEX. SOCKET BUTTON

90111-06123-00

—

$3.13

In stock

23

NUT, SPRING(1YT)

90183-05042-00

—
Out of stock

24

HOOK, SIDE COVER

4XV-2411G-00-00

—

$7.25

In stock

25

PANEL

B67-28261-00-00

—

$13.35

In stock

26

COVER, METER

B67-83559-00-00

—

$15.52

In stock

27

CLIP

90468-040A0-00

—

$6.25

In stock

28

DAMPER, PLATE

90520-20003-00

—

$6.26

In stock

29

GRAPHIC, 15

B67-2832B-70-00

—

$8.17

In stock
