2021 Yamaha MT10 (MT10ML) Seat Diagram

← All diagrams

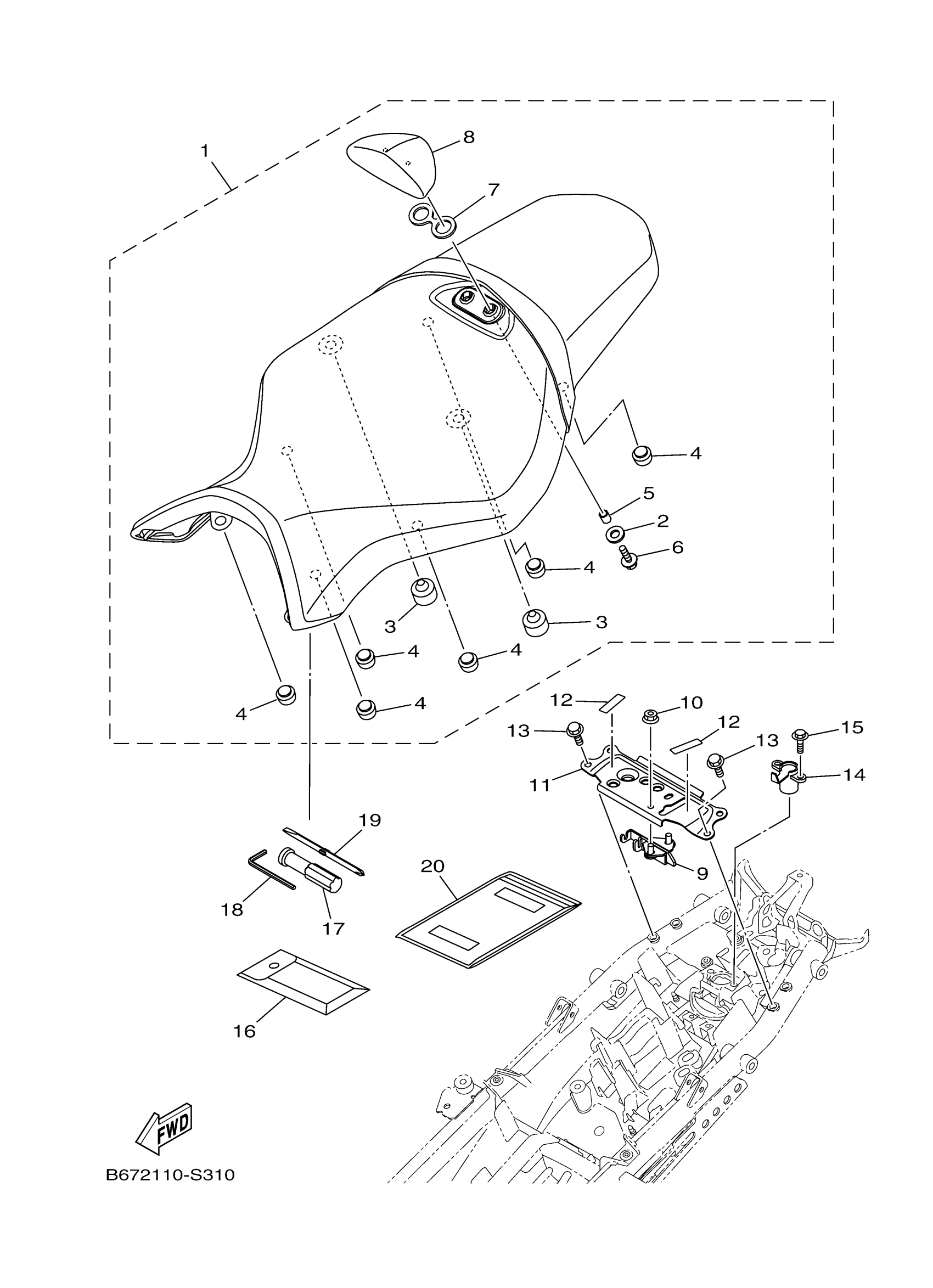

Find the part on the Seat diagram for your 2021 Yamaha MT10 (MT10ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Yamaha MT10 (MT10ML) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSY

B67-24730-03-00

—
Out of stock

2

WASHER, PLATE

90201-06085-00

1

$2.77

In stock

3

STOPPER, MAIN STAND

4GL-27114-00-00

—

$14.25

In stock

4

STOPPER, MAIN STAND

157-27114-00-00

1

$8.68

In stock

5

COLLAR

90387-067V1-00

1
Out of stock

6

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

7

SEAL 2

B67-28429-00-00

1

$2.49

In stock

8

SEAT BACK ASSY

B67-24790-01-00

—

$54.29

In stock

9

SEAT LOCK ASSY

4BP-24780-00-00

1

$91.92

In stock

10

NUT, FLANGE

95702-06500-00

1

$1.98

In stock

11

BRACKET, SEAT LOCK

B67-2478X-00-00

1

$29.72

In stock

12

SEAL 2

3P6-28228-00-00

1

$9.00

In stock

13

BOLT, FLANGE

95022-06016-00

1

$3.32

In stock

14

ROTOR SET

1RC-W2470-00-00

1

$68.62

In stock

15

BOLT, FLANGE

95022-06014-00

1

$2.63

In stock

16

TOOL KIT

B67-28100-00-00

—

$52.09

In stock

17

GRIP, DRIVER

2H7-28151-00-00

—

$5.93

In stock

18

WRENCH, HEXAGON 8

23P-28164-00-00

—

$2.72

In stock

19

DRIVER

137-28152-00-00

—

$3.45

In stock

20

POUCH

4KG-28186-11-00

—

$7.14

In stock
