2024 Yamaha MT09 (MT09RL) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2024 Yamaha MT09 (MT09RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

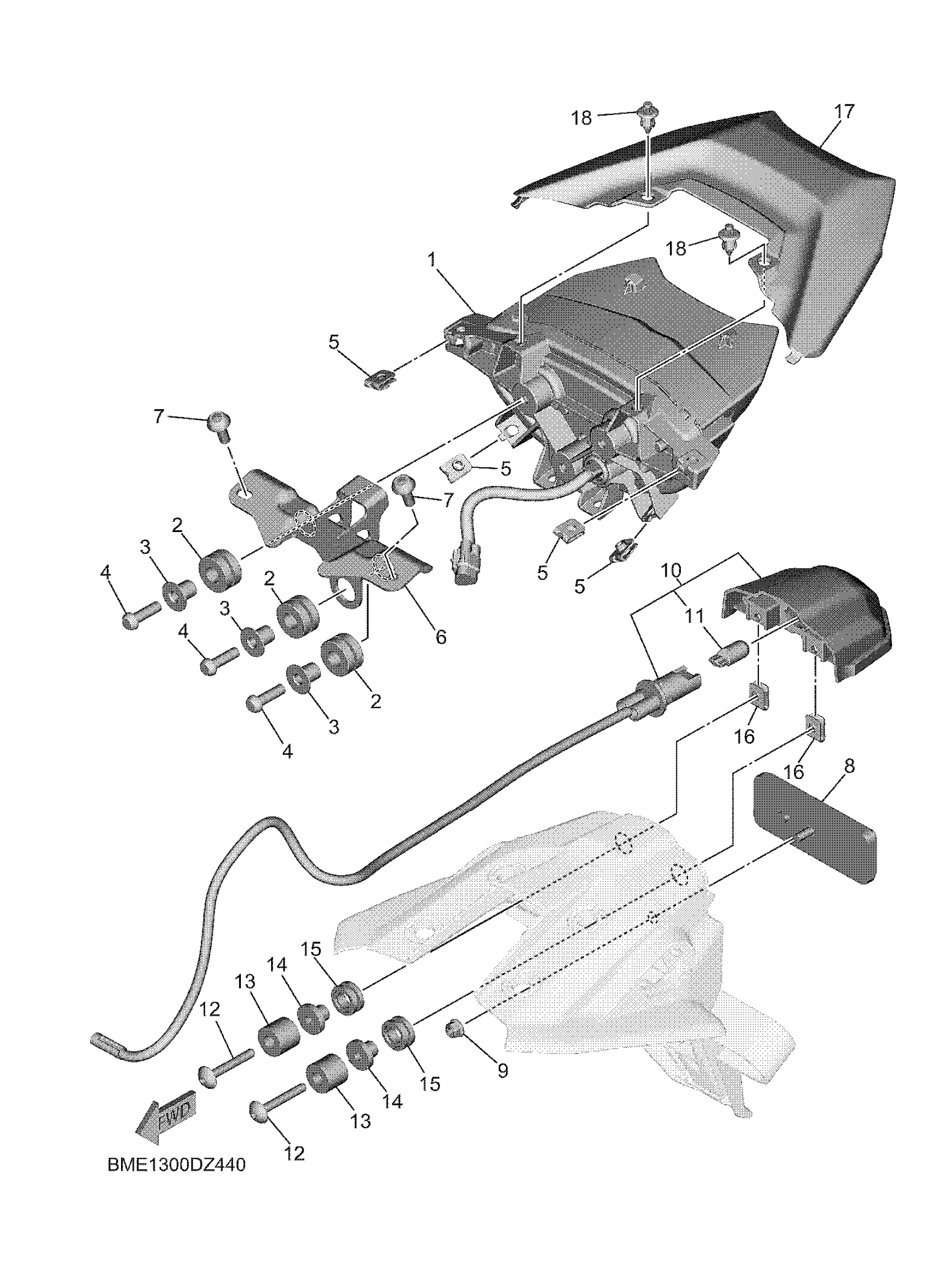

2024 Yamaha MT09 (MT09RL) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT ASSY

BME-84700-00-00

—

$316.92

In stock

2

GROMET (3X3)

90480-14229-00

1

$6.17

In stock

3

COLLAR

90387-06289-00

1

$2.62

In stock

4

BOLT, BUTTON HEAD

92012-06020-00

1

$6.28

In stock

5

NUT, SPRING

90183-050A6-00

1

$2.37

In stock

6

BRACKET, TAILLIGHT

BME-2117E-00-00

1

$42.92

In stock

7

BOLT

90111-06029-00

1

$4.71

In stock

8

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

9

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

10

LICENCE LIGHT UNIT ASSY

2PN-84745-02-00

—

$37.97

In stock

11

BULB (12V-5W)

2DP-H4347-00-00

1

$6.43

In stock

12

BOLT

90111-05006-00

1

$5.77

In stock

13

COLLAR

90387-08125-00

—

$4.40

In stock

14

COLLAR

90387-05044-00

1

$11.89

In stock

15

GROMMET

90480-14017-00

1

$4.20

In stock

16

NUT, SPRING

90183-050A6-00

1

$2.37

In stock

17

COVER, TAILLIGHT

BME-2172X-00-00

—

$24.52

In stock

18

RIVET

90269-06008-00

—

$7.40

In stock
