2024 Yamaha MT09 (MT09RL) Handle Switch & Lever Diagram

← All diagrams

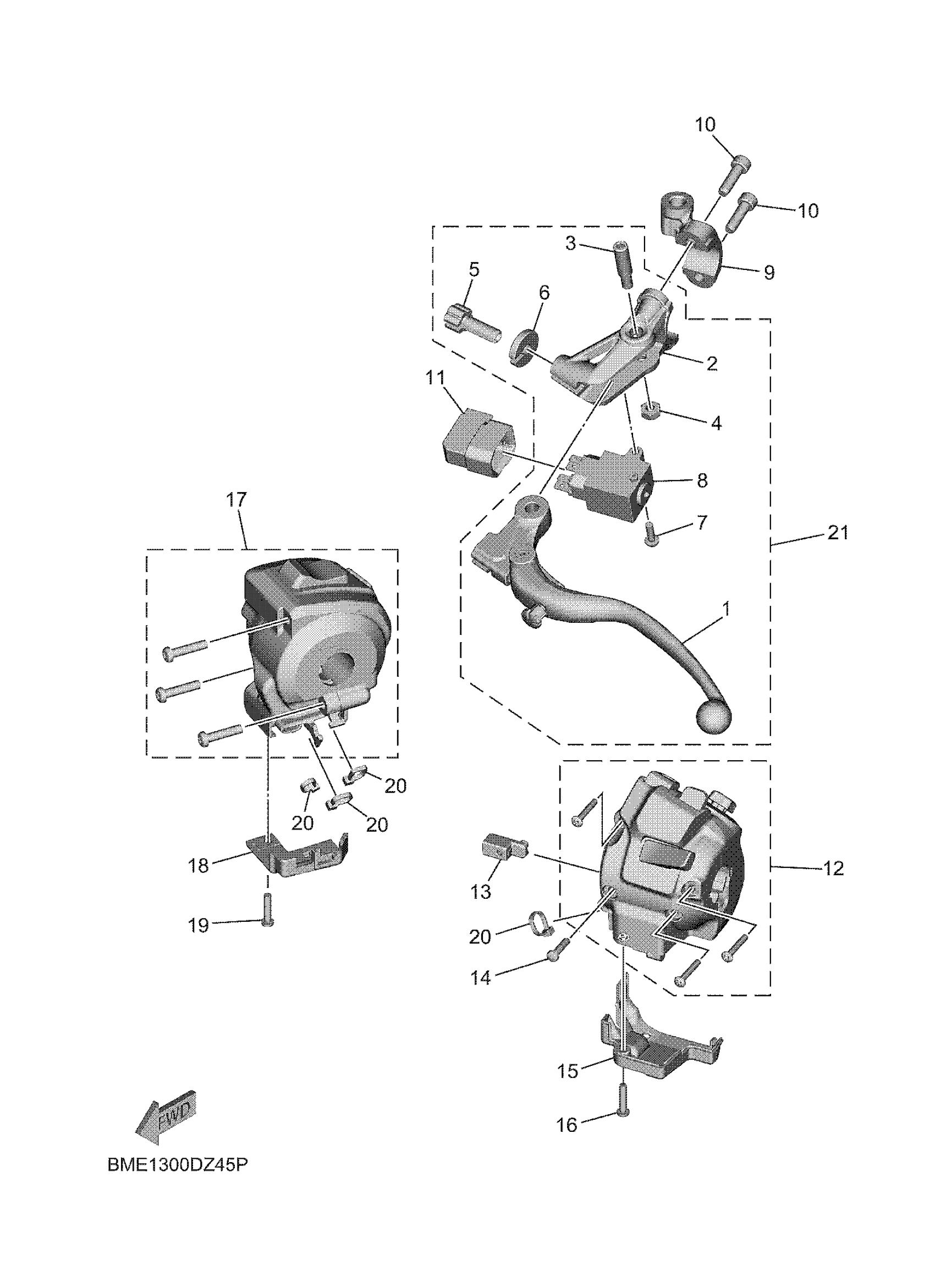

Find the part on the Handle Switch & Lever diagram for your 2024 Yamaha MT09 (MT09RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Yamaha MT09 (MT09RL) Handle Switch & Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER 2

BME-83922-00-00

1

$42.76

In stock

2

HOLDER, LEVER 1

BME-82911-10-00

1

$24.25

In stock

3

BOLT, LEVER

BME-2589F-00-00

1

$5.20

In stock

4

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

5

BOLT, AJUSTING

BME-26382-00-00

1

$19.20

In stock

6

NUT

90179-08030-00

1

$3.78

In stock

7

SCREW

BME-2632G-00-00

1

$4.77

In stock

8

SWITCH

BME-82917-00-00

—

$63.15

In stock

9

BRACKET, MIRROR 1

BME-2629N-10-00

1

$22.05

In stock

10

BOLT,SOCKET HEAD

91314-06020-00

1

$2.05

In stock

11

COVER, SWITCH

BME-8291G-00-00

1

$10.31

In stock

12

SW., HANDLE LH

BME-8291L-00-00

1

$406.51

In stock

13

CLIP

BME-83525-00-00

1

$8.09

In stock

14

SCREW, PAN HEAD

98517-04016-00

1
Out of stock

15

COVER 1

BME-8246B-00-00

1

$10.60

In stock

16

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

17

SW., HANDLE RH

BME-8291R-00-00

—

$382.18

In stock

18

COVER 2

BME-8249A-00-00

—

$8.62

In stock

19

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

20

CLAMP

90465-10098-00

1

$2.24

In stock

21

LEVER HOLDER ASSY (LEFT)

BME-82910-10-00

—

$157.02

In stock
