2024 Yamaha MT09 (MT09RL) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 2024 Yamaha MT09 (MT09RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

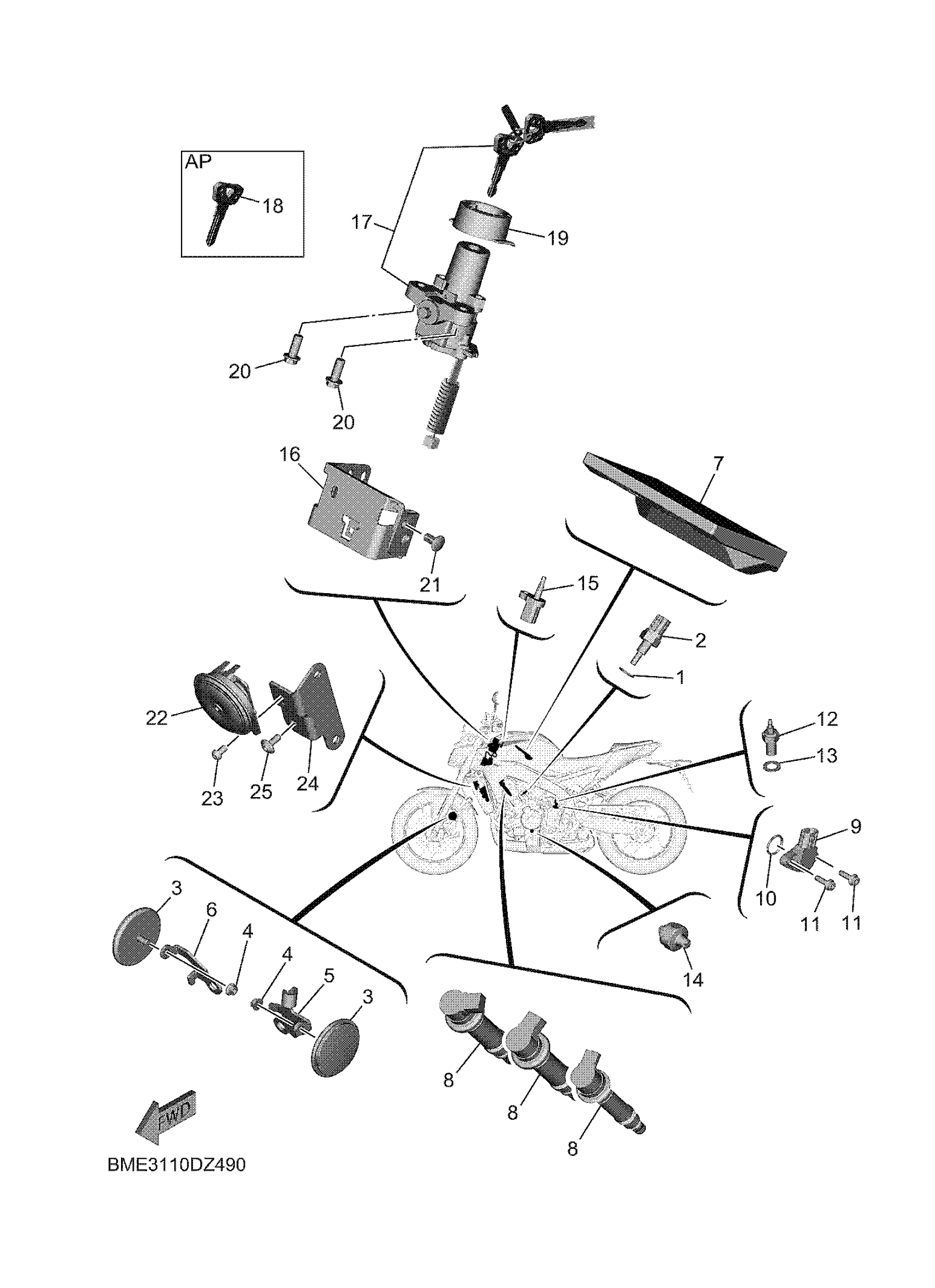

2024 Yamaha MT09 (MT09RL) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

90430-10004-00

1

$5.93

In stock

2

THERMO UNIT

52B-H3591-00-00

1
Out of stock

3

REFLECTOR, REAR 1

59C-85131-00-00

—

$10.37

In stock

4

NUT, FLANGE

95702-05500-00

1

$0.74

In stock

5

BRACKET, REFLECTOR

BME-85112-00-00

1

$15.05

In stock

6

BRACKET, REFLECTOR

BME-85122-00-00

1

$8.15

In stock

7

ENGINE CONTROL UNI

BME-8591A-10-00

1

$1,206.99

In stock

8

IGNITION COIL ASSY

BME-82310-00-00

1

$86.52

In stock

9

SENSOR, GEAR POSITION

2CR-85899-10-00

1

$105.68

In stock

10

O-RING

93210-17008-00

—

$1.83

In stock

11

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

1

$6.28

In stock

12

NEUTRAL SWITCH ASSY

3GB-82540-01-00

1

$52.07

In stock

13

GASKET (1KH,1.0T)

90430-10148-00

1

$4.74

In stock

14

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

1

$60.97

In stock

15

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

1

$29.26

In stock

16

COVER, CONNECTOR

B7N-82599-01-00

—

$3.32

In stock

17

MAIN SWITCH STEERING LOCK

BME-82501-10-00

—

$146.71

In stock

18

BLANK KEY

4BH-82511-09-00

—

$24.43

In stock

19

COVER, MAIN SWITCH

BME-82568-00-00

—

$28.11

In stock

20

BOLT, WASHER BASED(3JP)

90105-081A1-00

—

$6.89

In stock

21

RIVET

90269-07015-00

—

$1.00

In stock

22

HORN

BME-83371-00-00

—

$43.49

In stock

23

BOLT, BUTTON HEAD

92017-06010-00

—
Out of stock

24

BRACKET, HORN

BME-23377-00-00

—

$20.72

In stock

25

BOLT,HEX. SOCKET BUTTON

90111-06127-00

—

$6.29

In stock
