2024 Yamaha MT09 (MT09RL) Side Cover Diagram

← All diagrams

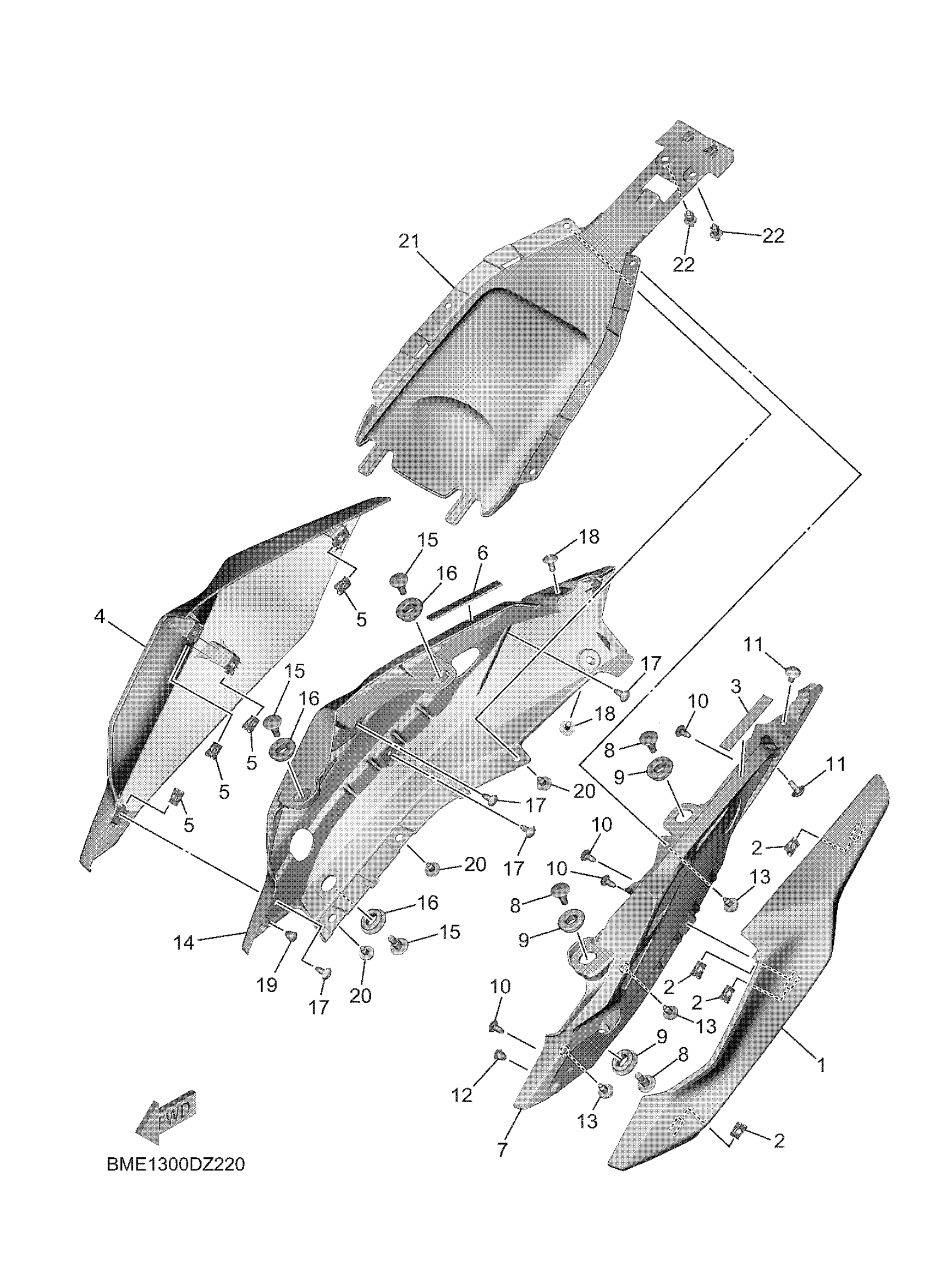

Find the part on the Side Cover diagram for your 2024 Yamaha MT09 (MT09RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Yamaha MT09 (MT09RL) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

BME-21711-00-P2

1

$67.78

In stock

2

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

3

DAMPER, PLATE

90520-02011-00

—

$1.05

In stock

4

COVER, SIDE 2

BME-21721-00-P2

1

$67.78

In stock

5

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

6

DAMPER, PLATE

90520-02011-00

—

$1.05

In stock

7

COVER, SIDE 3

BME-21731-00-00

—

$27.83

In stock

8

BOLT

90109-06336-00

1

$1.71

In stock

9

GROMMET(4BH)

90480-01559-00

1

$4.80

In stock

10

SCREW, TRUSS TAP.

97707-50012-00

1

$3.15

In stock

11

BOLT

90111-05002-00

1

$5.18

In stock

12

PLUG(1NL)

90338-07180-00

1

$5.68

In stock

13

RIVET

90269-06081-00

1

$5.69

In stock

14

COVER, SIDE 4

BME-21741-00-00

—

$27.83

In stock

15

BOLT

90109-06336-00

1

$1.71

In stock

16

GROMMET(4BH)

90480-01559-00

1

$4.80

In stock

17

SCREW, TRUSS TAP.

97707-50012-00

1

$3.15

In stock

18

BOLT

90111-05002-00

1

$5.18

In stock

19

PLUG(1NL)

90338-07180-00

1

$5.68

In stock

20

RIVET

90269-06081-00

1

$5.69

In stock

21

COVER, REAR FENDER

BME-21651-00-00

—

$55.31

In stock

22

RIVET

90269-06008-00

—

$7.40

In stock
