2024 Yamaha MT09 (MT09RL) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2024 Yamaha MT09 (MT09RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

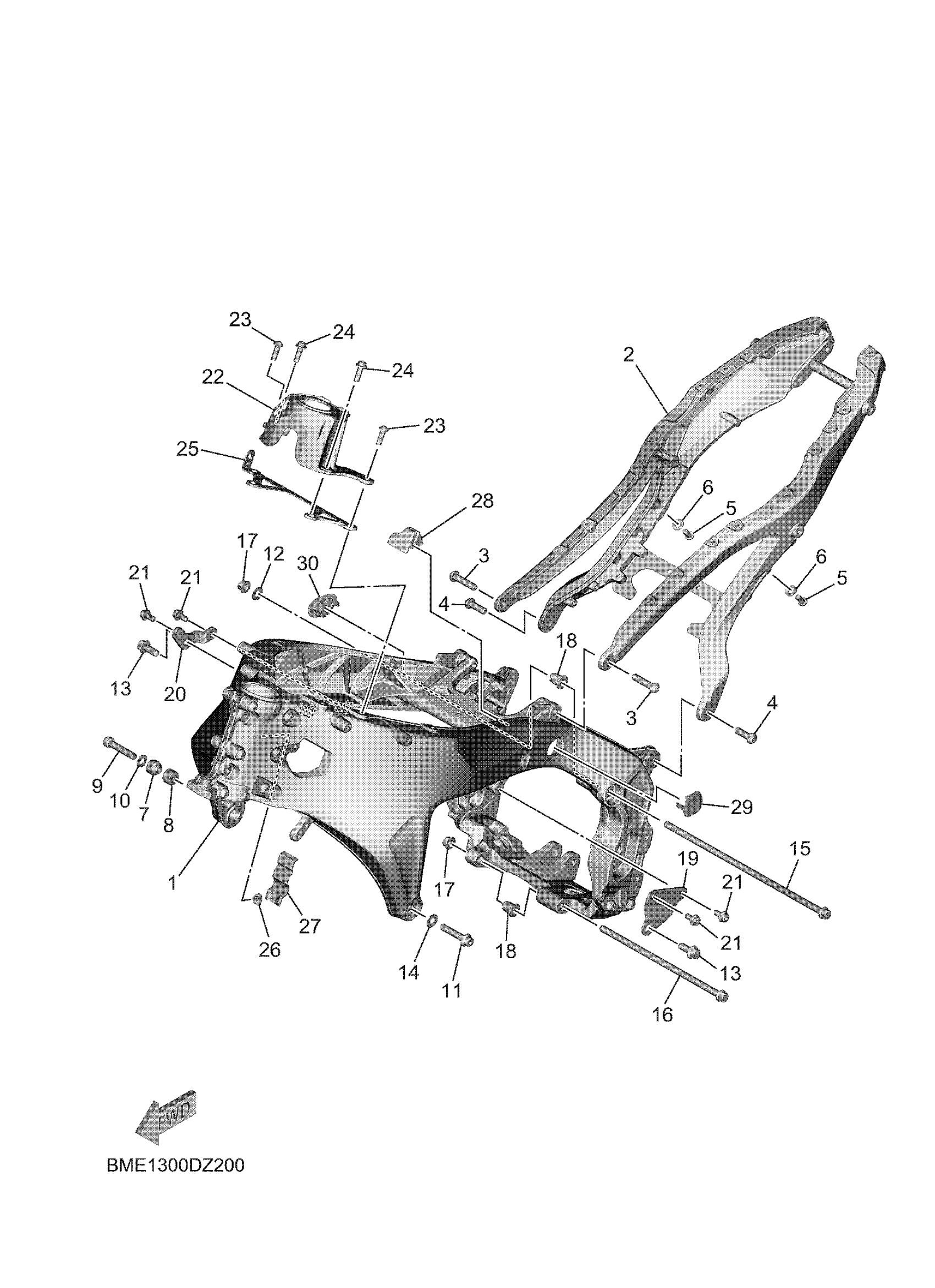

2024 Yamaha MT09 (MT09RL) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME SUB COMP.

BME-2111B-09-00

1

$1,914.99

In stock

2

REAR FRAME COMP.

BME-21190-09-00

1

$1,117.99

In stock

3

SCREW

90149-10083-00

—

$5.32

In stock

4

SCREW

90149-10082-00

—

$7.52

In stock

5

BOLT, BUTTON

92017-08016-00

1

$4.72

In stock

6

WASHER(6TC)

92907-08200-00

1
Out of stock

7

BOSS, ENGINE MOUNT

2C0-21414-00-00

1

$23.02

In stock

8

BOSS, ENGINE MOUNT

5VY-21424-00-00

1

$26.44

In stock

9

BOLT,SOCKET

91314-10050-00

1

$4.06

In stock

10

WASHER, PLATE

90201-10033-00

1

$6.26

In stock

11

BOLT, HEXAGON SOCKET HEAD

90110-10043-00

1

$3.76

In stock

12

WASHER PLATE

90201-10084-00

—

$2.03

In stock

13

BOLT, FLANGE DEEP RECESS

95D37-10025-00

1

$1.71

In stock

14

WASHER, PLATE

90201-10075-00

1

$2.51

In stock

15

BOLT FLANGE

90105-10487-00

—

$29.05

In stock

16

BOLT FLANGE

90105-10488-00

—

$16.02

In stock

17

NUT(4KG)

90179-10658-00

—

$7.49

In stock

18

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

—

$18.98

In stock

19

STAY, ENGINE 1

B5U-21315-00-00

—

$13.65

In stock

20

STAY, ENGINE 2

B5U-21316-00-00

—

$8.28

In stock

21

BOLT(2KF)

90109-085E2-00

—

$5.98

In stock

22

STAY 1

BME-2137F-00-00

—

$102.32

In stock

23

BOLT

90109-08247-00

—
Out of stock

24

91312-08030

91312-08030-00

—

$6.31

In stock

25

STAY 2

BME-2137G-00-00

—

$26.45

In stock

26

PLUG, BLIND

5VX-21289-00-00

—

$3.78

In stock

27

DAMPER

1HP-H2176-01-00

—

$1.46

In stock

28

COVER

B7N-2117F-00-00

—

$5.38

In stock

29

COVER 9

BEA-2117X-00-00

—

$10.68

In stock

30

COVER 10

BEA-2117Y-00-00

—

$10.68

In stock
