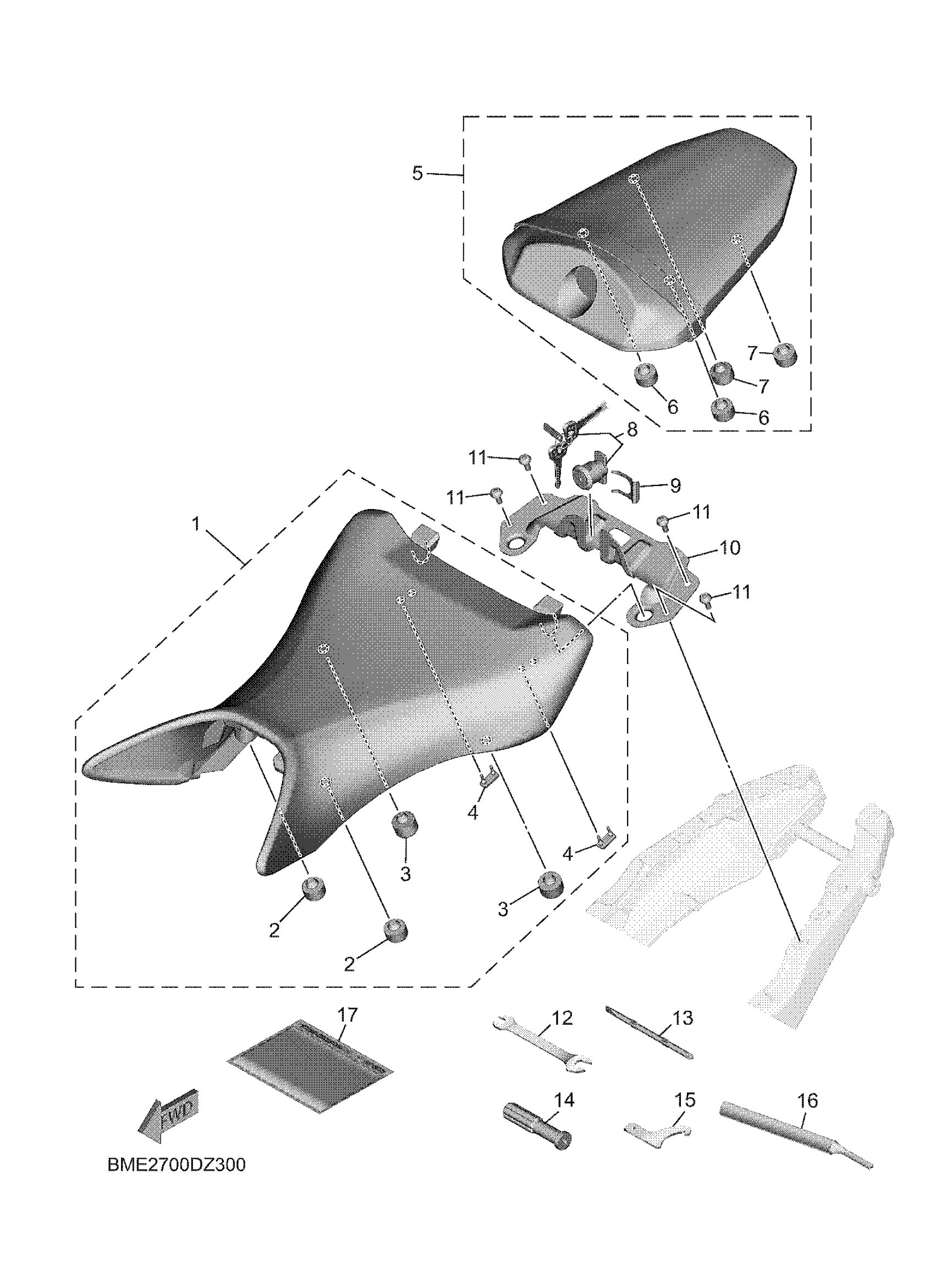

Find the part on the Seat diagram for your 2024 Yamaha MT09 (MT09RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Yamaha MT09 (MT09RL) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSY

BME-24710-00-00

1

$215.95

In stock

2

PAD, SEAT

5JW-24741-00-00

1

$5.17

In stock

3

STOPPER, MAIN STAND

371-27114-00-00

1

$5.80

In stock

4

STOPPER, UPPER MOU

682-44532-01-00

1

$2.83

In stock

5

TANDEM SEAT ASSY

BME-24750-00-00

—

$99.32

In stock

6

PAD, SEAT

5JW-24741-00-00

1

$5.17

In stock

7

STOPPER, MAIN STAN

B7N-27114-00-00

1

$2.98

In stock

8

KEY SET

BME-82021-00-00

1

$34.94

In stock

9

SPRING, LOCK 2

59C-2176V-00-00

—

$4.35

In stock

10

BRACKET, SEAT LOCK

BME-2478X-00-00

1

$42.15

In stock

11

BOLT

90111-06029-00

1

$4.71

In stock

12

SPANNER 12-14

33M-28125-00-00

1

$7.94

In stock

13

DRIVER

2GV-28152-00-00

1

$3.74

In stock

14

GRIP, DRIVER

2H7-28151-00-00

1

$5.93

In stock

15

SPANNER, SPECIAL

BME-28135-00-00

1

$12.51

In stock

16

HANDLE, SPANNER

BME-28138-00-00

1
Out of stock

17

POUCH

B7N-28186-00-00

—

$15.77

In stock
