Find the part on the Turn Signals diagram for your 1973 Kawasaki Mach Ii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

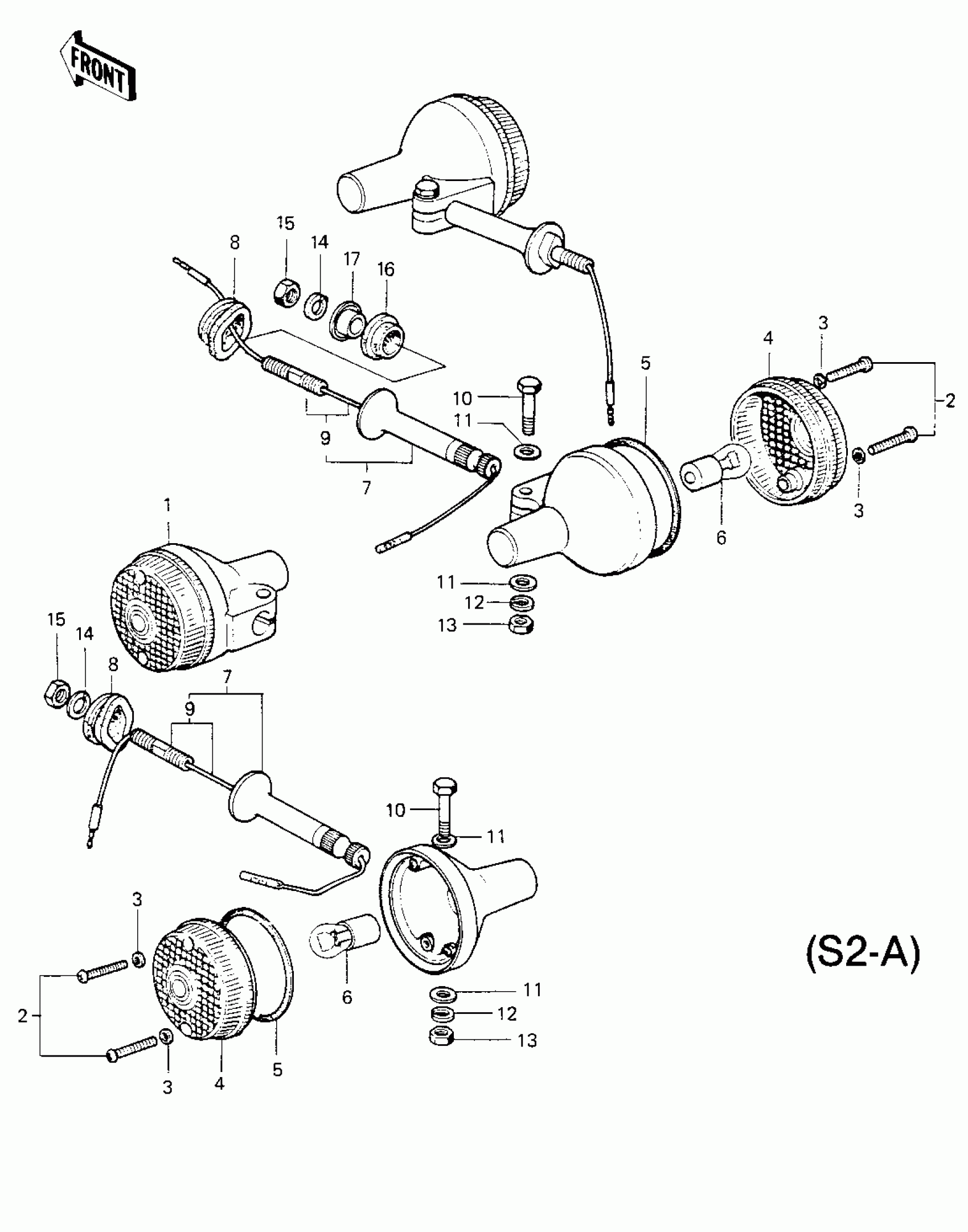

1973 Kawasaki Mach Ii Turn Signals Diagram

#

Description
Price
Status
Order Qty

1

LAMP ASSY-TURN SIGNAL

23040-037

Out of stock

2

UNAVAILABLE IN PRICE BOOK

220E0420

Out of stock

3

WASHER,PLAIN,4MM

23058-002

Out of stock

4

LENS-SIGNAL LAMP,"045-6588"

23048-1001

Out of stock

4

LENS-SIGNAL LAMP,"045-6588"

23048-1001

Out of stock

5

GASKET,SIGNAL LAMP

23050-003

Out of stock

6

BULB,12V 32CP(23W)

92069-055

Out of stock

7

BRACKET-TURN SIG LAMP

23078-001

Out of stock

8

DAMPER,LAMP

92075-128

Out of stock

9

BOLT SET-SIG LAMP BKT

23073-001

Out of stock

10

BOLT-UPSET

112G0630

Out of stock

11

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

12

WASHER SPRING 6MM

461F0600

Out of stock

13

NUT 6MM

311B0600

Out of stock

14

WASHER SPRING 10MM

461F1000

Out of stock

15

NUT-HEX-FINE,10MM

315B1000

Out of stock

16

DAMPER RUBBER,SIG LM

92075-158

Out of stock

17

COLLAR

92027-147

Out of stock
