1973 Kawasaki Mach Ii Meters/ignition Switch Diagram

← All diagrams

Find the part on the Meters/ignition Switch diagram for your 1973 Kawasaki Mach Ii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

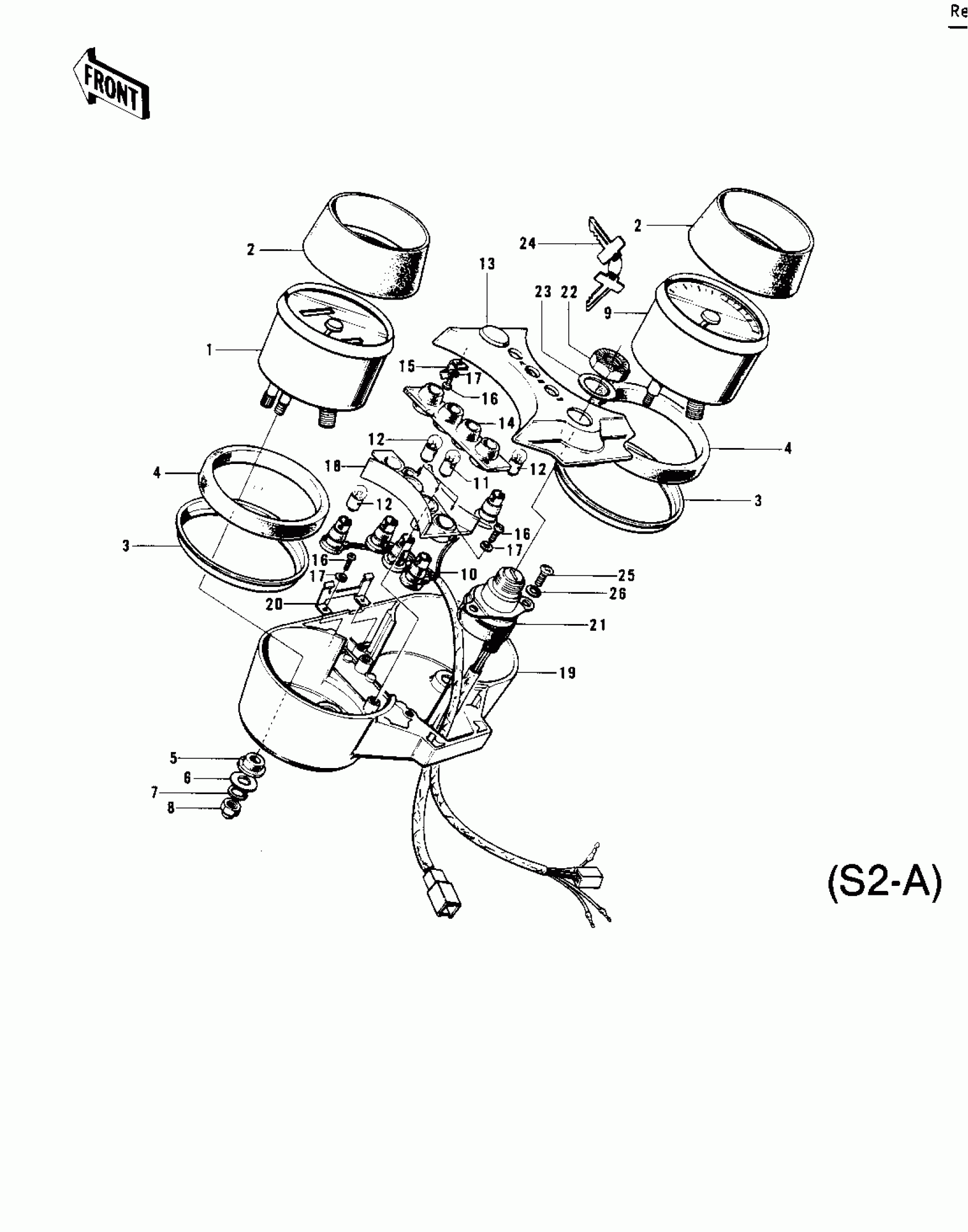

1973 Kawasaki Mach Ii Meters/ignition Switch Diagram

#

Description
Price
Status
Order Qty

1

$544.46

In stock

1

$544.46

In stock

2

COVER-METER

25012-012

Out of stock

3

RING-METER

25026-001

Out of stock

4

DAMPER RUBBER-METER

25019-015

Out of stock

5

DAMPER,METER

25019-013

$4.53

In stock

6

WASHER-PLAIN,5MM

411B0500

Out of stock

7

WASHER SPRING 5MM

461F0500

Out of stock

8

NUT,5MM

92015-059

Out of stock

9

TACHOMETER ASSY

25016-020

$344.54

In stock

10

SOCKET-METER

25011-029

$61.44

In stock

11

BULB 12V 1.5W

92069-017

Out of stock

12

BULB 12V 3W

92069-018

$3.87

In stock

13

COVER-METER CASE

25023-002

Out of stock

14

DAMPER RUBBER-METER

25019-014

Out of stock

15

$2.53

In stock

16

SCREW PAN HEAD 4X8

220B0408

Out of stock

17

WASHER SPRING 4MM

461F0400

Out of stock

18

COVER-METER SOCKET

25023-003

$9.34

In stock

19

CASE-METER

25008-026

Out of stock

20

HOLDER-METER CASE

25014-003

$6.80

In stock

21

SWITCH-ASSY

27005-1021

Out of stock

21

SWITCH-ASSY

27005-1021

Out of stock

22

NUT-IGNITION SWITCH

27007-003

Out of stock

23

WASHER-IGNITION

27019-002

Out of stock

24

KEY SET,#181

27008-048-81

Out of stock

24

KEY SET,#185

27008-048-85

$12.05

In stock

25

SCREW PAN HEAD 5X8

220B0508

Out of stock

26

WASHER SPRING 5MM

461F0500

Out of stock
