1973 Kawasaki Mach II Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 1973 Kawasaki Mach II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

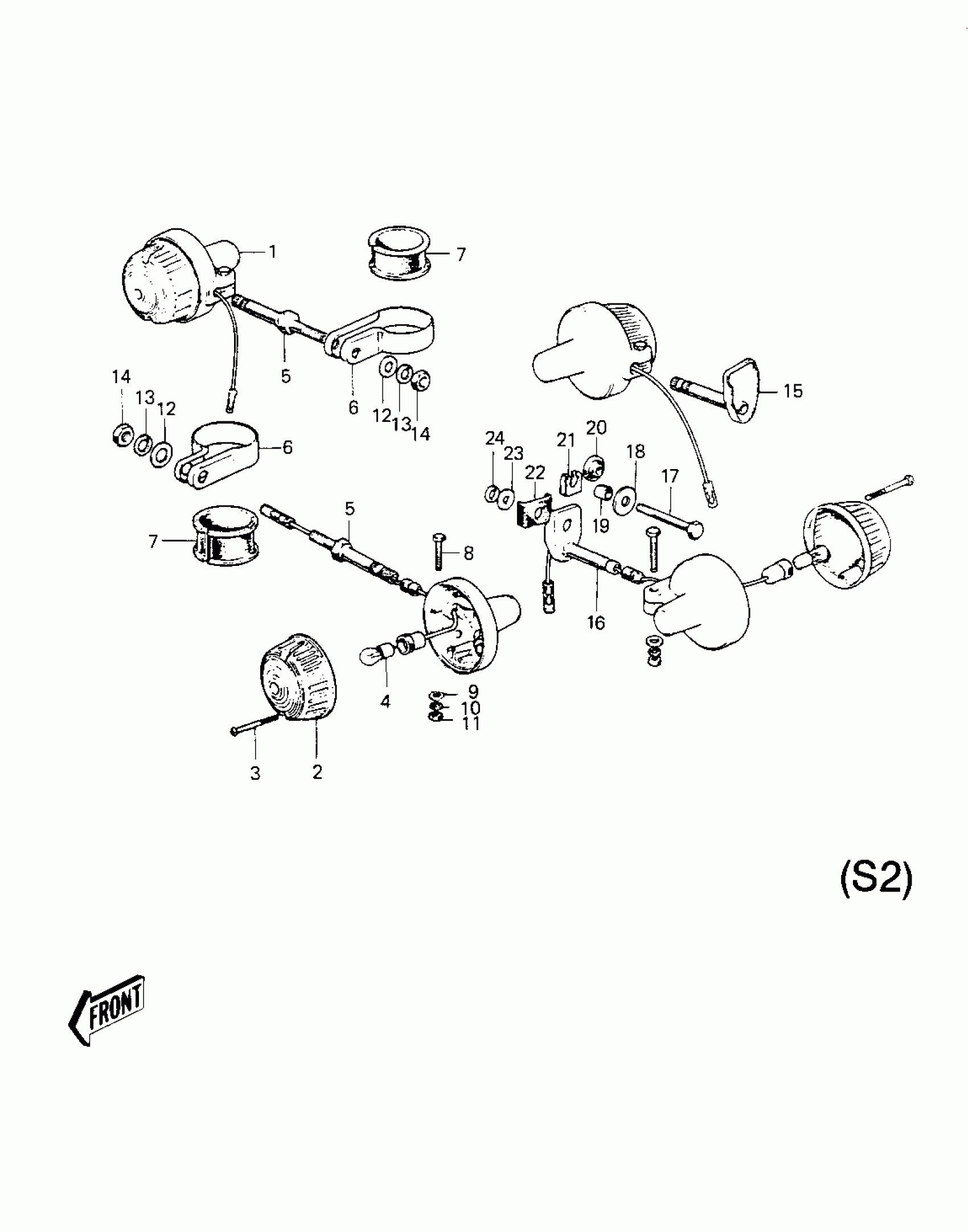

1973 Kawasaki Mach II Turn Signals Diagram

#

Description
Price
Status
Order Qty

1

LAMP-TURN SIGNAL

23040-029

Out of stock

2

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

Out of stock

2

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

Out of stock

3

SCREW-PAN HEAD,4X35

220E0435A

Out of stock

4

BULB,12V 32CP(23W)

92069-055

Out of stock

5

BRACKET,TURN SIGNAL

23051-047

Out of stock

5

BRACKET,TURN SIGNAL

23051-047

Out of stock

6

BKT-FRT SIGNAL LAMP

23051-021

Out of stock

7

DAMPER RUBBER-FR SGNL

92075-088

Out of stock

8

BOLT-UPSET

112G0630

Out of stock

9

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

10

WASHER SPRING 6MM

461F0600

Out of stock

11

NUT 6MM

311B0600

Out of stock

12

WASHER-PLAIN-SMALL,12MM

410B1200

Out of stock

13

WASHER-SPRING,12MM

461F1200

Out of stock

14

NUT-HEX-FINE

315B1200

Out of stock

15

BKT-RR SIGNL LAMP,R.H

23051-018

Out of stock

16

BKT-RR SIGNL LAMP,L.H

23051-019

Out of stock

17

BOLT-SMALL-FINE,10X55

113N1055

Out of stock

18

WASHER-PLAIN

92022-206

Out of stock

19

COLLAR

92027-137

Out of stock

20

DAMPER RUBBER,A

92075-114

Out of stock

21

PLATE-EARTH

23061-003

Out of stock

22

DAMPER RUBBER B

92075-082

Out of stock

23

WASHER-PLAIN,10MM

411B1000

Out of stock

24

WASHER SPRING 10MM

461F1000

Out of stock
