1973 Kawasaki Mach II Meters/ignition Switch Diagram

← All diagrams

Find the part on the Meters/ignition Switch diagram for your 1973 Kawasaki Mach II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

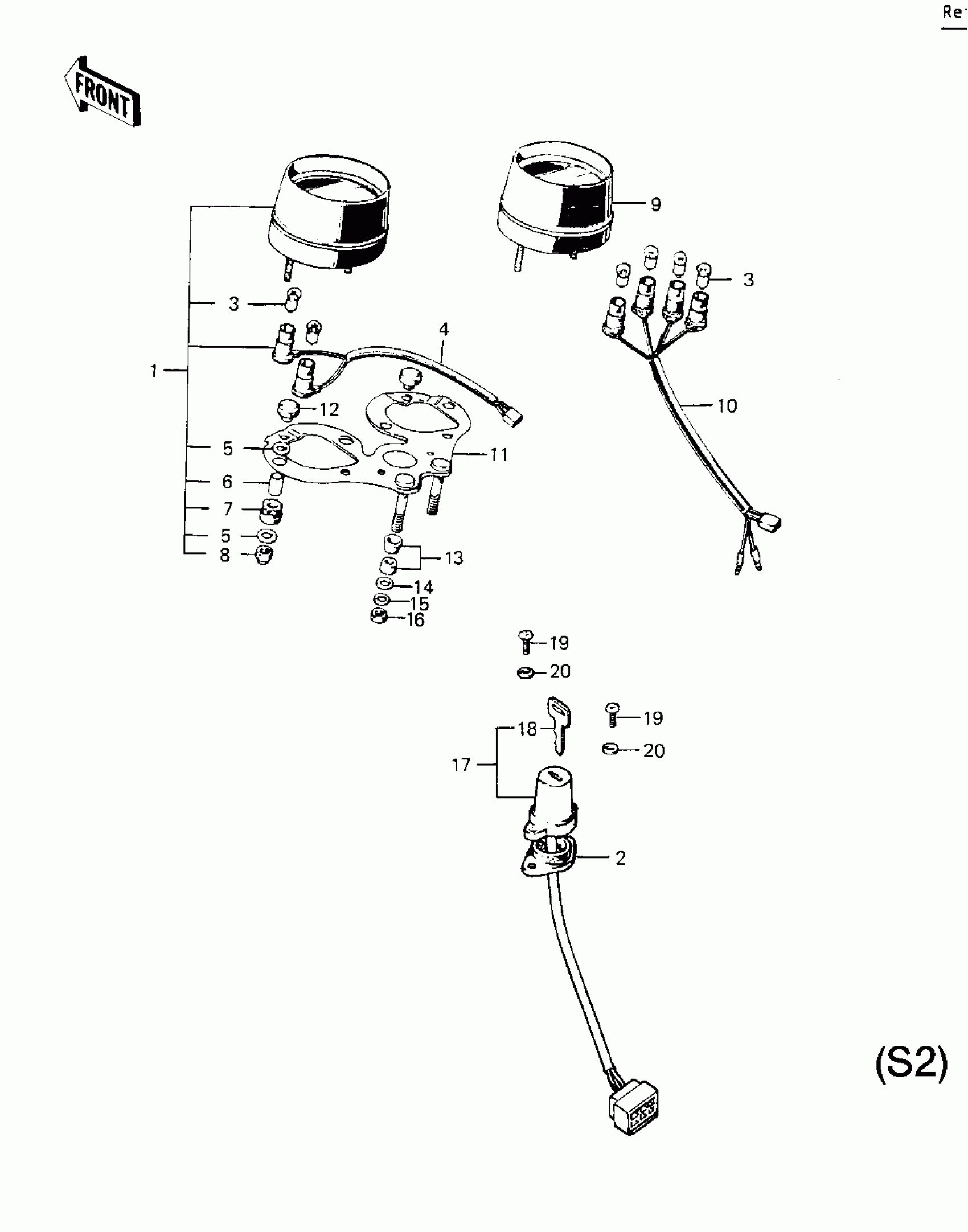

1973 Kawasaki Mach II Meters/ignition Switch Diagram

#

Description
Price
Status
Order Qty

1

SPEEDOMETER ASSY,MPH

25005-050

Out of stock

2

DAMPER RUBBER

92075-077

Out of stock

3

BULB 12V 3W

92069-018

Out of stock

4

SOCKET-SPEEDOMETER

25011-020

Out of stock

5

WASHER-METER FITTING

92022-194

Out of stock

6

COLLAR

92027-140

Out of stock

7

DAMPER RUBBER-MTR FIT

92075-089

Out of stock

8

NUT,6MM

92015-009

Out of stock

9

TACHOMETER ASSY

25016-011

Out of stock

10

SOCKET-TACHOMETER

25011-021

Out of stock

11

BRAKCET-METER

25008-014

Out of stock

12

DAMPER RUBBER-MTR BKT

92075-090

Out of stock

13

DAMPER RUBBER

92075-080

Out of stock

14

WASHER PLAIN 8MM

411B0800

Out of stock

15

WASHER SPRING 8MM

461F0800

Out of stock

16

NUT,8MM

311B0800

Out of stock

17

SWITCH-ASSY-IGNITION

27005-036

Out of stock

17

SWITCH-ASSY-IGNITION

27005-1058

Out of stock

18

KEY SET #685

27008-042-85

Out of stock

18

KEY SET #689

27008-042-89

Out of stock

18

KEY SET #701

27008-042-01

Out of stock

18

KEY SET #705

27008-042-05

Out of stock

19

SCREW-PAN HEAD

92011-022

Out of stock

20

WASHER PLAIN 8MM

410B0800

Out of stock
