1973 Kawasaki Mach II Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1973 Kawasaki Mach II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

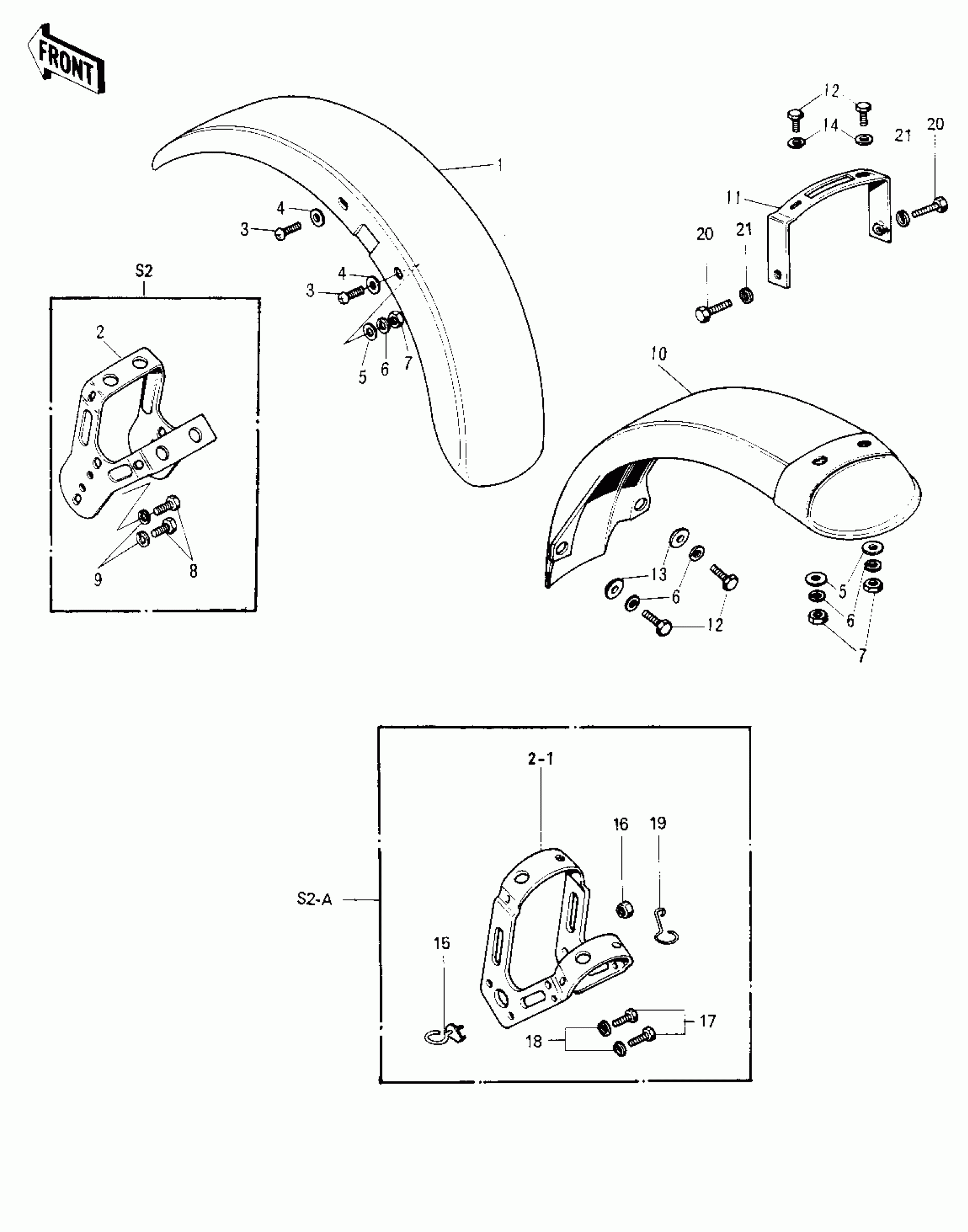

1973 Kawasaki Mach II Fenders Diagram

#

Description
Price
Status
Order Qty

1

FENDER-FR,P.C.RED

35004-075-68

Out of stock

1

FENDER-FR

35004-075

Out of stock

2

BRACE-FRONT FENDER

35009-019

Out of stock

2-1

BRACE-FRONT FENDER

35009-024

Out of stock

3

SCREW PAN HEAD 6X14

220E0614

Out of stock

4

WASHER,6.5X20X1.6,WHITE

92022-193

Out of stock

5

WASHER PLAIN 6MM

411B0600

Out of stock

6

WASHER SPRING 6MM

461F0600

Out of stock

7

NUT 6MM

311B0600

Out of stock

8

BOLT SMALL

114G0812

Out of stock

9

WASHER SPRING 8MM

461F0800

Out of stock

10

FENDER-RR

35022-056

Out of stock

11

BRACKET-REAR FENDER

35025-021

Out of stock

12

BOLT-UPSET,6X16

112G0616

Out of stock

13

COLLAR

92027-122

Out of stock

14

WASHER,6.5X20X1.6

92022-125

Out of stock

15

CLAMP

92037-097

Out of stock

16

NUT,LOCK,5MM

92019-014

Out of stock

17

BOLT-SMALL-UPSET,8X16

115G0816

Out of stock

18

WASHER SPRING 8MM

461F0800

Out of stock

19

CLAMP-CABLE

92037-096

Out of stock

20

BOLT,HEX HEAD,10X25

113N1025

Out of stock

21

WASHER SPRING 10MM

461F1000

Out of stock
