1983 Kawasaki LTD Shaft Stands Diagram

← All diagrams

Find the part on the Stands diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

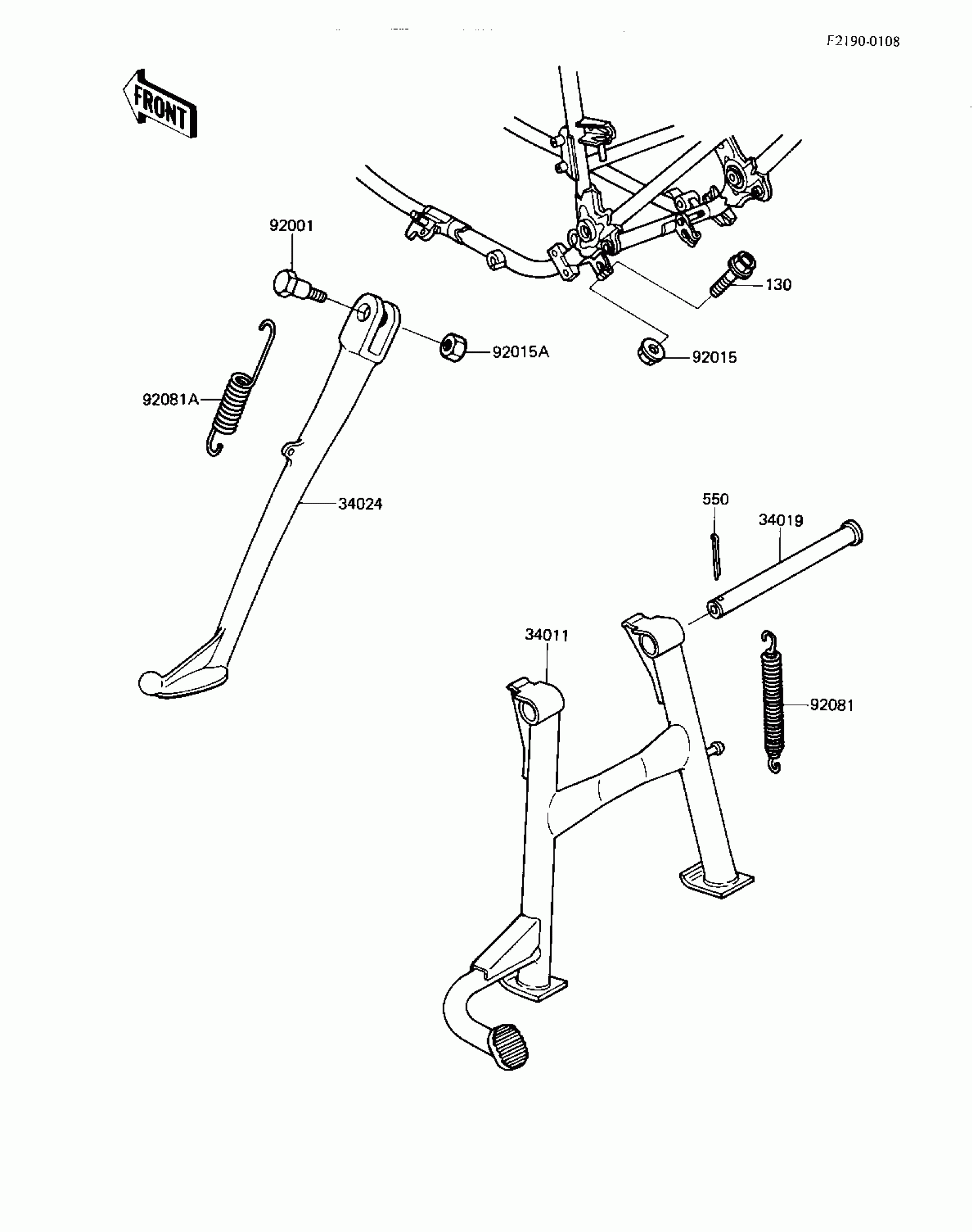

1983 Kawasaki LTD Shaft Stands Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34011

STAND-CENTER

34011-1072

1

$104.17

In stock

34019

SHAFT-STAND

34019-1003

1

$13.14

In stock

34024

STAND-SIDE

34024-1108

1

$66.80

In stock

92001

1

$12.47

In stock

92015

NUT,FLANGED,8MM

92015-1022

1
Out of stock

92015A

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92081

SPRING,STAND,CNT

92081-1145

1
Out of stock

92081A

SPRING,SIDE STAND

92081-1727

1

$10.19

In stock

130

BOLT-FLANGED,8X40

130G0840

1
Out of stock

550

1

$2.08

In stock
