1983 Kawasaki LTD Shaft Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

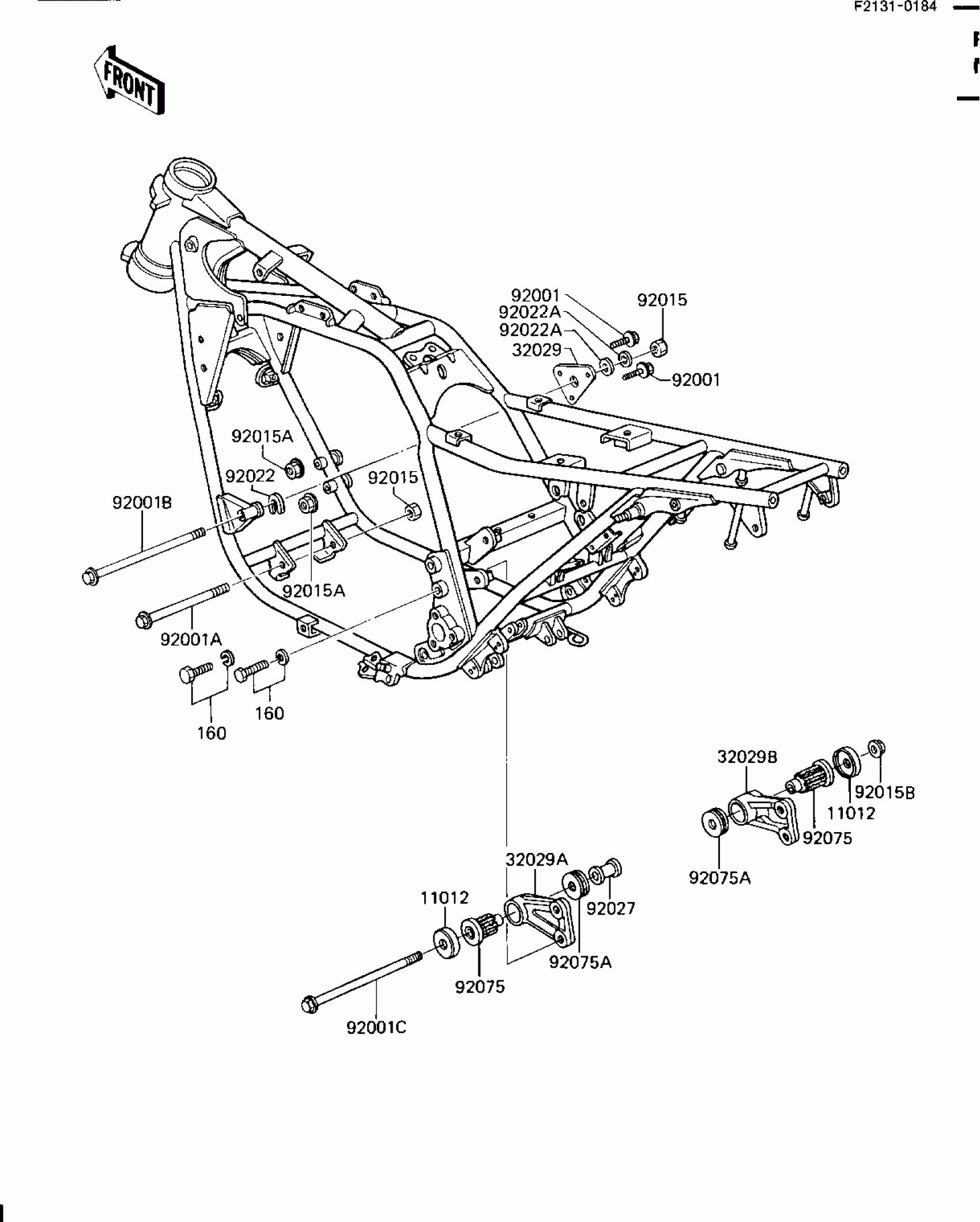

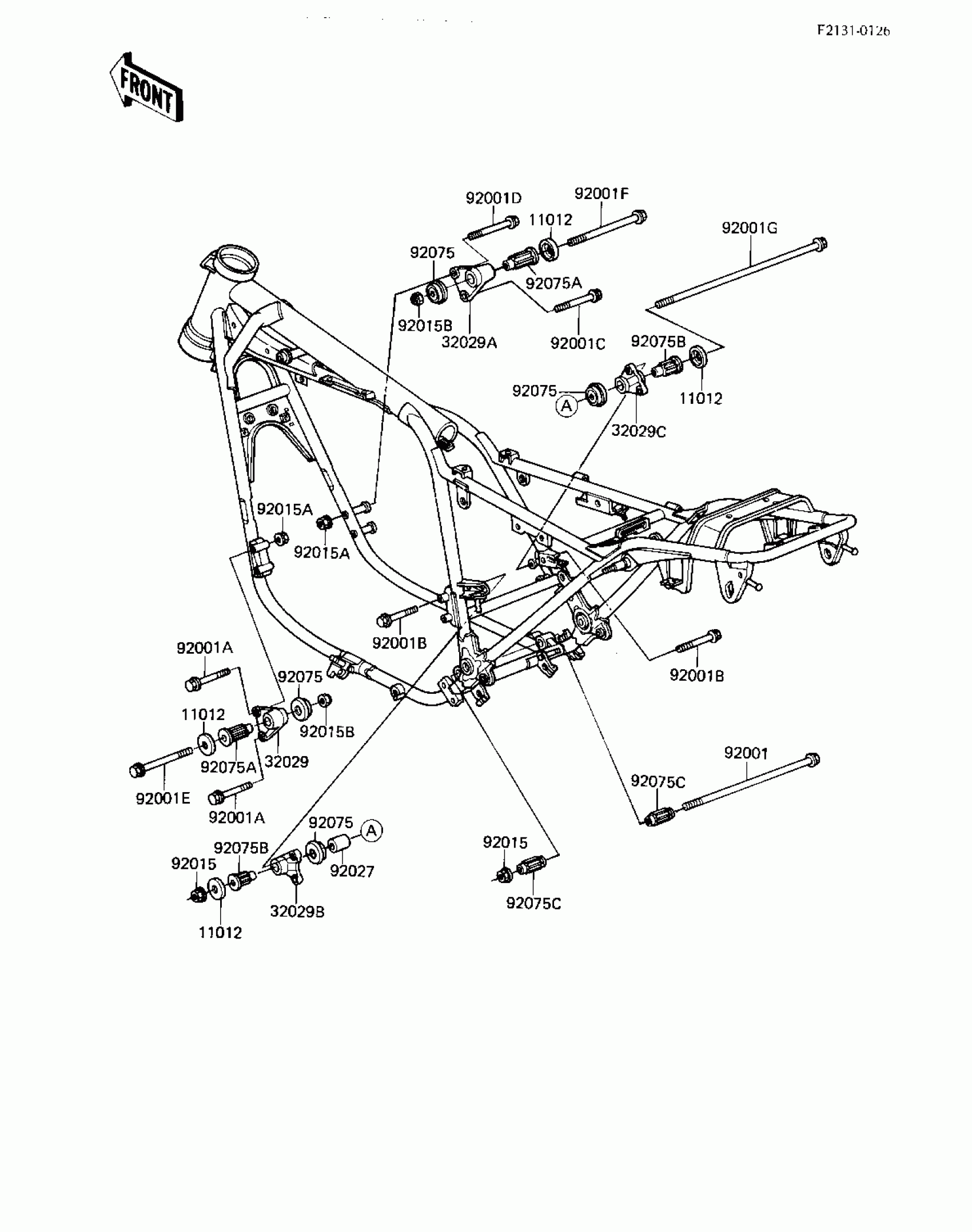

1983 Kawasaki LTD Shaft Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,ENGINE BRACKET

11012-1228

1
Out of stock

32029

BRACKET-ENGINE,FR,LH

32029-1192

1
Out of stock

32029A

BRACKET-ENGINE,FR,RH

32029-1193

1
Out of stock

32029B

BRACKET-ENGINE,RR,LH

32029-1195

1
Out of stock

32029C

BRACKET-ENGINE,RR,RH

32029-1332

1
Out of stock

92001

BOLT,FLANGED,10X255,BLACK

92001-1566

1
Out of stock

92001A

BOLT,FLANGED,8X60,BLACK

92001-1615

1
Out of stock

92001B

BOLT,FLANGED,8X65,BLACK

92001-1616

1
Out of stock

92001C

BOLT,FLANGED,8X75,BLA

92001-1642

1
Out of stock

92001D

BOLT,FLANGED,8X85

92001-1718

1
Out of stock

92001E

BOLT,FLANGED,10X110

92001-1719

1
Out of stock

92001F

BOLT,FLANGED,10X125

92001-1720

1
Out of stock

92001G

BOLT,10X290,BLACK

92001-1749

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92015A

NUT,FLANGED,8MM

92015-1408

1
Out of stock

92015B

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92027

COLLAR,ENG MOUNT UPPE

92027-228

1
Out of stock

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

1
Out of stock

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

1
Out of stock

92075B

DAMPER,11X36X50X7

92075-1378

1
Out of stock

92075C

DAMPER,11X29X42X7

92075-1379

1
Out of stock
