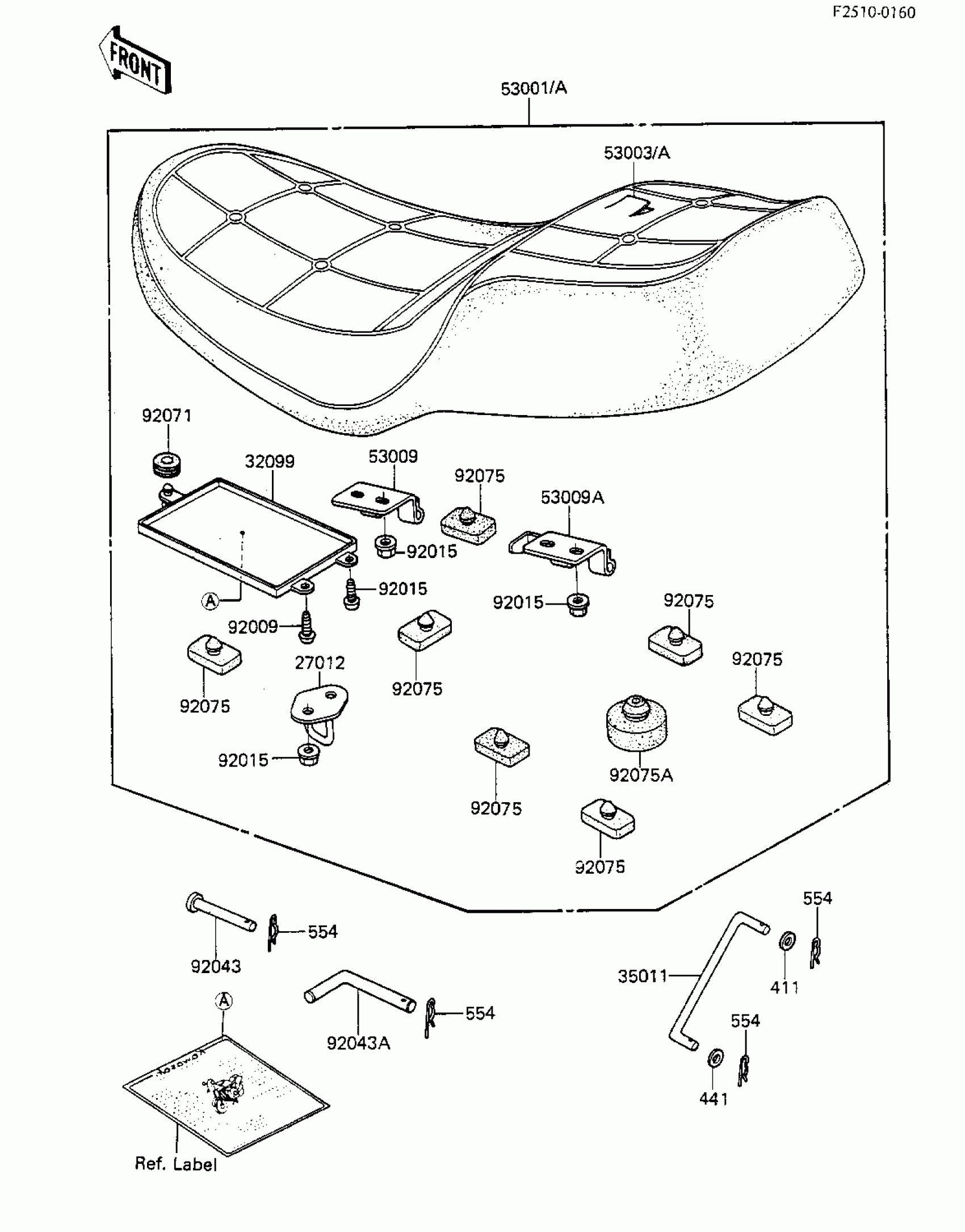

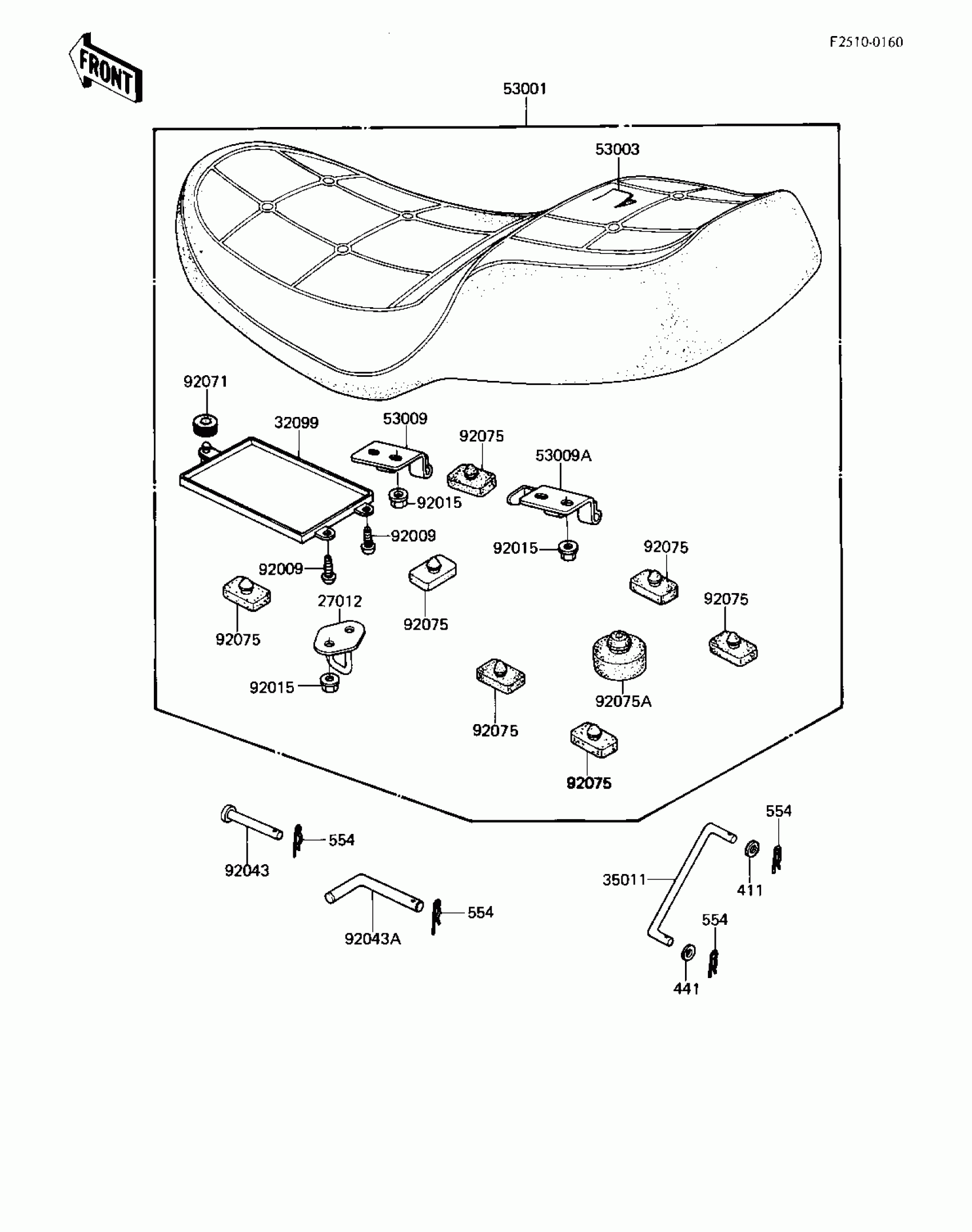

Find the part on the Seat diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki LTD Shaft Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27012

HOOK,SEAT

27012-1028

1

$9.31

In stock

32099

CASE,MANUAL

32099-011

1

$15.71

In stock

35011

STOPPER,SEAT

53054-006

1
Out of stock

53001

SEAT-ASSY

53001-1375

1

$389.56

In stock

53003

LEATHER,SEAT

53003-1032

1
Out of stock

53009

HINGE B

53009-018

1
Out of stock

53009A

HINGE,FRONT

53009-033

1

$7.71

In stock

92009

SCREW,TAPPING,5X8

92009-1043

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92043

PIN,6X48

53011-002

1

$4.72

In stock

92043A

PIN,DUAL SEAT PIVOT

53011-008

1
Out of stock

92071

GROMMET

92071-056

1

$3.39

In stock

92075

DAMPER,SEAT

92075-1153

1

$4.16

In stock

92075A

DAMPER

92075-1288

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

554

PIN-SNAP,5MM

554A0500

1

$1.83

In stock
