1983 Kawasaki LTD Shaft Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

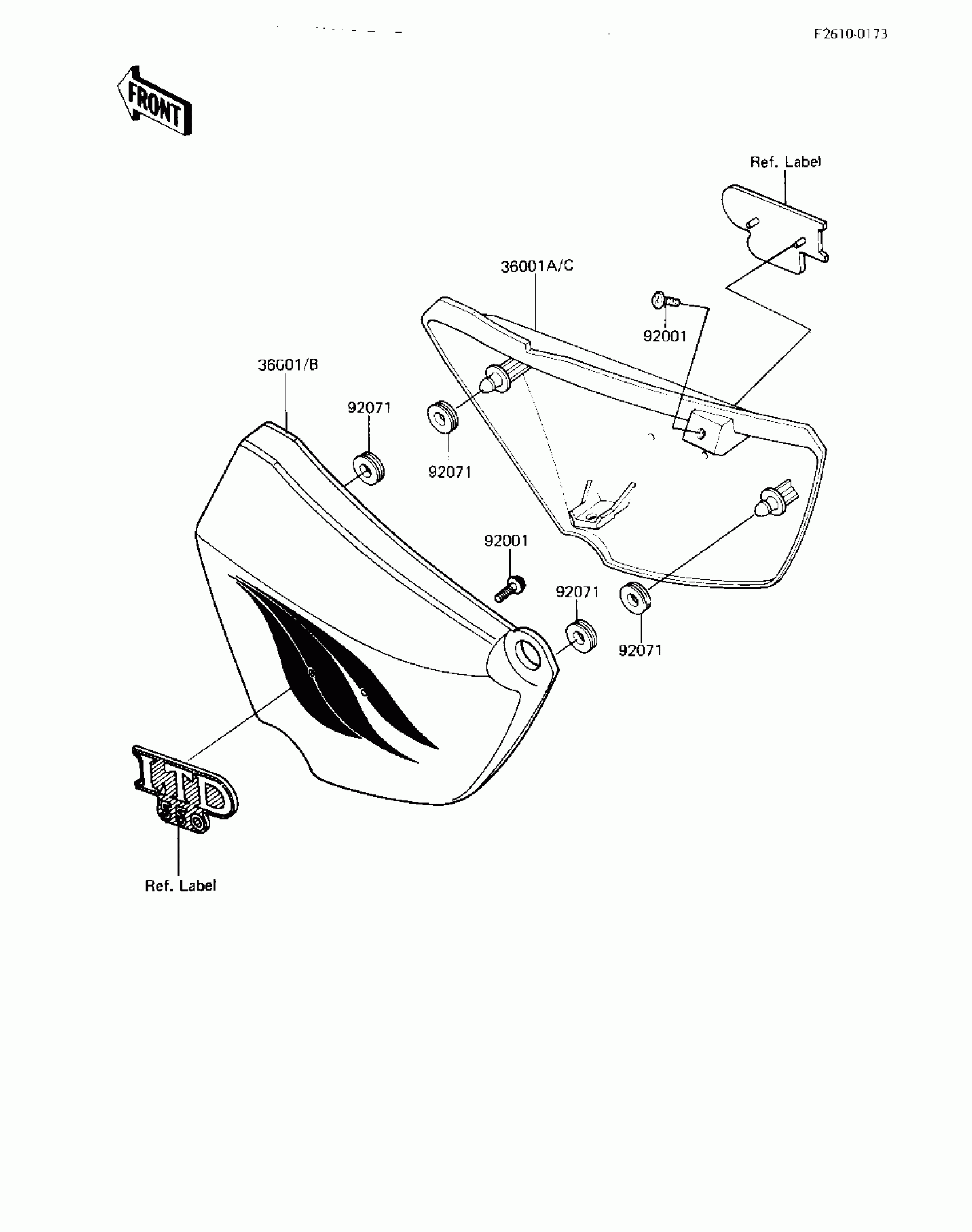

1983 Kawasaki LTD Shaft Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,L.M.RED

36001-5157-E2

1

$103.08

In stock

36001A

COVER-SIDE,RH,L.M.RED

36001-5158-E2

1

$117.07

In stock

36001B

COVER-SIDE,LH,EBONY

36001-5159-H8

1

$115.93

In stock

36001C

COVER-SIDE,RH,EBONY

36001-5160-H8

1

$113.89

In stock

92001

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92071

GROMMET

92071-056

1

$3.39

In stock
