1983 Kawasaki LTD Shaft Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

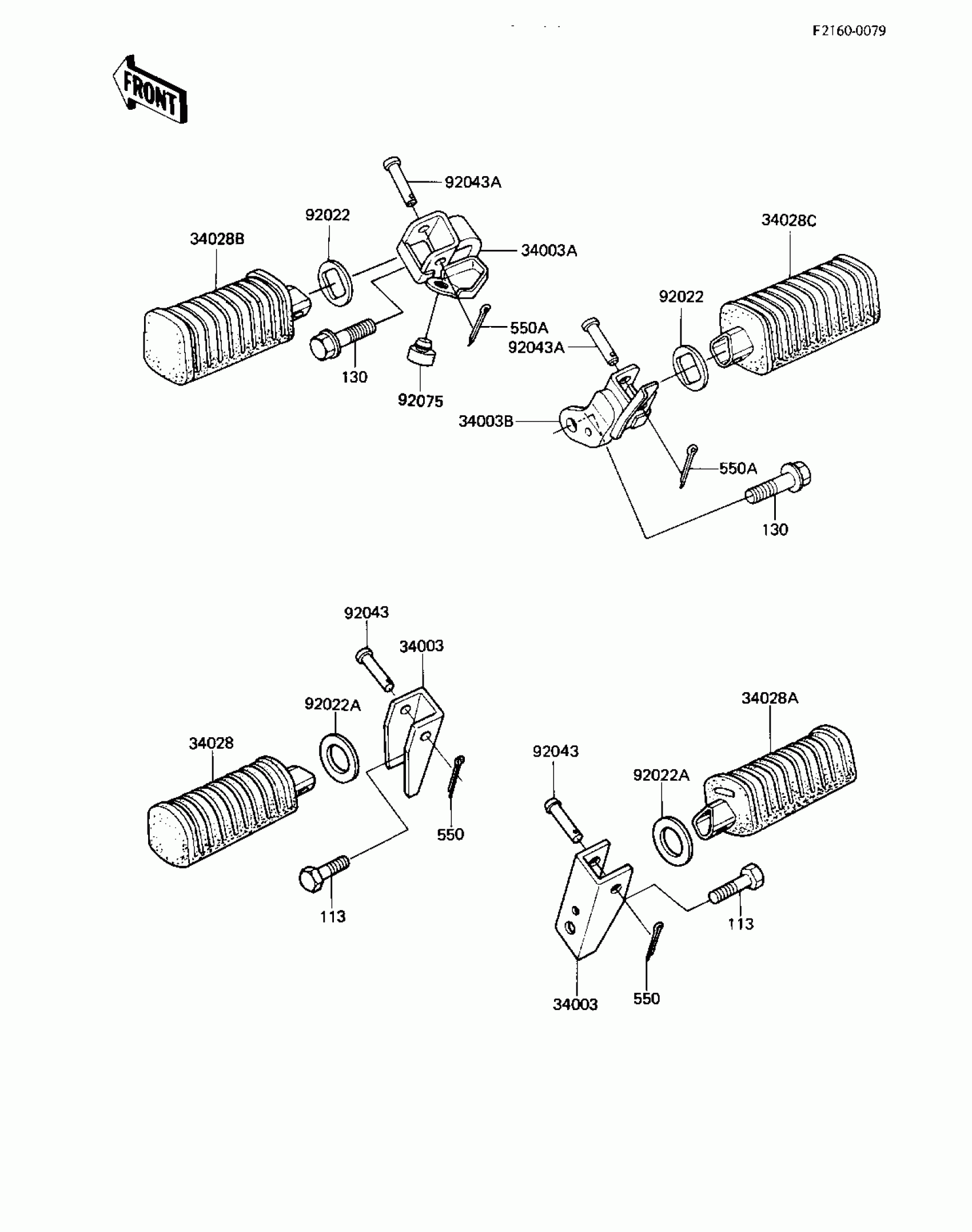

1983 Kawasaki LTD Shaft Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER,REAR FOOTREST

34003-1025

1
Out of stock

34003A

HOLDER-STEP,FR,LH

34003-1149

1

$43.54

In stock

34003B

HOLDER-STEP,FR,RH

34003-1150

1

$43.47

In stock

34028

STEP,RR,LH,BLACK

34028-1041

1
Out of stock

34028A

STEP,RR,RH,BLACK

34028-1042

1
Out of stock

34028B

STEP,FR,LH

34028-1136

1
Out of stock

34028C

STEP,FR,RH

34028-1137

1
Out of stock

92022

WASHER,STEP FITTING

92022-1314

1

$4.16

In stock

92022A

WASHER,22.5X30X2.6,B

92022-1320

1
Out of stock

92043

PIN,6X28

92043-1464

1

$6.44

In stock

92043A

PIN,8X35.5

92043-115

1

$9.22

In stock

92075

DAMPER

92075-1045

1

$7.04

In stock

113

BOLT-UPSET

112C1030

1
Out of stock

130

BOLT-FLANGED,12X20

130J1220

1
Out of stock

550

1

$1.03

In stock

550A

1

$0.51

In stock
