1983 Kawasaki LTD Shaft Mufflers Diagram

← All diagrams

Find the part on the Mufflers diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

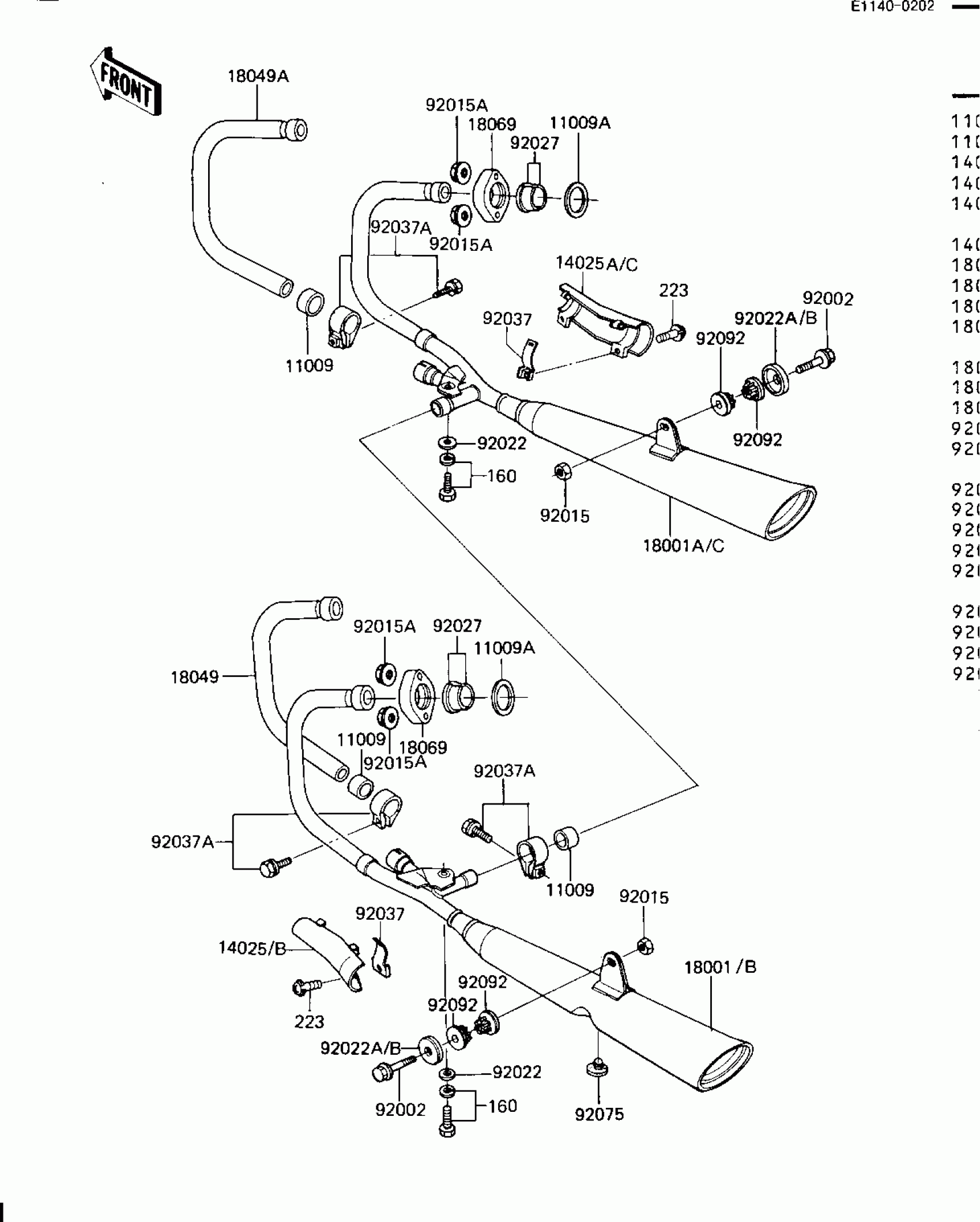

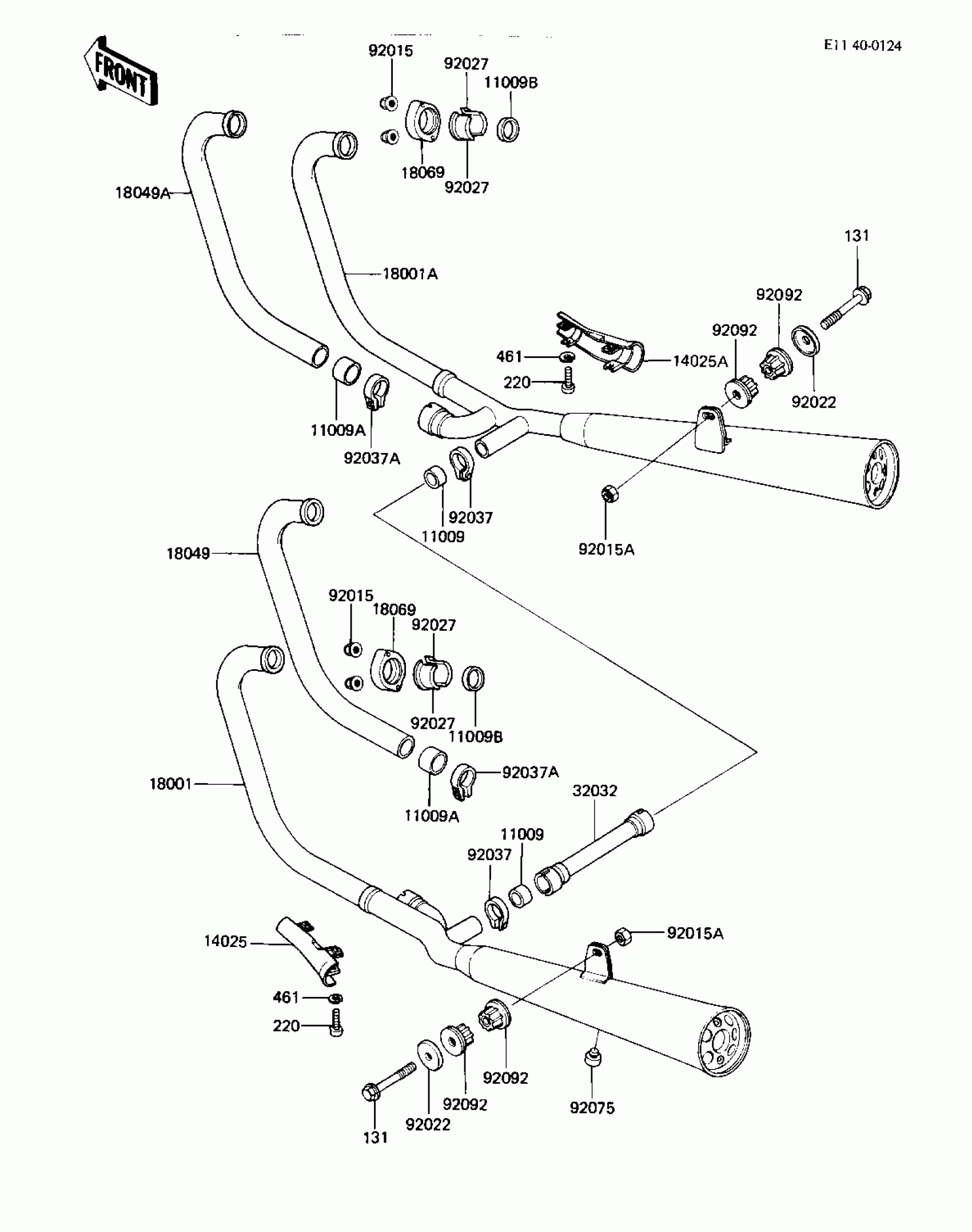

1983 Kawasaki LTD Shaft Mufflers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$22.91

In stock

11009A

1

$21.24

In stock

11009B

1

$6.55

In stock

14025

COVER,MUFFLER,LH

14025-1531

1
Out of stock

14025A

COVER,MUFFLER,RH

14025-1532

1
Out of stock

18001

1

$510.02

In stock

18001A

1

$510.02

In stock

18049

PIPE-EXHAUST,#2

18049-1154

1

$139.74

In stock

18049A

PIPE-EXHAUST,#3

18049-1155

1

$139.74

In stock

18069

HOLDER-EXHAUST PIPE

18069-1025

1

$22.27

In stock

32032

PIPE,MUFFLER CONNECT1

32032-1671

1
Out of stock

92015

NUT,CAP,6M/M

92015-1153

1
Out of stock

92015A

NUT,LOCK,10MM

92019-021

1

$4.83

In stock

92022

1

$5.42

In stock

92027

1

$3.75

In stock

92037

CLAMP,MUFFLER,37MM

92037-1243

1
Out of stock

92037A

CLAMP,42MM

92037-1349

1

$10.26

In stock

92075

DAMPER

92075-1045

1

$7.04

In stock

92092

1

$13.70

In stock

131

BOLT-FLANGED,10X55

131G1055

1
Out of stock

220

SCREW PAN HEAD 6X40

220B0640

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
