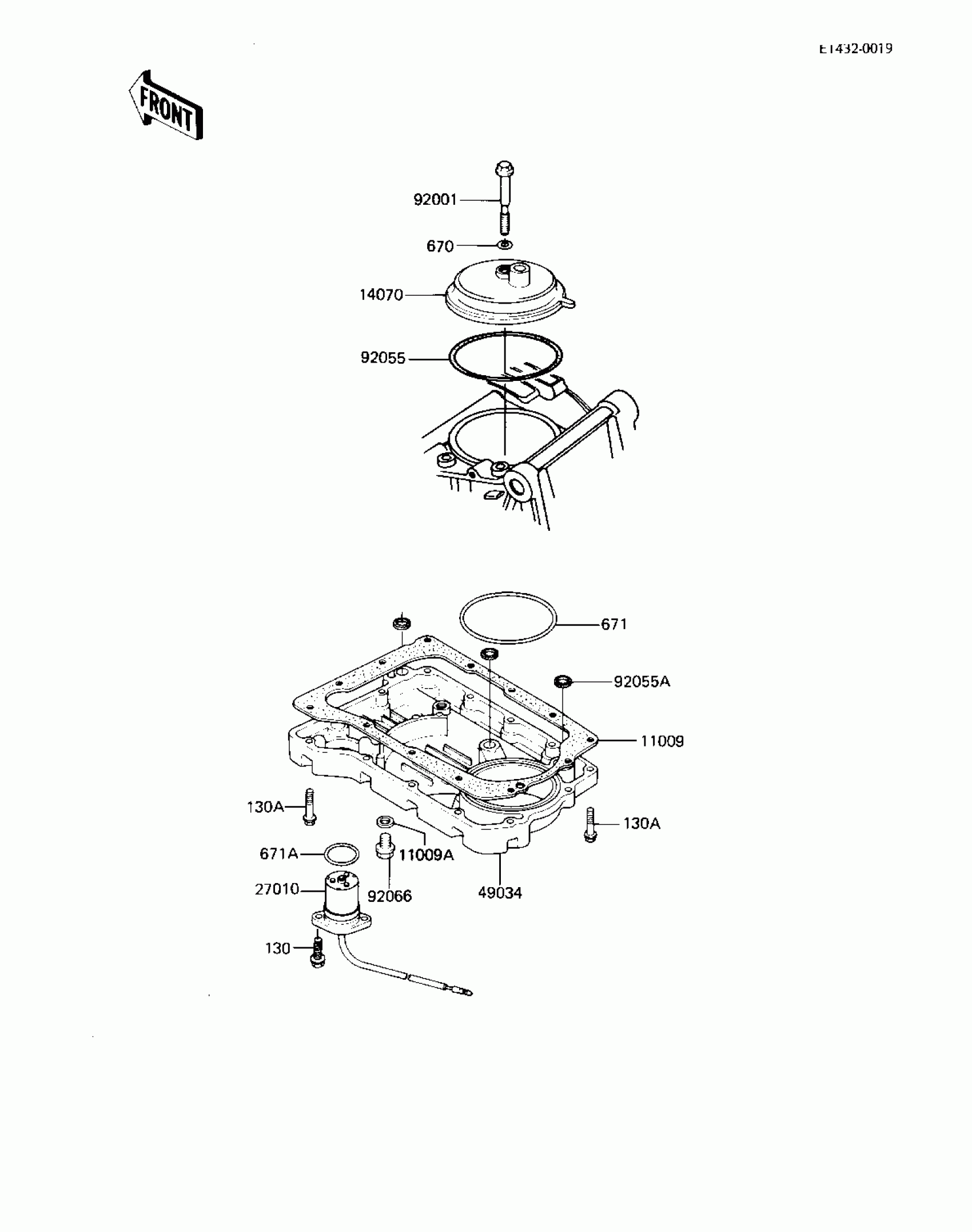

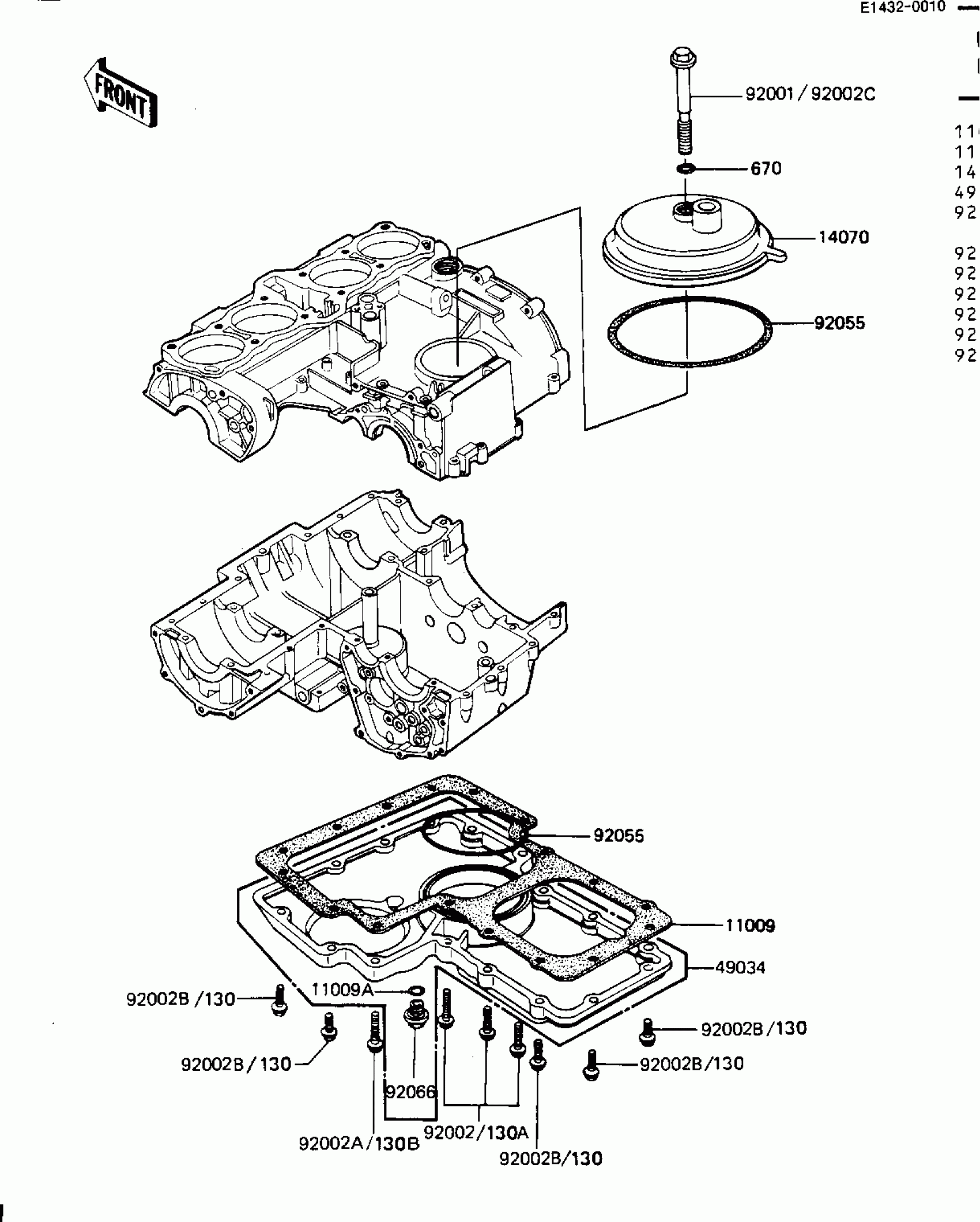

Kawasaki LTD Shaft BREATHER COVER/OIL PAN Diagram

Description

Price

11009

GASKET,OIL PAN

11060-1057

Unavailable

11009A

GASKET,12X22X2

92065-097

$0.66

14070

BODY-BREATHER

14070-1008

$40.47

27010

SWITCH,OIL LEVEL

27010-1057

$272.67

49034

PAN-OIL

49034-1021

$129.31

92001

BOLT,HEX HEAD,8X72

92003-107

Unavailable

92055

RING-O,91.6X3.4

92055-052

$7.52

92055A

RING-O,19.5MM

92055-077

$4.47

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

130

BOLT-FLANGED,6X16

130G0616

Unavailable

130A

BOLT,FLANGED,6X25

130G0625

Unavailable

670

O RING,8MM

670B1508

$1.00

671

O RING,90MM

671B2590

$7.54

671A

O RING,25MM

671E2525

$18.20
