1983 Kawasaki LTD Shaft Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

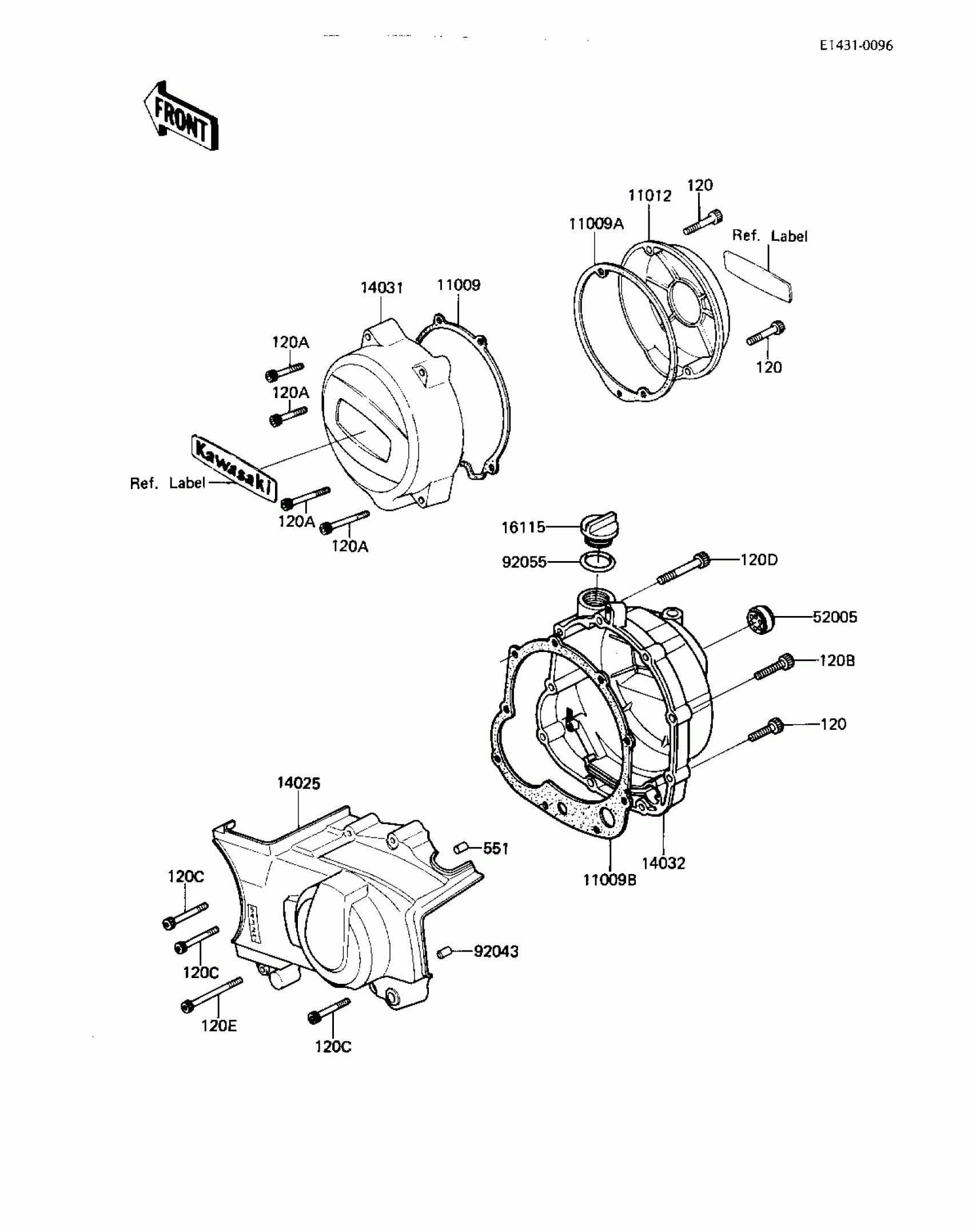

1983 Kawasaki LTD Shaft Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$10.93

In stock

11009A

1

$6.45

In stock

11009B

GASKET,CLUTCH COVER

11060-1054

1

$24.63

In stock

11012

CAP,PULSING COIL

11012-1266

1
Out of stock

14025

COVER,GEAR CASE,BUFF

14025-1572

1
Out of stock

14031

COVER-GENERATOR,BUFF

14031-1107

1
Out of stock

14032

COVER-CLUTCH,BUFF,FIN

14032-1104

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

120

BOLT-SOCKET,6X30

120P0630

1
Out of stock

120A

BOLT,SOCKET,6X40

120P0640

1
Out of stock

120B

BOLT-SOCKET,6X45

120P0645

1
Out of stock

120C

BOLT,SOCKET,6X50

120P0650

1
Out of stock

120D

BOLT-SOCKET,6X60

120P0660

1
Out of stock

120E

BOLT-SOCKET,6X80

120P0680

1
Out of stock

551

PIN-DOWEL,8X14

551A0814

1

$1.08

In stock
