1983 Kawasaki LTD Shaft Cylinder/pistons Diagram

← All diagrams

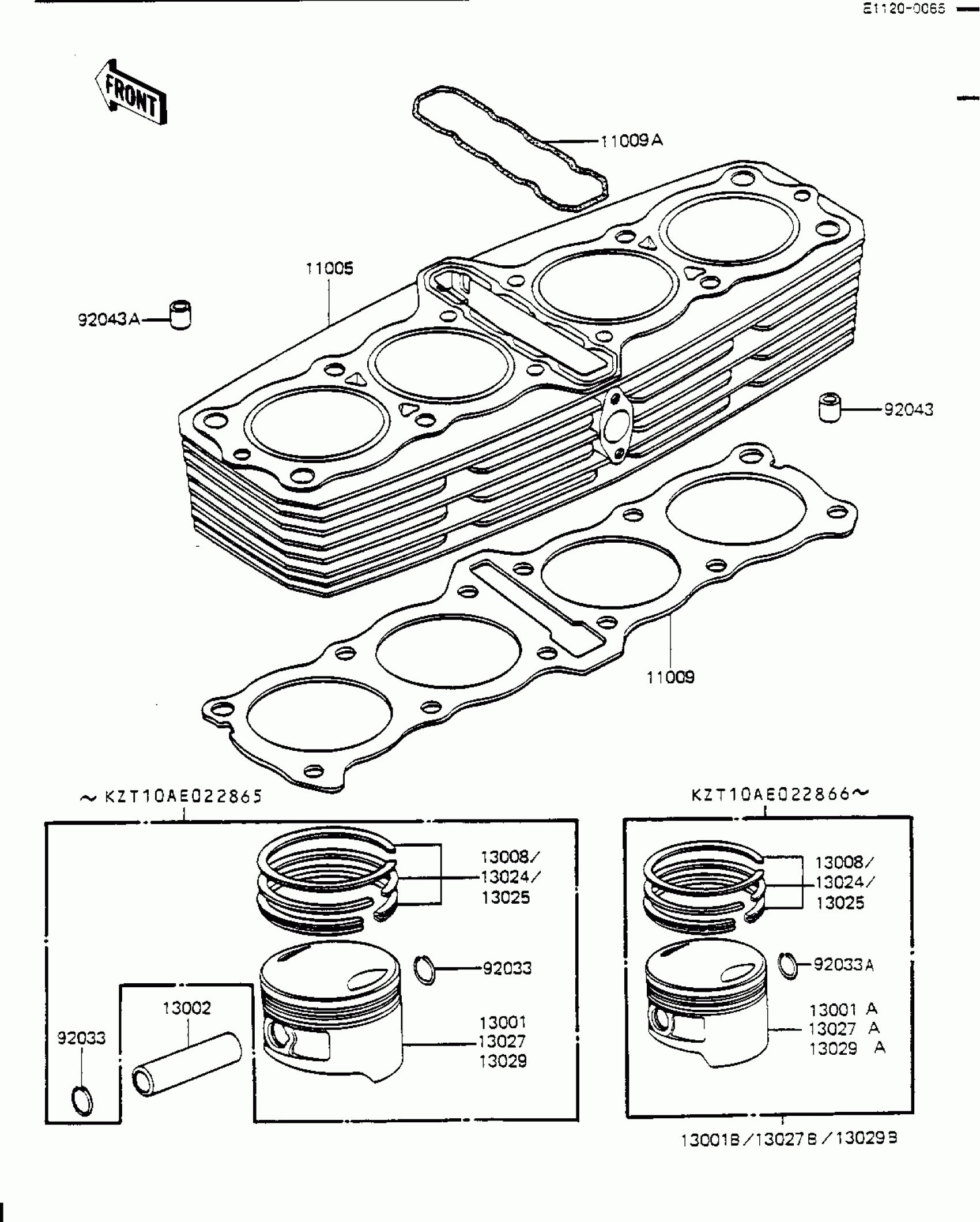

Find the part on the Cylinder/pistons diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki LTD Shaft Cylinder/pistons Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE SILV

11005-1311

1
Out of stock

11009

GASKET,CYLINDER BASE

11009-1932

1
Out of stock

13001

PISTON-ENGINE,STD

13001-1121

1
Out of stock

13002

PIN-PISTON

13002-1012

1
Out of stock

13008

RING-SET-PISTON,STD

13008-1009

1
Out of stock

13024

RING-SET-PISTON LL,O/S 1.00

13024-1010

1
Out of stock

13025

RING-SET-PISTON L,O/S 0.50

13025-1010

1
Out of stock

13027

PISTON-ENGINE LL,O/S 1.00

13027-1053

1
Out of stock

13029

PISTON-ENGINE L,O/S 0.50

13029-1055

1
Out of stock

92001

BOLT,FLANGED,6X28

92003-202

1
Out of stock

92015

NUT,CAP,6M/M

92015-1153

1
Out of stock

92033

RING-SNAP

92033-1050

1
Out of stock

92043

PIN,DOWEL,12X14

92042-031

1
Out of stock

92043A

PIN,OIL LINE

92043-1210

1
Out of stock

92055

RING-O,CYLINDER OIL LINE PIN

92055-1147

1
Out of stock
