1984 Kawasaki LTD Shaft Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 1984 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

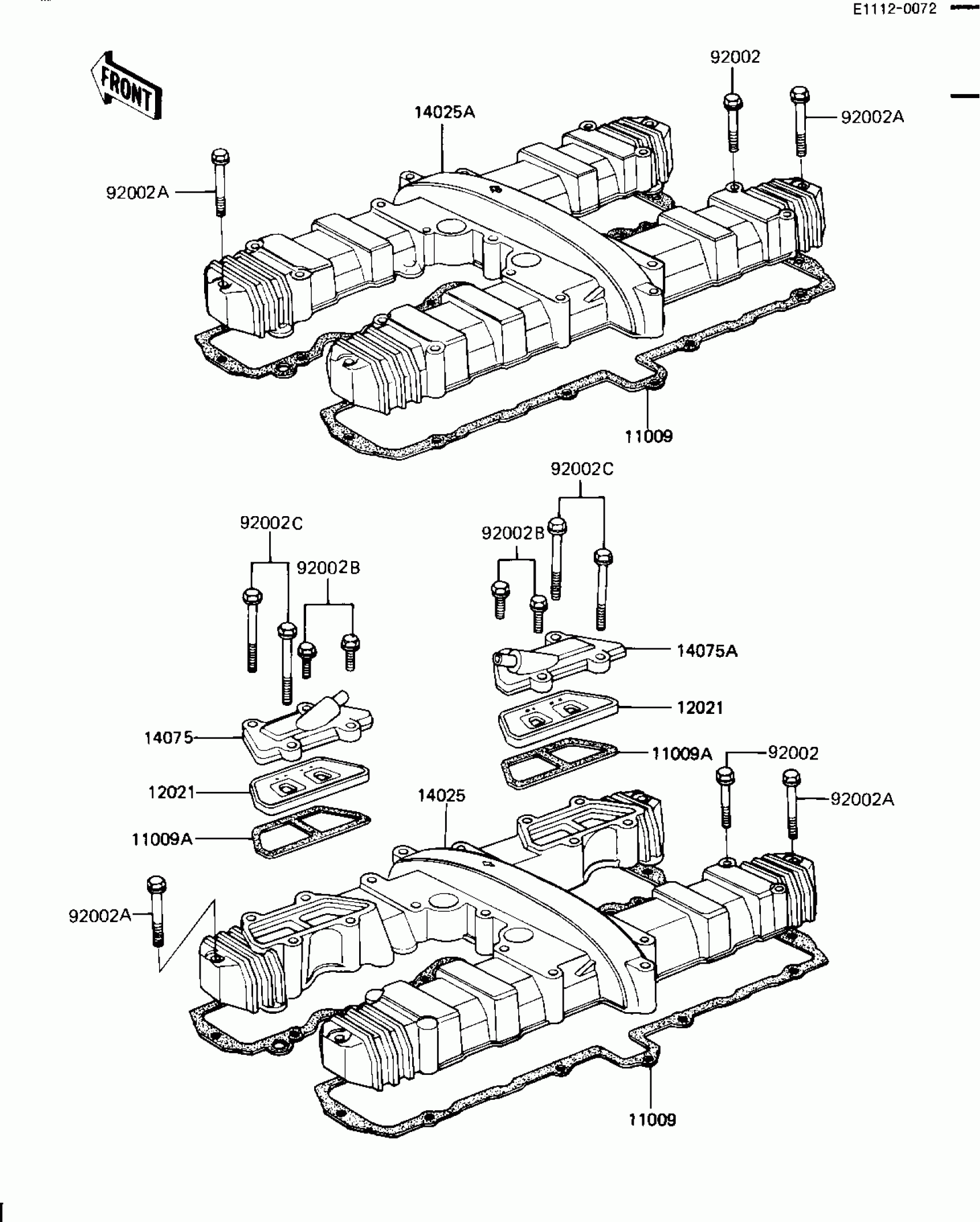

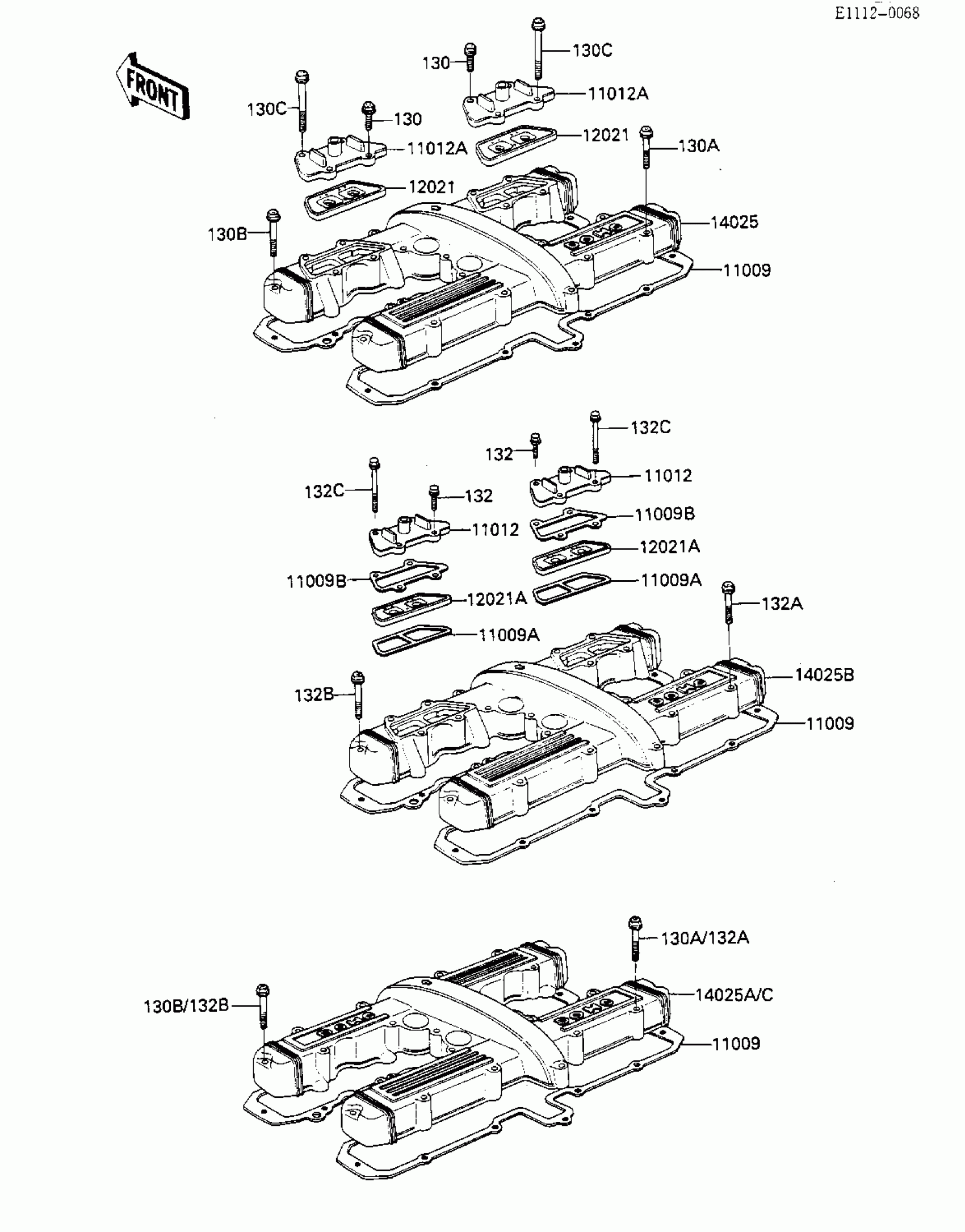

1984 Kawasaki LTD Shaft Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,CYLINDER HEAD

11009-1280

1
Out of stock

11009A

GASKET,REED VALVE,LWR

11009-1382

1
Out of stock

11009B

GASKET,REED VALVE,UPP

11060-1064

1
Out of stock

11012

CAP,REED VALVE,SILVER

11012-1193

1
Out of stock

12021A

VALVE-ASSY-REED

12021-1008

1
Out of stock

14025B

COVER,CYLINDER HEAD,S

14025-1569

1
Out of stock

14025C

COVER,CYLINDER HEAD,SILVE (Can

14025-1575

1
Out of stock

130A

BOLT,FLANGED,6X35

130H0635

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132E0620

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X35

132E0635

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X45

132E0645

1
Out of stock

132C

BOLT-FLANGED-SMALL

132E0665

1
Out of stock
