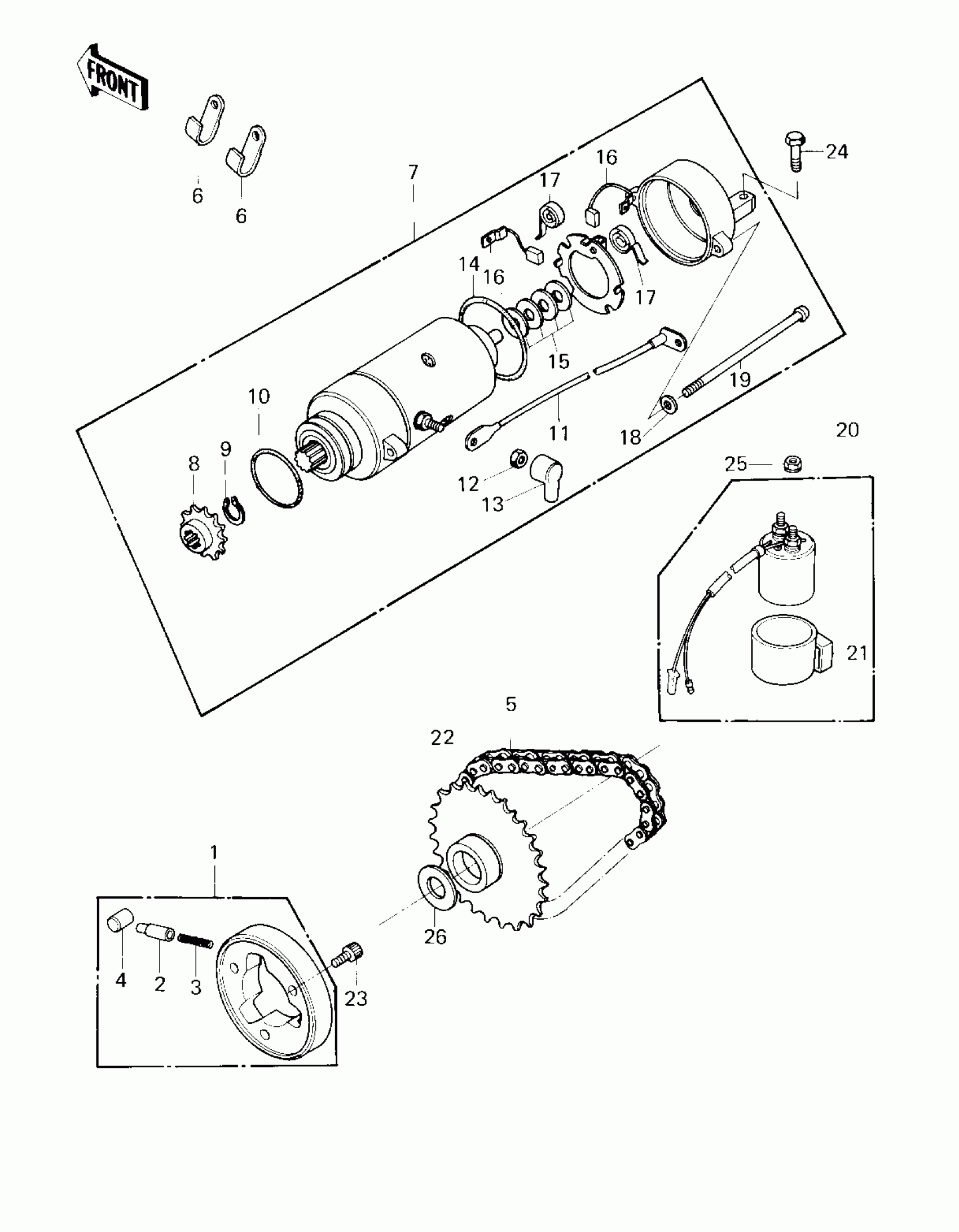

Kawasaki LTD II STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

1

CLUTCH ASSY,STARTER

13193-1001

Unavailable

2

PIN

92043-087

$9.70

3

SPRING

92081-110

$3.63

4

ROLLER,15X13

92122-004

$8.42

5

CHAIN,DYNAMO

21070-010

Unavailable

6

CLAMP,WIRING HARNESS

21126-008

$3.60

7

STARTER ELECTRIC

21163-1020

Unavailable

8

SPROCKET,STARTER MOT

21053-003

$34.00

9

RING-SNAP,17MM

92033-034

$10.31

10

RING-O,40MM

21027-008

Unavailable

11

WIRE,STARTER MOTOR LD

26010-045

Unavailable

12

NUT 6MM

312B0600

Unavailable

13

GROMMET,STARTER TERMINAL

21017-017

$7.18

14

RING-O,STARTER MOTOR

21027-003

Unavailable

15

WASHER,9.1X18X0.2

21025-011

$4.67

16

BRUSH,CARBON

21039-003

$42.66

17

SPRING-BRUSH

21040-003

Unavailable

18

WASHER SPRING 6MM

461F0600

Unavailable

19

UNAVAILABLE IN PRICE BOOK

21099-055

Unavailable

20

SWITCH ASSY,MAGNETIC

21164-005

$162.87

21

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

22

GEAR,STARTER CLUTCH

21170-003

$340.57

23

BOLT-SOCKET,8X16

120P0816

Unavailable

24

BOLT,FLANGED,6X25

130G0625

Unavailable

25

NUT,LOCK 6MM

92017-014

$5.74

26

SPACER

92026-1013

Unavailable
