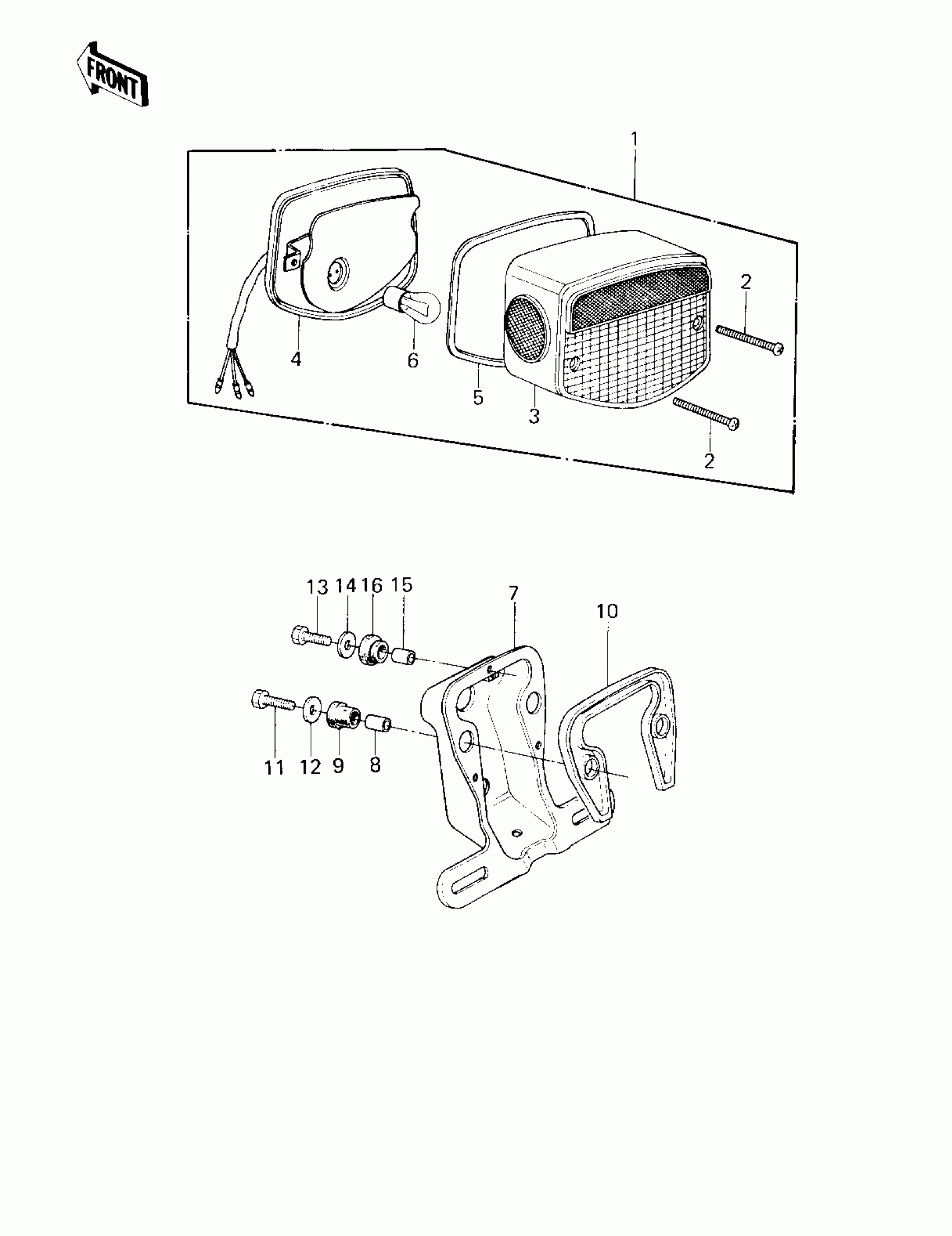

Kawasaki LTD II TAILLIGHT Diagram

#

Description
Price

1

LAMP-TAIL,"220-40781"MARK

23025-064

Unavailable

2

SCREW-PAN-CROS

220R0460

Unavailable

3

LENS,TAIL LAMP

23026-034

$78.61

4

BODY-COMP-TAIL LAMP

23027-041

$130.76

5

GASKET,TAIL LAMP LENS

23028-021

$11.83

6

BULB,12V 27/8W

92069-059

$6.19

7

BRACKET,TAIL LAMP

23036-1011

$100.83

8

COLLAR,6.8X10X14.5

92027-156

$3.81

9

DAMPER RUBBER

92075-1092

Unavailable

10

DAMPER RUBBER,TAIL

92075-1103

$12.19

11

BOLT 6X22

112B0622

Unavailable

12

WASHER,6.5X20X1.6

92022-125

$1.08

13

BOLT-UPSET,6X20

112G0620

Unavailable

14

WASHER,6.5X20X1.6

92022-125

$1.08

15

COLLAR 6.8X10X10.5

92027-120

$3.81

16

DAMPER RUBBER

92075-112

$3.43
