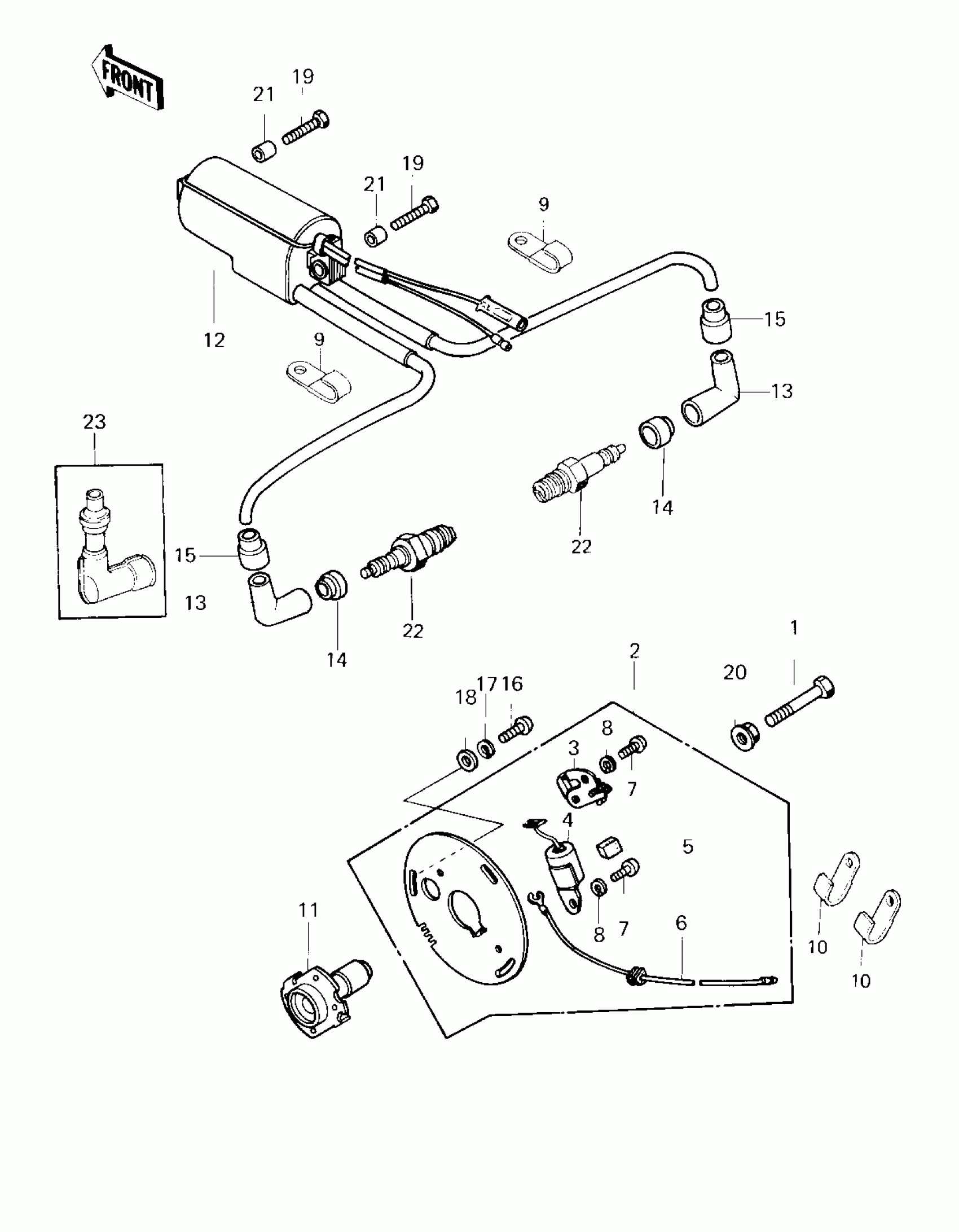

Kawasaki LTD II IGNITION Diagram

#

Description
Price

1

BOLT,8X63

92001-1397

$3.91

2

BREAKER ASSY,CONTACT

21008-1013

Unavailable

3

BREAKER,CONTACT

21008-027

$73.02

4

CONDENSER

21013-1002

Unavailable

5

BRUSH,OIL

21019-005

Unavailable

6

WIRING HARNESS,BRAKE

26001-1040

$28.49

7

SCREW PAN HEAD 4X6

220B0406

$1.25

8

WASHER SPRING 4MM

461F0400

Unavailable

9

CLAMP,WIRING HARNESS

21126-008

$3.60

10

CLAMP,WIRING HARNESS

21126-008

$3.60

11

ADVANCER,AUTO TIMING

21148-1004

Unavailable

12

COIL-IGNITION

21121-1174

$330.51

13

CAP-SPARK PLUG,RTFM20

21130-1007

Unavailable

14

GROMMET,PLUG CAP

21131-004

$10.81

15

GROMMET,HIGH TENSION

21132-005

$3.25

16

SCREW-PAN-CROS

220B0512

$0.47

17

WASHER SPRING 5MM

461F0500

Unavailable

18

WASHER PLAIN 5MM

410B0500

Unavailable

19

BOLT, IGNITION COIL

92003-170

Unavailable

20

WASHER,BREAKER GOVERNOR

92022-244

$13.39

21

COLLAR,IGNITION COIL

92027-276

Unavailable

22

SPARK PLUG B6ES

B6ES

Unavailable

23

CAP-ASSY-PLUG

21160-005

$52.69
