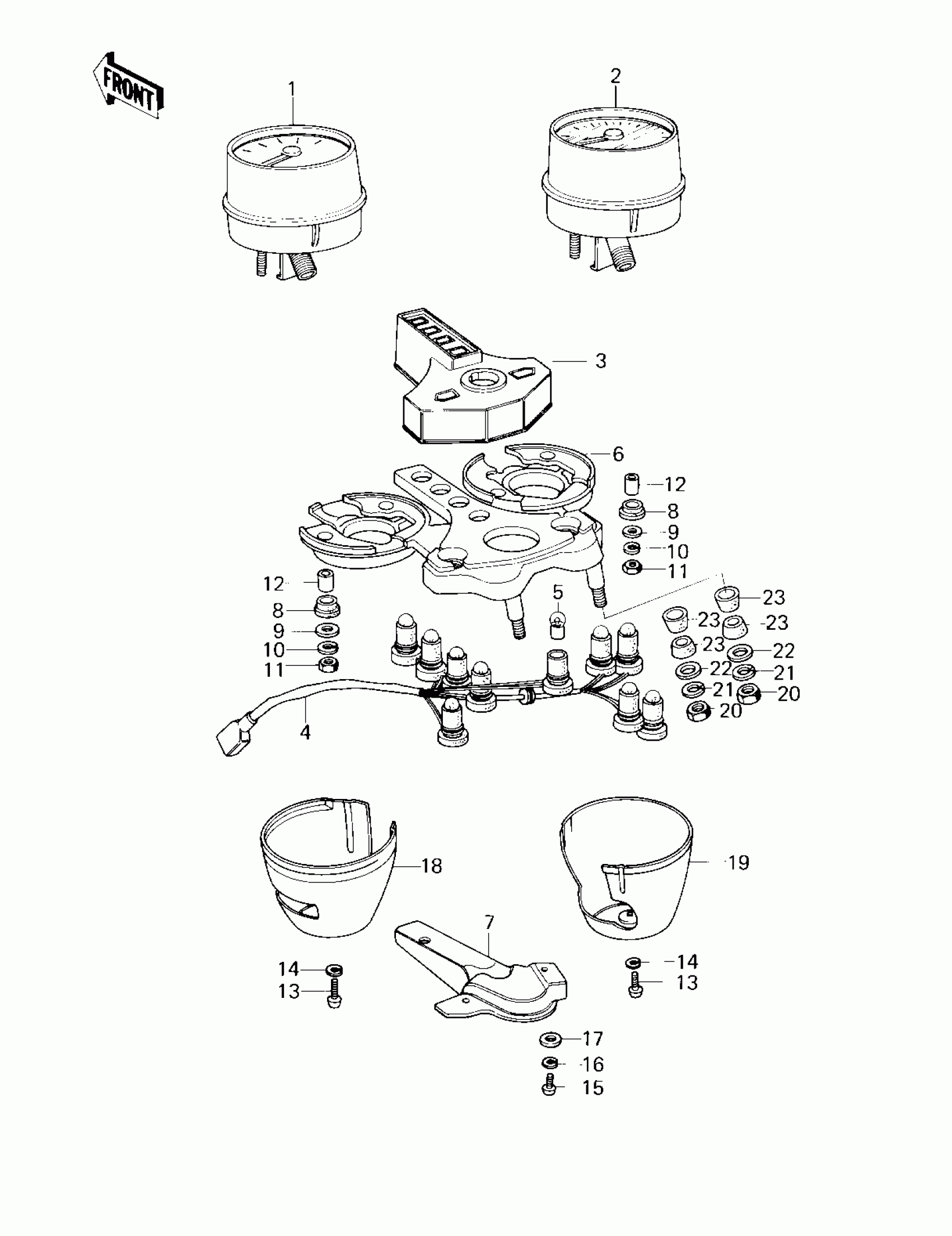

Kawasaki LTD II METERS Diagram

#

Description
Price

1

SPEEDOMETER ASSY,MPH

25005-1068

$537.79

1

SPEEDOMETER ASSY,KPH (Canada)

25005-1013

$587.44

2

TACHOMETER ASSY

25015-1008

$328.07

3

COVER,METER,INDICATE

25023-015

$224.97

4

SOCKET,SPEEDOMETER

25011-049

$192.91

5

BULB 12V 3W

92069-018

$3.71

6

BRACKET,METER

25008-045

Unavailable

7

COVER,METER BRACKET

25024-006

$29.10

8

RUBBER,METER

92075-172

$11.85

9

WASHER,PLAIN,5MM

92022-241

Unavailable

10

WASHER SPRING 5MM

461F0500

Unavailable

11

NUT-HEX,5MM

312B0500

Unavailable

12

COLLAR,METER

92027-211

Unavailable

13

SCREW-PAN-CROS,3X8

220B0308

$0.54

14

WASHER SPRING 3MM

461F0300

Unavailable

15

SCREW-PAN-CROS,3X8

220B0308

$0.54

16

WASHER SPRING 3MM

461F0300

Unavailable

17

WASHER-PLAIN-SMALL,3MM

410B0300

Unavailable

18

COVER,SPEEDOMETER

25012-023

Unavailable

19

COVER,TACHOMETER

25012-024

$224.79

20

NUT,8MM

311B0800

Unavailable

21

WASHER SPRING 8MM

461F0800

Unavailable

22

WASHER FUEL TANK FIT

92022-035

$3.29

23

DAMPER RUBBER

92075-080

$7.89
