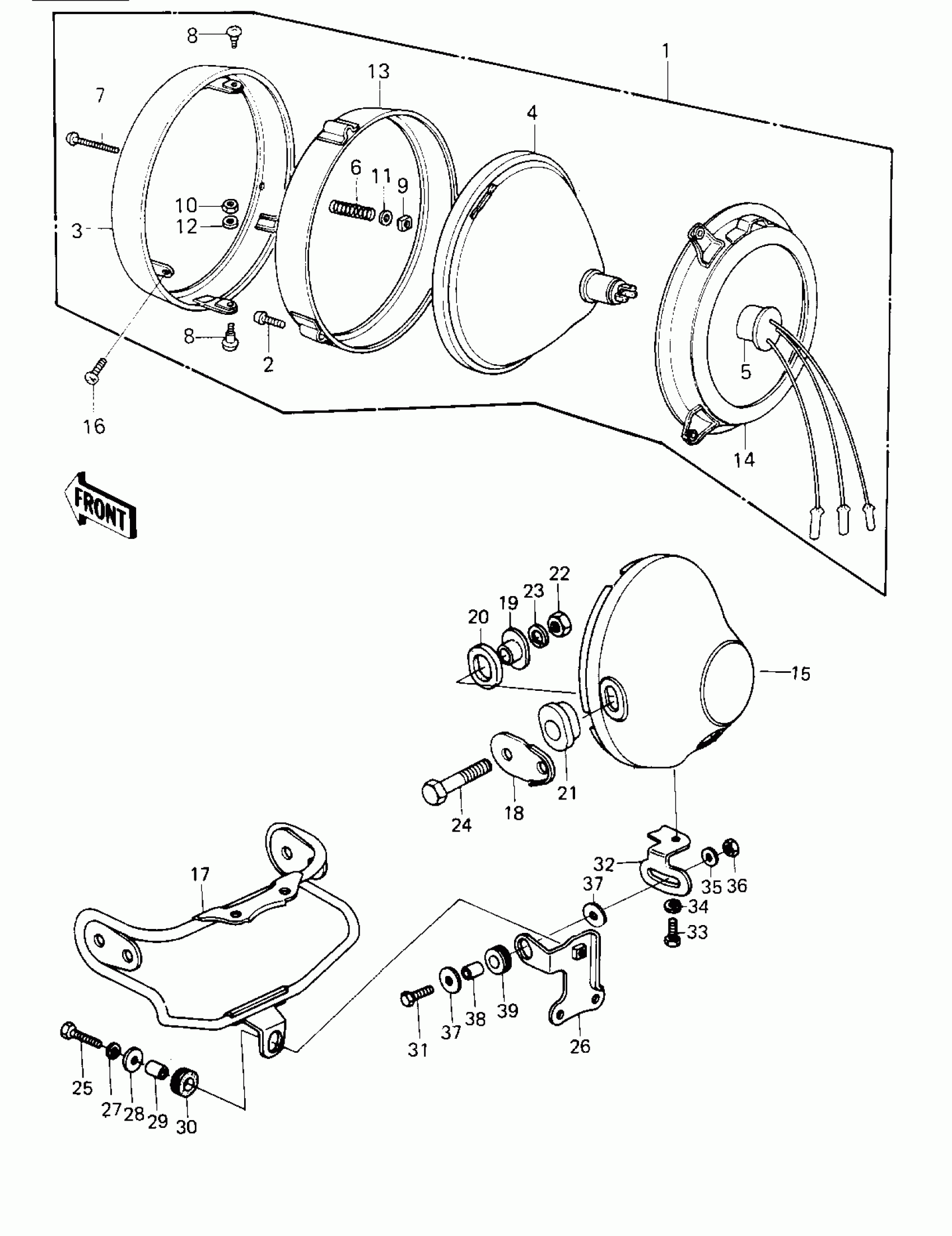

Kawasaki LTD II HEADLIGHT Diagram

#

Description
Price

1

LAMP UNIT,HEAD

23003-017

$409.20

2

SCREW-PAN-CROS

220B0312

Unavailable

3

RIM,HEAD LAMP

23006-038

Unavailable

4

SEALD BEAM UNIT

23007-041

Unavailable

5

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

6

SPRING,FOCUS ADJUSTING

23014-005

$3.19

7

SCREW,FOCUS ADJUSTING

23019-021

$4.17

8

SCREW,PAN HEAD,5X12

23019-023

$4.78

9

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

10

NUT,5MM

23020-023

Unavailable

11

WASHER,4.1X8X0.8

23021-004

Unavailable

12

WASHER,PLAIN,5MM

23021-012

Unavailable

13

RING,HEAD LAMP MOUNT

23072-001

$45.03

14

RING,HEAD LAMP MOUNT

23074-001

$65.88

15

BODY-COMP-HEAD LAMP

23005-1016

$235.99

16

SCREW,SPECIAL,5X14

23019-022

$1.54

17

BRACKET HEAD LAMP

11034-1365

Unavailable

18

PLATE,METER BRACKET

13169-1141

Unavailable

19

COLLAR,HEAD LIGHT

23052-011

Unavailable

20

DAMPER RUBBER

23066-021

Unavailable

21

DAMPER RUBBER

23066-022

Unavailable

22

NUT-HEX-FINE,10MM

315B1000

Unavailable

23

WASHER SPRING 10MM

461F1000

Unavailable

24

BOLT,10X35

92007-024

Unavailable

25

BOLT-UPSET

112G0625

Unavailable

26

BRACKET,METER

11034-1366

Unavailable

27

WASHER SPRING 6MM

461F0600

Unavailable

28

WASHER,6.5X20X1.6

92022-125

$1.08

29

COLLAR

92027-241

$4.93

30

DAMPER RUBBER,RR FENR

92075-209

$3.57

31

BOLT-UPSET

112G0630

Unavailable

32

BRACKET

11034-1676

Unavailable

33

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

34

WASHER SPRING 8MM

461F0800

Unavailable

35

WASHER PLAIN 6MM

411B0600

Unavailable

36

NUT,LOCK 6MM

92017-014

$5.74

37

WASHER,6.5X20X1.6

92022-125

$1.08

38

COLLAR

92027-241

$4.93

39

DAMPER RUBBER,RR FENR

92075-209

$3.57
