1995 Suzuki LT80S OIL Tank Diagram

← All diagrams

Find the part on the OIL Tank diagram for your 1995 Suzuki LT80S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

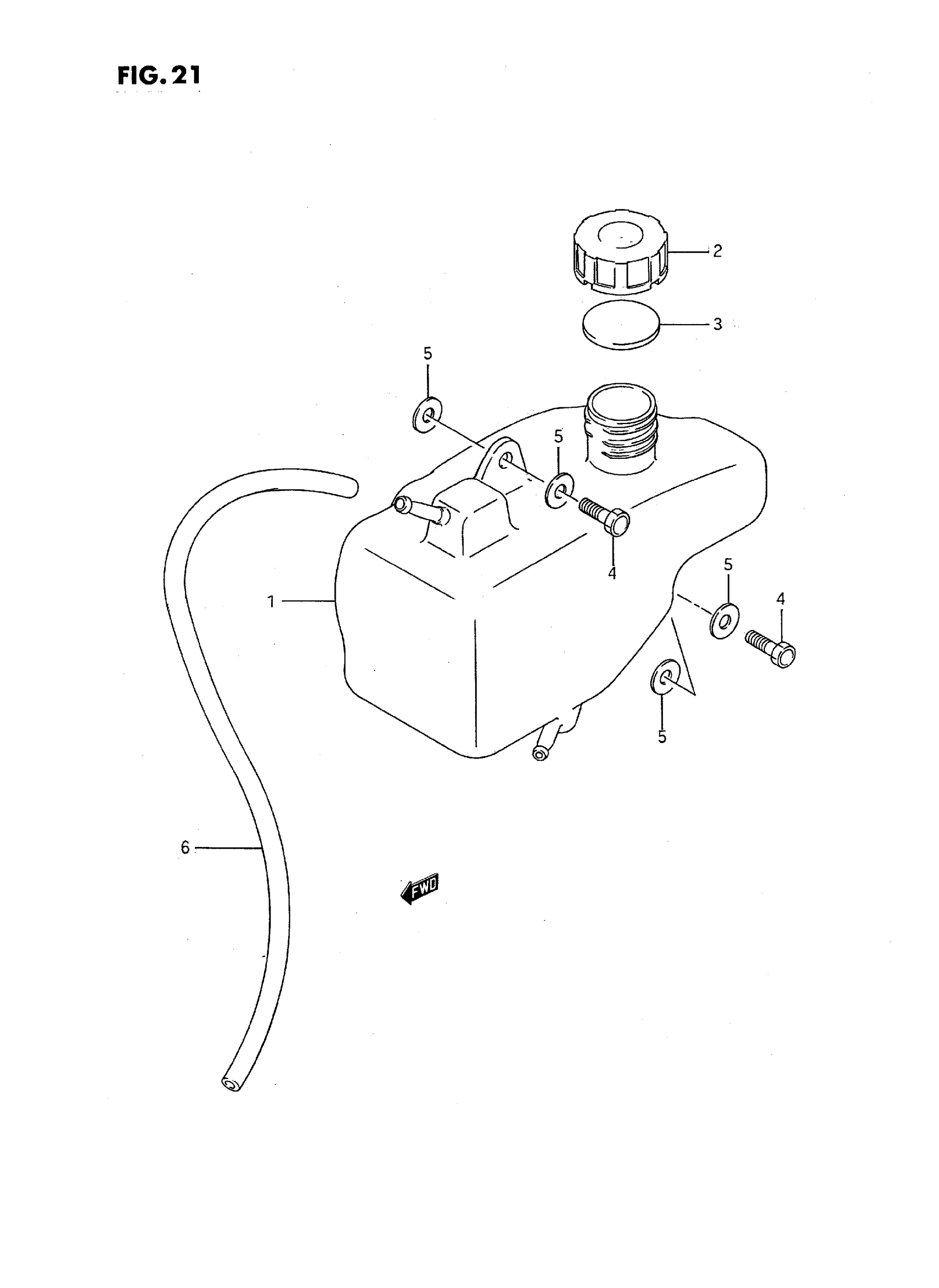

1995 Suzuki LT80S OIL Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL

44611-40B00

1
Out of stock

2

CAP, OIL TANK

44651-05003

1
Out of stock

3

OIL TANK CAP GA This part replaces 44661-27000.

44661-27001

1
Out of stock

4

BOLT

01500-06207

2
Out of stock

5

WASHER

09160-06019

4
Out of stock

6

HOSE | MODEL H/J This part replaces 09352-50823-890.

09352-50005-00B

1
Out of stock

6

HOSE | MODEL K This part replaces 09352-50823-620.

09352-50005-00B

1
Out of stock

6

HOSE | MODEL L/M/N/P/R This part replaces 09352-50823-00A.

09352-50005-00B

1
Out of stock

6

HOSE | MODEL S This part replaces 09352-50823-00B.

09352-50005-00B

1
Out of stock
