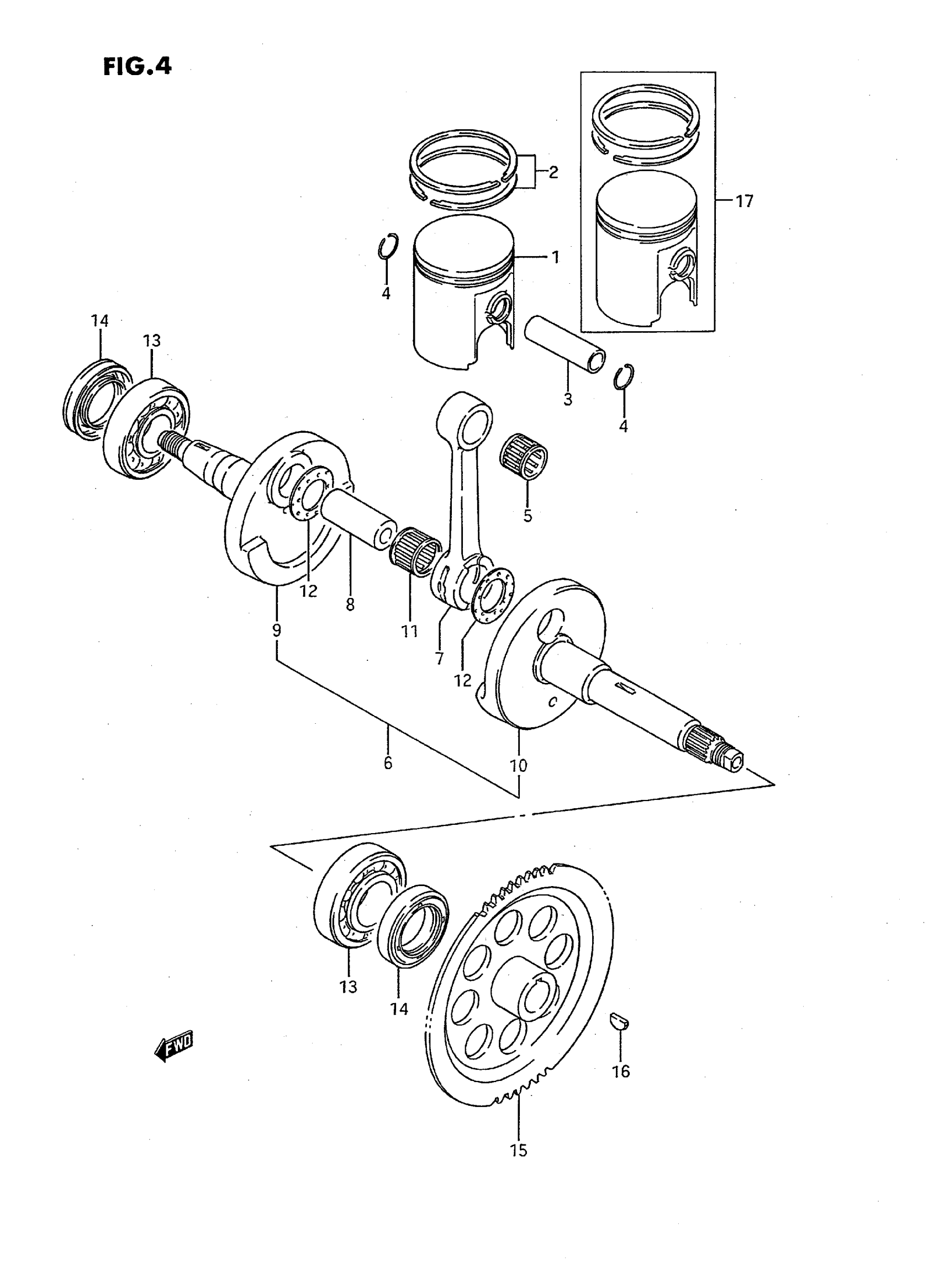

Suzuki LT80S (1995) CRANKSHAFT Diagram

#

Description
Price

1

PISTON

12110-40B01-0F0

$56.68

2

RING SET, PISTON

12140-40B30

$32.40

3

PIN, PISTON

12151-35400

$7.99

4

SNAP RING

09381-12001

$1.43

5

BEARING (12X16X16) This part replaces 09263-12020.

09263-12023

$9.20

6

CRANKSHAFT ASSY | MODEL H This part replaces 12200-40B00.

12200-40B02

$399.03

6

CRANKSHAFT ASSY | MODEL J/K/L/M/N/P/R/S; Includes Item(s) 7 - 12

12200-40B02

$399.03

7

ROD, CONNECTING

12161-07901

$90.80

8

PIN, CRANK

12211-07902

$19.60

9

CRANKSHAFT, RH

12221-29A00

Unavailable

10

CRANKSHAFT, LH | MODEL H This part replaces 12261-40B00.

12261-40B01-0A0

Unavailable

10

CRANKSHAFT, LH | MODEL J/K/L/M/N/P/R/S

12261-40B01-0A0

Unavailable

11

BEARING (17X23X14) | MODEL H/J/K/L/M/N/P This part replaces 09263-17010.

09263-17022

$17.06

11

BEARING | MODEL R/S

09263-17022

$17.06

12

WASHER

09160-17022

$2.95

13

BEARING (20X47X14) | MODEL H/J/K/L/M/N This part replaces 09262-20085-0A0.

09262-20121

$31.06

13

BEARING, CRANKSHAFT | MODEL P/R/S

09262-20121

$31.06

14

OIL SEAL, RH | MODEL H/J/K/L/M/N/P/R This part replaces 09283-20043.

09283-20034

$4.66

14

OIL SEAL | MODEL S

09283-20034

$4.66

15

GEAR, STARTER (NT:67) | MODEL H This part replaces 12620-40B00.

12620-29A11

$94.45

15

GEAR, STARTER (NT:67) | MODEL J/K/L/M/N/P This part replaces 12620-40B01.

12620-29A11

$94.45

15

GEAR, STARTER | MODEL R/S

12620-29A11

$94.45

16

KEY

08341-31039

$1.89

17

PISTON SET (OS:0.5) | OPT

12100-40B00-050

$115.63

17

PISTON SET (OS:1.0) | OPT

12100-40B00-100

$117.83
