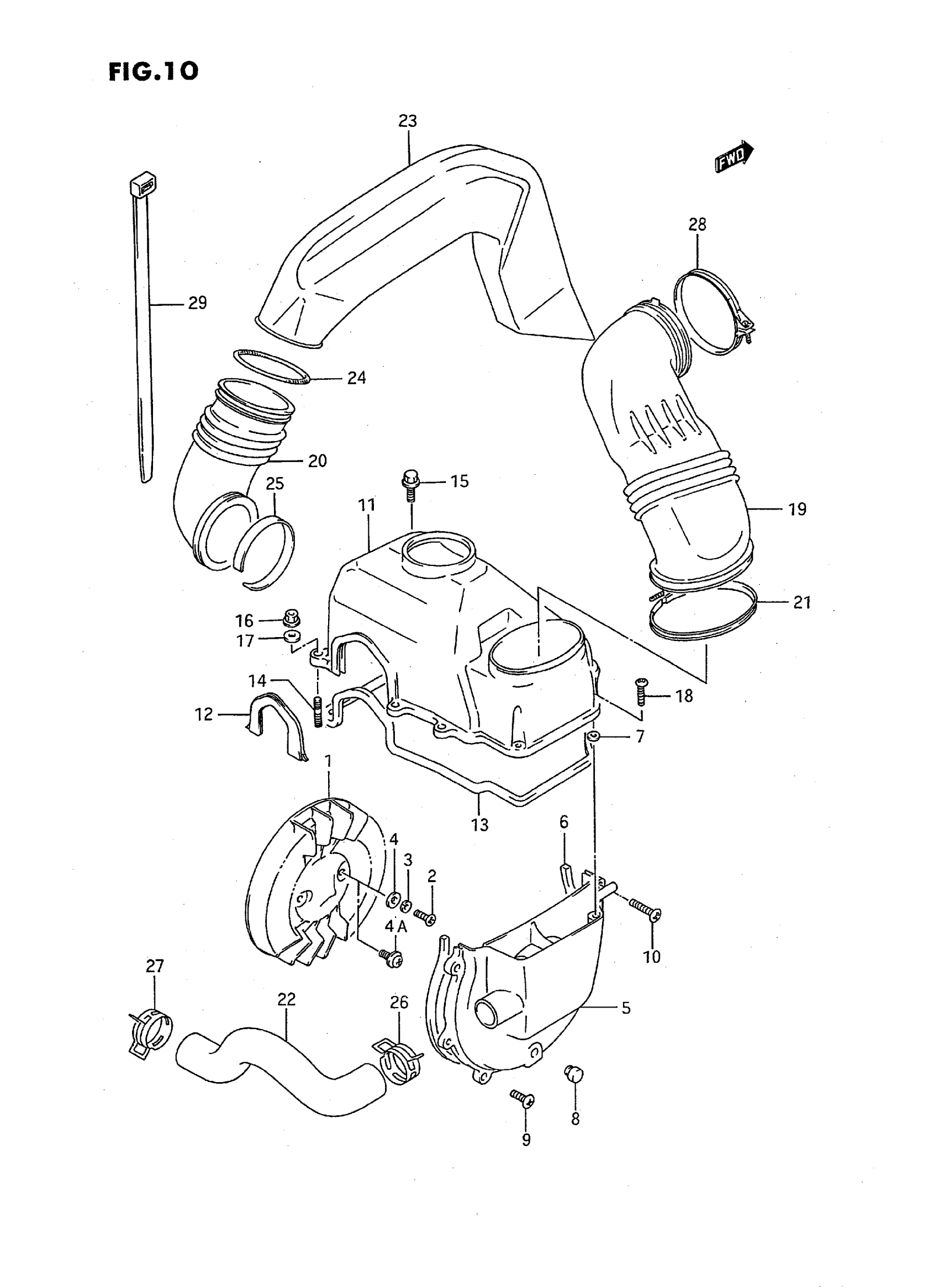

Suzuki LT80S (1995) COOLING FAN Diagram

#

Description
Price

1

FAN, COOLING

17110-40B00

$18.28

2

SCREW | MODEL H/J/K/L/M/N

02112-06167

$1.43

3

LOCK WASHER | MODEL H/J/K/L/M/N This part replaces 08321-21067.

08321-01067

$1.83

4

WASHER | MODEL H/J/K/L/M/N This part replaces 08322-21067.

08322-01067

$1.86

4A

SCREW | MODEL P/R/S This part replaces 02112-16123.

02112-1612B

$3.30

5

COVER, COOLING FAN (YELLOW) | MODEL H/J

17121-40B00

Unavailable

5

COVER, COOLING FAN (BLUE) | MODEL K/L/M/N/P

17121-40B10

Unavailable

5

COVER, COOLING FAN (YELLOW) | MODEL R/S

17121-40B00

Unavailable

6

GASKET | L:800->435

17132-40B00

$5.75

7

GASKET

17125-40B00

$2.06

8

PLUG, DRAIN

17124-40B00

$3.01

9

SCREW | MODEL H/J This part replaces 02142-06164.

02142-0616A

$1.37

9

SCREW | MODEL K/L/M/N/P

02142-06167

$1.37

9

SCREW | MODEL R/S This part replaces 02142-06163.

02142-0616A

$1.37

10

SCREW (6X25) | MODEL H/J

09125-06055

$2.37

10

SCREW, BODY COVER UPPER | MODEL K/L/M/N/P This part replaces 09125-06038.

09125-06055

$2.37

10

SCREW | MODEL R/S This part replaces 02142-06253.

02142-0625A

$1.43

11

COWLING, CYLINDER (YELLOW) | MODEL H/J

17131-40B00

Unavailable

11

COWLING, CYLINDER (BLUE) | MODEL K/L/M/N/P

17131-40B10

Unavailable

11

COWLING, CYLINDER (YELLOW) | MODEL R/S

17131-40B00

Unavailable

12

SEAL

17140-40B00

$26.26

13

GASKET

17132-40B00

$5.75

14

STUD BOLT | MODEL H/J This part replaces 01421-06205.

01421-0620A

$1.89

14

STUD BOLT | MODEL K/L/M/N/P/R/S This part replaces 01421-06208.

01421-0620A

$1.89

15

BOLT | MODEL H/J This part replaces 01517-06164.

01550-0616A

$1.97

15

BOLT | MODEL K/L/M/N/P This part replaces 01517-06167.

01550-06167

$2.22

15

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

$1.97

16

NUT | MODEL H/J This part replaces 08319-31065.

08319-3106A

$2.01

16

NUT | MODEL K/L/M/N/P/R/S

08319-31067

$2.01

17

WASHER

08211-06121

$1.56

18

SCREW | MODEL H/J This part replaces 03541-04355.

03541-0435B

$2.35

18

SCREW | MODEL K/L/M/N/P This part replaces 03541-04358.

03541-0435B

$2.35

18

SCREW | MODEL R/S This part replaces 03541-04353.

03541-0435B

$2.35

19

DUCT, CYLINDER COOLING IN

17151-40B01

$68.80

20

DUCT, CYLINDER COOLING OUT

17181-40B01

$31.78

21

CLAMP

17155-40B00

$9.83

22

DUCT, BELT COOLING OUT

17171-40B01

Unavailable

23

DUCT

17183-40B00

$70.75

24

CLAMP

13826-38300

$3.26

25

RING

17182-40B00

$8.73

26

CLIP This part replaces 09401-30402.

09401-30404

$4.38

27

CLIP This part replaces 09401-34402.

09401-33401

$6.73

28

CLAMP | MODEL H/J/K/L/M/N/P This part replaces 09402-82207.

09402-82208

$5.58

28

CLAMP | MODEL R/S This part replaces 09402-82202.

09402-82208

$5.58

29

CLAMP (L:386)

09407-38401

$10.70
