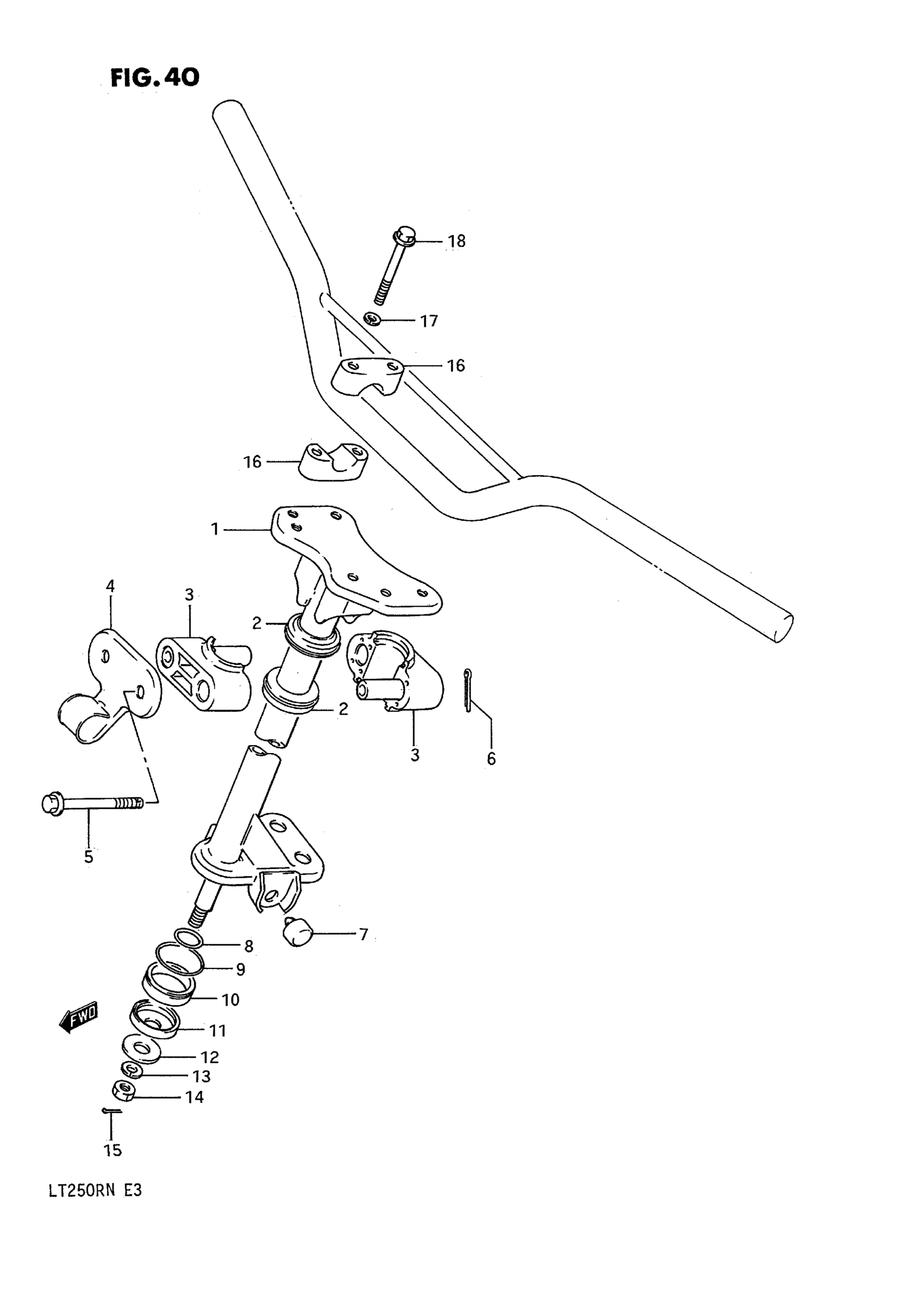

Find the part on the Steering Shaft diagram for your 1992 Suzuki LT250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Suzuki LT250R Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, STEERING

51650-19A00

1
Out of stock

2

DUST SEAL, STEERING

51678-24500

2
Out of stock

3

HOLDER,STEERING SHAFT

51670-24500

2
Out of stock

4

REINF, STEERING HOLDER

51681-19A00

1
Out of stock

5

BOLT

09103-08150

2
Out of stock

6

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

7

CUSHION, STEERING SHAFT

09321-08020

2
Out of stock

8

O RING

09280-17003

1
Out of stock

9

SNAP RING

09380-35001

1
Out of stock

10

SEAL,DUST This part replaces 51662-19A01.

51662-05G01

1
Out of stock

11

SEAL,DUST This part replaces 51663-24500.

51663-05G01

1
Out of stock

12

WASHER (12.5X32X4.5) This part replaces 09160-12043.

09160-12094

1
Out of stock

13

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

1
Out of stock

14

NUT This part replaces 08319-21125.

08319-2112B

1
Out of stock

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

16

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

4
Out of stock

18

BOLT | MODEL F/G/H/J/K This part replaces 01107-08555.

01500-0855B

4
Out of stock

18

BOLT | MODEL L/M/N This part replaces 01137-08555.

01570-0855B

4
Out of stock
