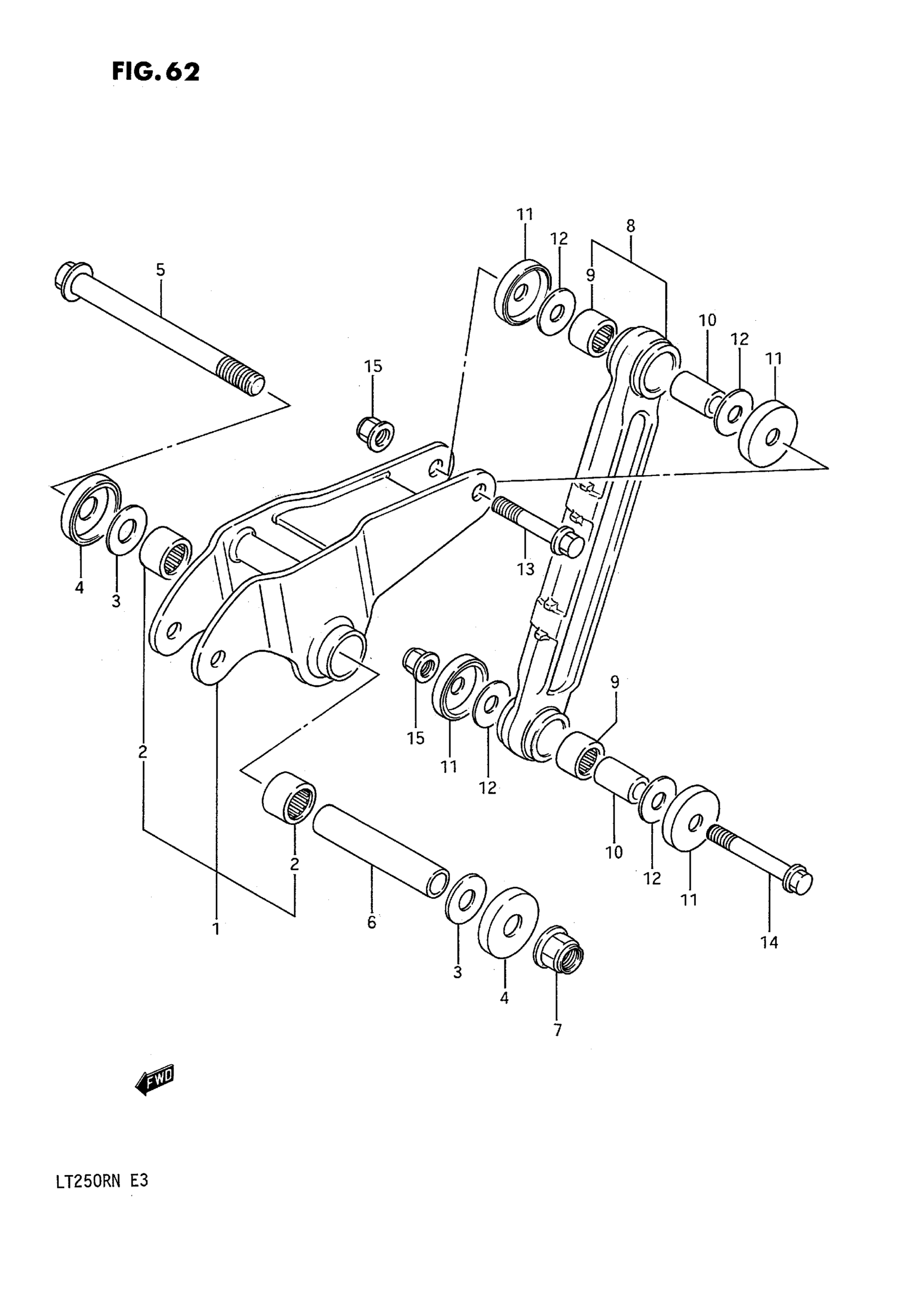

Suzuki LT250R (1992) CUSHION LEVER (MODEL H/J/K/L) Diagram

LEVER SET, REAR CUSHION | Includes Item(s) 2

62600-01870

Unavailable

BEARING

09263-17019

Unavailable

THRUST WASHER

08211-12285

$4.53

SEAL This part replaces 62624-44B00.

62624-44B01

$12.20

SHAFT

62621-20402

Unavailable

SPACER

62646-14A00

Unavailable

NUT This part replaces 08319-31128.

08319-3112A

$3.38

ROD SET, REAR CUSHION | Includes Item(s) 9

62600-01880

Unavailable

BEARING

09263-17033

$30.52

SPACER

62656-01C00

Unavailable

COVER This part replaces 62647-01C00.

62624-08D01

$8.22

THRUST WASHER

08211-10301

$4.28

BOLT, LOWER (10X54) This part replaces 62648-01B00.

62311-28E00

$5.82

BOLT, LOWER

62311-08300

Unavailable

NUT

08319-31107

$2.73
