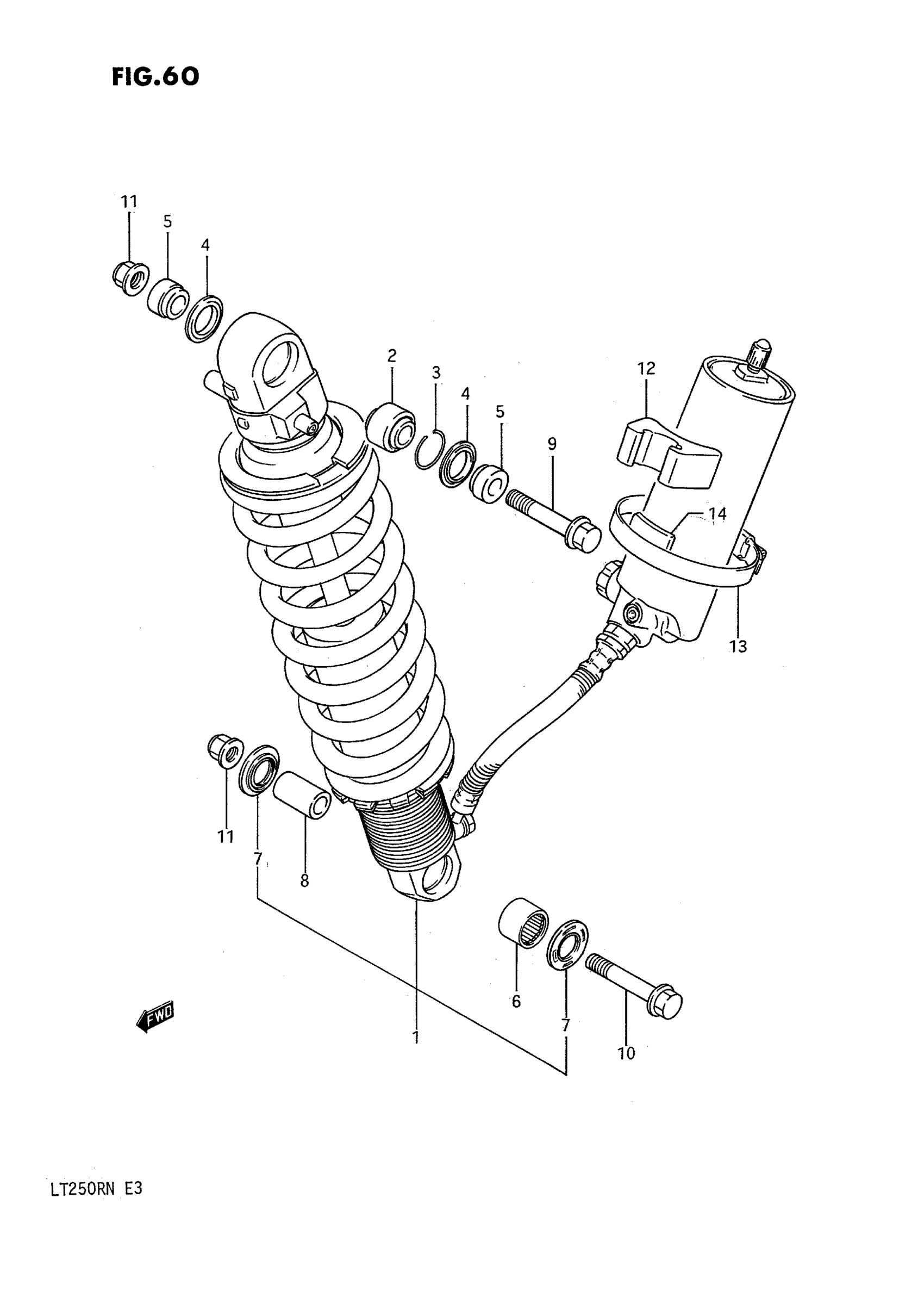

Suzuki LT250R (1992) REAR SHOCK ABSORBER (MODEL H/J/K/L) Diagram

#

Description

Price

1

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL H This part replaces 62100-01C00-163.

62100-01C10-163

Unavailable

1

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL J/K/L; Includes Item(s) 2 - 8

62100-01C10-163

Unavailable

2

BEARING, UPPER

62175-00B00

$57.58

3

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$2.06

4

SEAL, DUST

62226-14520

Unavailable

5

COLLAR

62684-14520

Unavailable

6

BEARING, LOWER

62188-01C00

Unavailable

7

SEAL, DUST

62189-01C00

$10.90

8

COLLAR

62187-01C00

Unavailable

9

BOLT, UPPER

09103-10064

$4.29

10

BOLT, LOWER

09103-10040

$5.43

11

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21

12

CUSHION, TANK

62331-19A00

Unavailable

13

CLAMP, TANK

09402-95502

$21.60

14

CUSHION, TANK This part replaces 62423-01C00.

53146-20C00

$7.95
