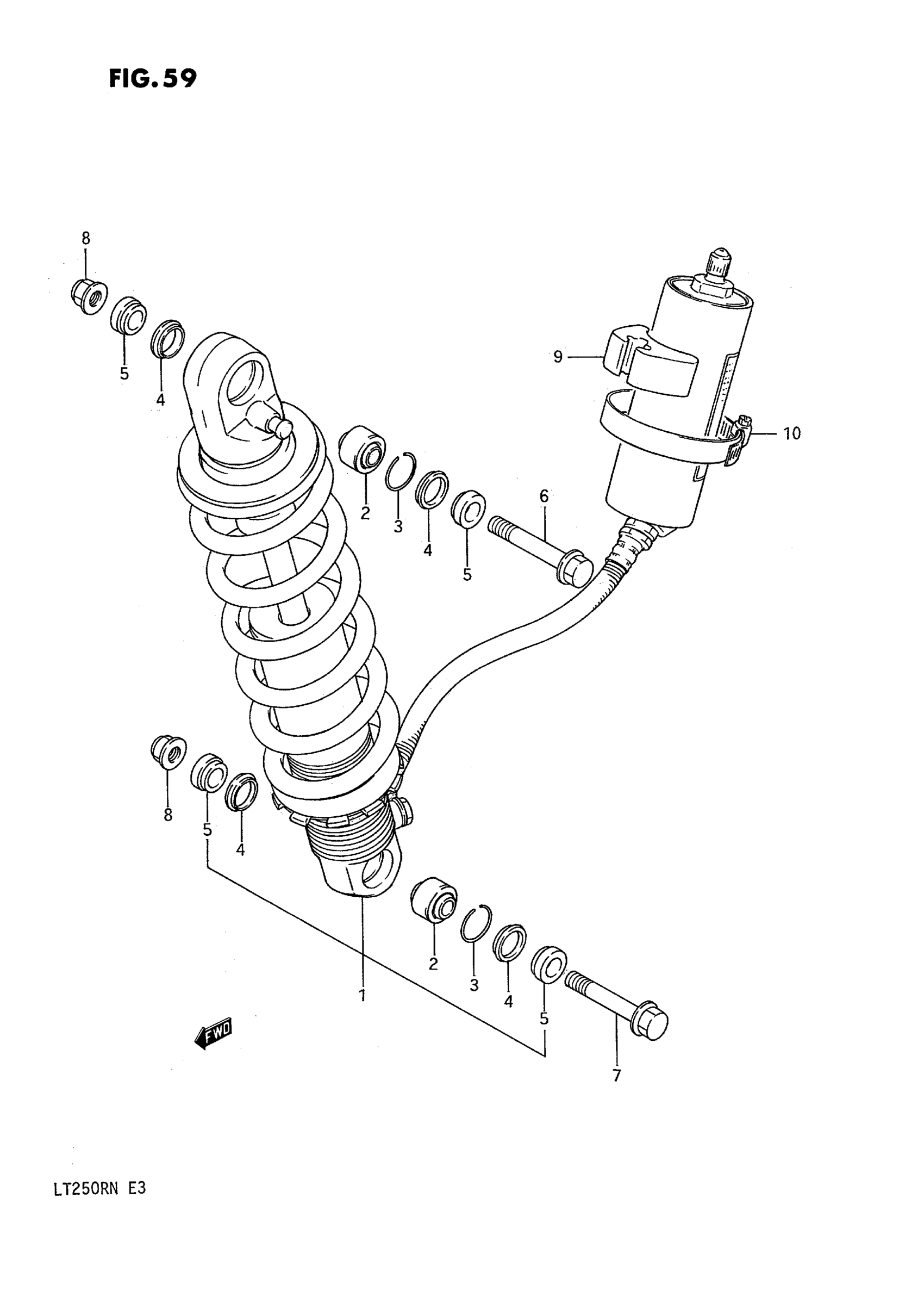

Suzuki LT250R (1992) REAR SHOCK ABSORBER (MODEL F/G) Diagram

#

Description

Price

1

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL F

62100-19A00-163

Unavailable

1

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL G; Includes Item(s) 2 - 5

62100-19A10-163

Unavailable

2

BEARING, REAR (10x24x14.5) This part replaces 62175-43400.

62175-00B00

$57.58

3

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$2.06

4

SEAL, DUST

62226-14520

Unavailable

5

COLLAR

62684-14520

Unavailable

6

BOLT, UPPER

09103-10064

$4.29

7

BOLT, LOWER

09103-10040

$5.43

8

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21

9

CUSHION, TANK

62331-19A00

Unavailable

10

CLAMP, TANK This part replaces 09402-95501.

09402-95502

$21.60
