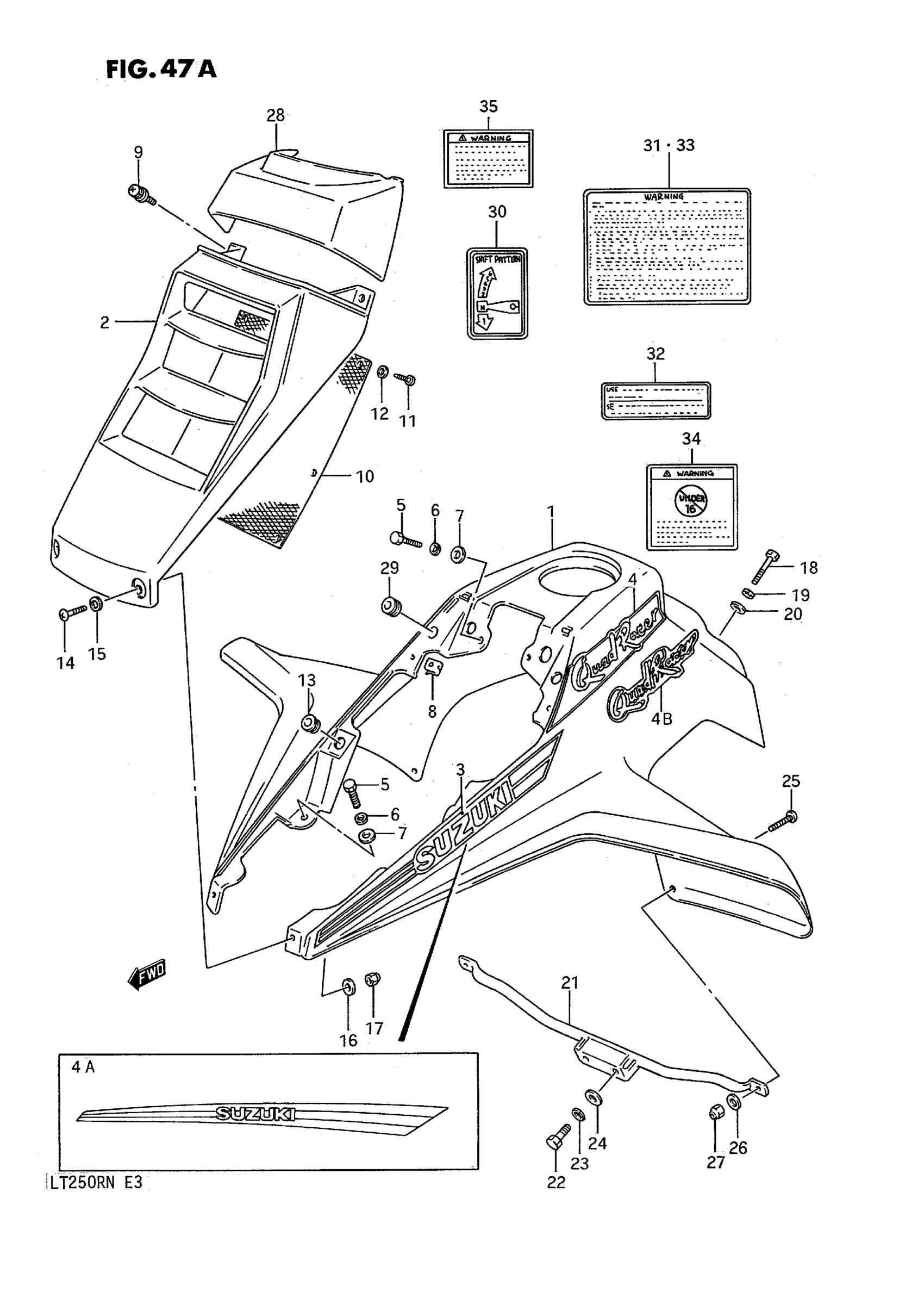

Suzuki LT250R (1992) FRONT FENDER (MODEL K/L) Diagram

#

Description
Price

1

FENDER, FRONT (YELLOW)

53111-19A00-25Y

Unavailable

2

FENDER, CENTER (BLUE)

53118-19A00-19F

Unavailable

3

TAPE SET, RH | MODEL K

68150-01C30-2SE

Unavailable

3

TAPE SET, LH | MODEL K

68150-01C40-2SE

Unavailable

4

EMBLEM, FRONT FENDER RH | MODEL K

68151-01C00-2SF

Unavailable

4

EMBLEM, FRONT FENDER LH | MODEL K

68151-01C10-2SF

$25.50

4A

TAPE SET, RH | MODEL L

68150-01C50-3RM

Unavailable

4A

TAPE SET, LH | MODEL L

68150-01C60-3RM

Unavailable

4B

EMBLEM, "Q.R" | MODEL L

68151-01C20-9SE

Unavailable

5

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

6

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.83

7

WASHER This part replaces 09160-06006.

09160-06084

$1.77

8

NUT

53141-19A00

$3.97

9

SCREW, FENDER CENTER

09138-06026

$2.22

10

EXPAND, METAL LATCH

53151-19A00

Unavailable

11

SCREW This part replaces 03212-04107.

03211-0410B

$0.73

12

WASHER (4.5X16X1.2) This part replaces 09160-04008.

09160-04026

$1.86

13

CUSHION

09320-08018

$2.80

14

SCREW, CENTER FENDER FRONT

09136-06081

$2.28

15

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.15

16

WASHER This part replaces 09160-06006.

09160-06084

$1.77

17

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

18

BOLT This part replaces 01107-06356.

01500-0635A

$2.21

19

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

20

.WASHER This part replaces 08322-21066.

08322-0106B

$2.24

21

BRACE, FRONT FENDER

53210-01C00

Unavailable

22

PLUG, DRAIN This part replaces 01107-08166.

01500-0816B

$2.50

23

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.83

24

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.43

25

SCREW This part replaces 02142-06164.

02142-0616A

$1.37

26

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.15

27

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

28

COVER, RADIATOR CAP (BLUE)

53119-19A00-19F

Unavailable

29

CUSHION

09320-08018

$2.80

30

LABEL, GEAR SHIFT

68392-01C00

Unavailable

31

PLATE, CAUTION | TYPE K

68366-22A30-8JR

Unavailable

32

LABEL,WARNING This part replaces 68367-41300.

68367-41301

Unavailable

33

LABEL, WARNING MAIN | TYPE L This part replaces 68366-25C00.

68366-20B50

Unavailable

34

LABEL, WARNING

68367-25C00

Unavailable

35

LABEL, WARNING

68367-04620

Unavailable
