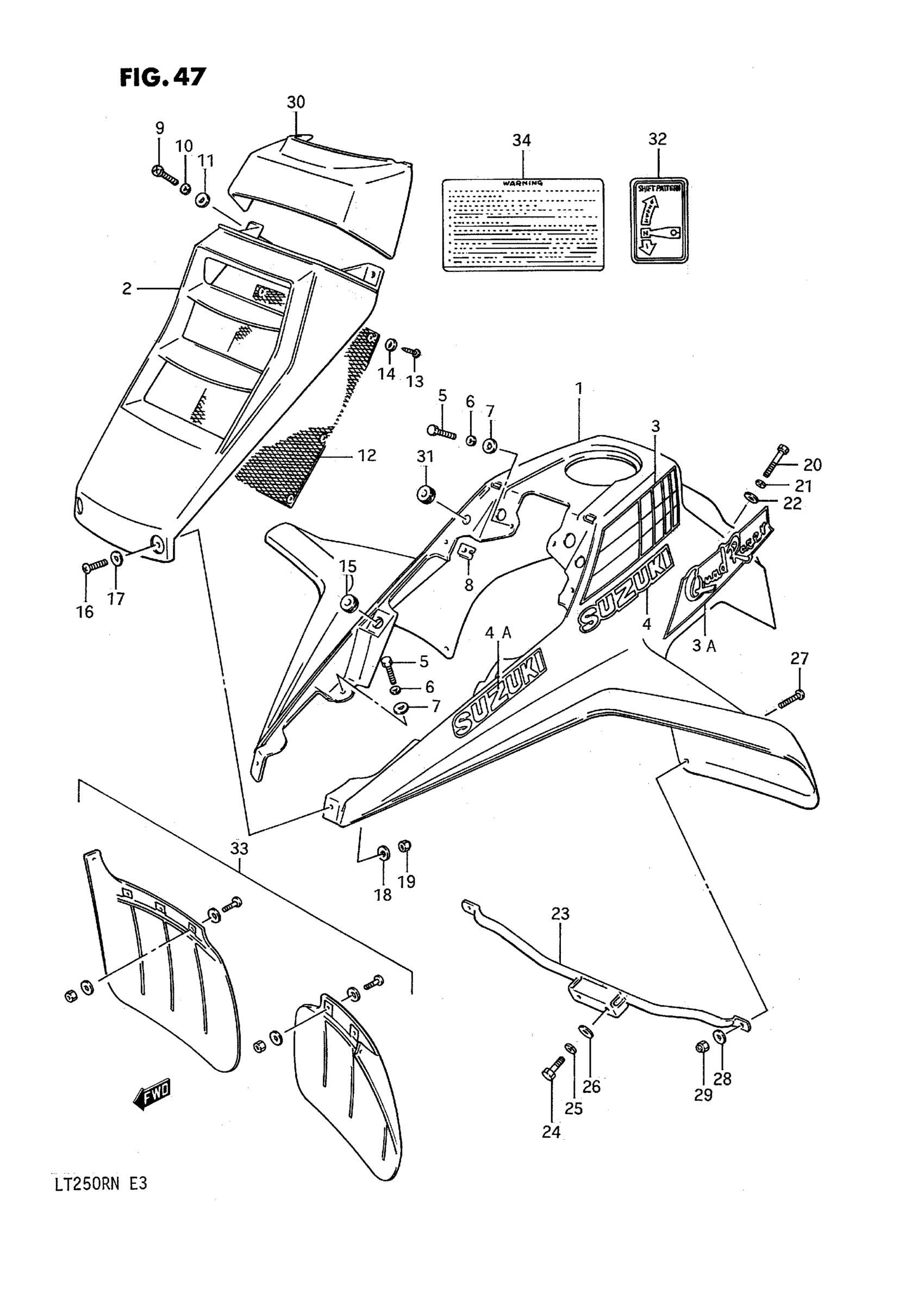

Suzuki LT250R (1992) FRONT FENDER (MODEL H/J) Diagram

#

Description
Price

1

FENDER, FRONT (YELLOW)

53111-19A00-25Y

Unavailable

2

FENDER, CENTER (BLUE)

53118-19A00-19F

Unavailable

3

TAPE SET | MODEL H

68150-01C00-9BR

Unavailable

3A

TAPE SET | MODEL J

68150-01C20-9BR

Unavailable

4

EMBLEM | MODEL H This part replaces 68111-24500-9BS.

68111-40210-64D

Unavailable

4A

EMBLEM,SUZUKI | MODEL J This part replaces 68111-01C20-9BS.

68111-01C21-9BS

Unavailable

5

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

6

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.83

7

WASHER This part replaces 09160-06006.

09160-06084

$1.77

8

NUT

53141-19A00

$3.97

9

SCREW This part replaces 02112-06166.

02112-0616A

$1.43

10

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

11

WASHER This part replaces 09160-06006.

09160-06084

$1.77

12

EXPAND, METAL LATCH

53151-19A00

Unavailable

13

SCREW This part replaces 03212-04107.

03211-0410B

$0.73

14

WASHER (4.5X16X1.2) This part replaces 09160-04008.

09160-04026

$1.86

15

CUSHION

09320-08018

$2.80

16

SCREW This part replaces 02142-06164.

02142-0616A

$1.37

17

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.15

18

WASHER This part replaces 09160-06006.

09160-06084

$1.77

19

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

20

BOLT This part replaces 01107-06356.

01500-0635A

$2.21

21

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

22

.WASHER This part replaces 08322-21066.

08322-0106B

$2.24

23

BRACE, FRONT FENDER

53210-01C00

Unavailable

24

PLUG, DRAIN This part replaces 01107-08166.

01500-0816B

$2.50

25

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.83

26

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.43

27

SCREW This part replaces 02142-06164.

02142-0616A

$1.37

28

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.15

29

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

30

COVER, RADIATOR CAP (BLUE)

53119-19A00-19F

Unavailable

31

CUSHION

09320-08018

$2.80

32

LABEL, GEAR SHIFT

68392-01C00

Unavailable

33

MUD FLAP SET | OPT

53300-24810

Unavailable

34

LABEL, WARNING

68366-22A30-8JR

Unavailable
