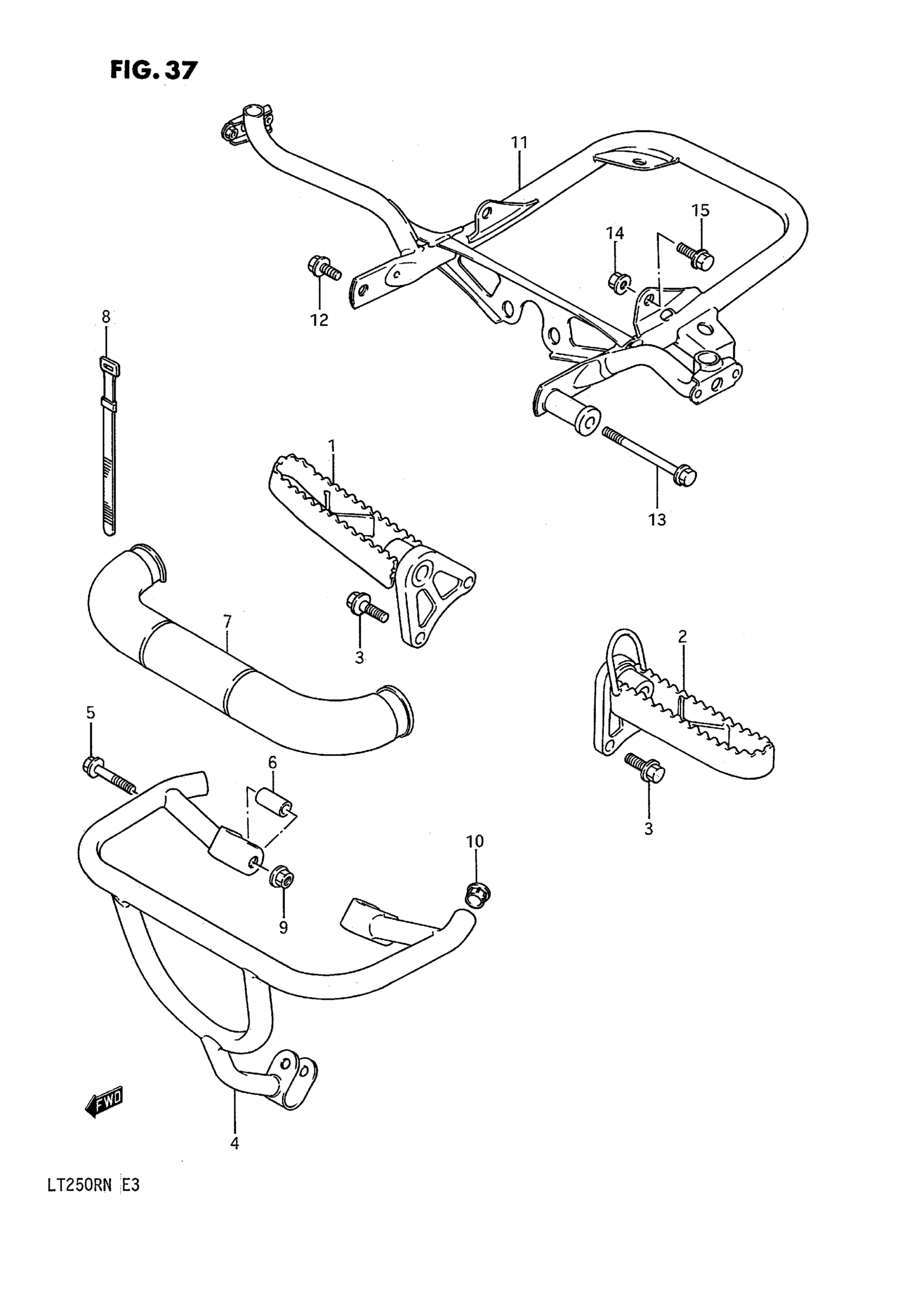

Suzuki LT250R (1992) FOOTREST (MODEL H/J/K/L) Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH (BLUE)

43510-01C00-19F

Unavailable

2

BAR, FRONT FOOTREST LH (BLUE)

43520-01C00-19F

Unavailable

3

BOLT

09103-10037

Unavailable

4

GRIP, FRONT | MODEL H/J This part replaces 43990-01C00.

43990-19A00

Unavailable

4

GRIP, FRONT | MODEL K/L

43990-01C10

Unavailable

5

BOLT, MUF SPRT,RR This part replaces 01517-08457.

01550-08457

$2.63

6

SPACER (8.2X12.5X23.5) This part replaces 09180-08129.

09180-08227

$2.07

7

PAD | MODEL H/J

43998-19A10

Unavailable

8

CLAMP | MODEL H/J

09407-18401

$1.86

9

NUT

08319-31087

$2.31

10

CAP, FRONT GRIP | MODEL K/L

43978-25C00

Unavailable

11

GRIP, REAR This part replaces 43980-01C00.

43980-01C10

Unavailable

12

BOLT M8X16 This part replaces 01517-08167.

01550-08167

$2.80

13

BOLT, FRONT LH | MODEL H/J

09103-08112

$9.15

13

BOLT (8X90) | MODEL K/L This part replaces 09103-08140.

09103-08112

$9.15

14

NUT

08319-31087

$2.31

15

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

$2.73
